10-3-3 Uploading Programs

Expansion Memory Unit
EEPROM
Indicator
UPLOAD+DM Button
224

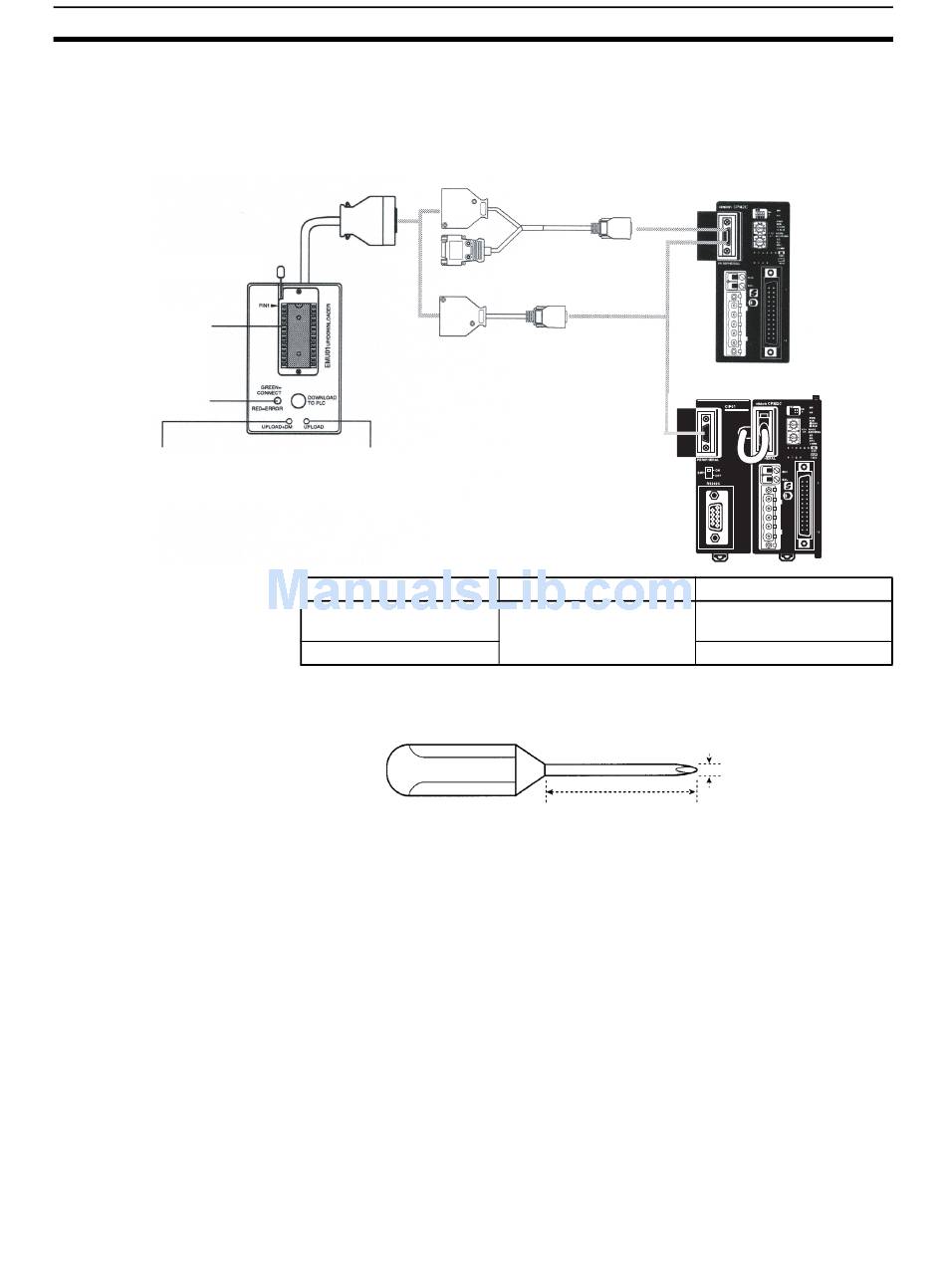

Ladder programs and the contents of data memory can be uploaded to the
EEPROM using the following procedure. The buttons used will determine
whether the contents of data memory are uploaded or not.
UPLOAD Button
Button
Ladder program and
expansion instructions
DM6144 to 6655
Note Use a Phillips screwdriver or other tool with a diameter of 3.0 mm max. and a
blade length of 10 mm min. to press the upload button.
Uploading is possible even if the PC is in RUN or MONITOR mode.
CPM2C-CN111
CS1W-CN114
CPM2C-CIF01-V1
UPLOAD + DM
Read from PC to
EEPROM.
10 mm min.
Section 10-3
CPM2C-S
CPM2C-S
UPLOAD
Read from PC to
EEPROM.
Not affected.
3.0 dia. max.
