Wiring and Connections

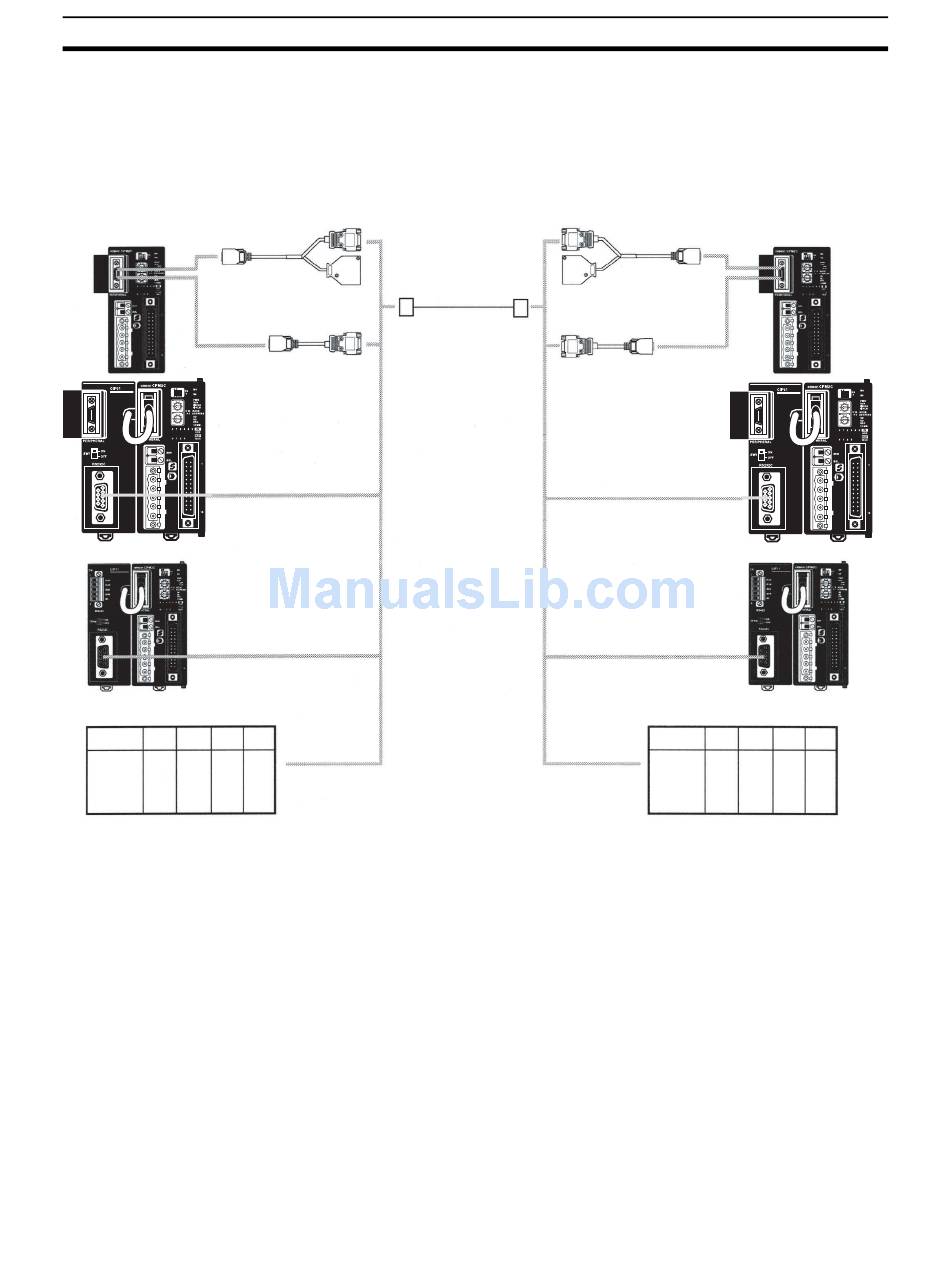

3-4-12 One-to-one PC Link Connections

RS-232C port (D-sub 9-pin)
1:1 Link Master
CPM2C-S CPU Unit
CPM2C-CIF01-V1
CPM2C-CIF11
OMRON PC (CQM1H, CQM1, CPM1,
CPM1A, CPM2A, CPM2C, SRM1(-V2),
C200HS, or C200HX/HG/HE)
82
A CPM2C-S can be linked to another CPM2C-S, a CQM1H, CQM1, CPM1,
CPM1A, CPM2A, CPM2C, SRM1(-V2), C200HS, or C200HX/HG/HE PC. The
PC must be connected using the communications port as an RS-232C port
(not as a peripheral port).
CPM2C-CN111
(0.1 m)
Connecting Cable
XW2Z-200T (2 m)
XW2Z-500T (5 m)
CS1W-CN118
(0.1 m)
Note Even though the peripheral port on the CPM2C-CIF01 can output RS-232C,
this port cannot be used for one-to-one link communications.
RS-232C port (D-sub 9-pin)
CPM2C-CN111 (0.1 m)
CS1W-CN118 (0.1 m)
CPM2C-CIF01-V1
CPM2C-CIF11
OMRON PC (CQM1H, CQM1, CPM1,
CPM1A, CPM2A, CPM2C, SRM1(-V2),
C200HS, or C200HX/HG/HE)
Section 3-4
1:1 Link Slave
CPM2C-S CPU Unit
