CPM2C-S Features and Functions

1-1

CPM2C-S Features and Functions

1-1-1

CPM2C-S Features

Communications
port
CompoBus/S
interface
2

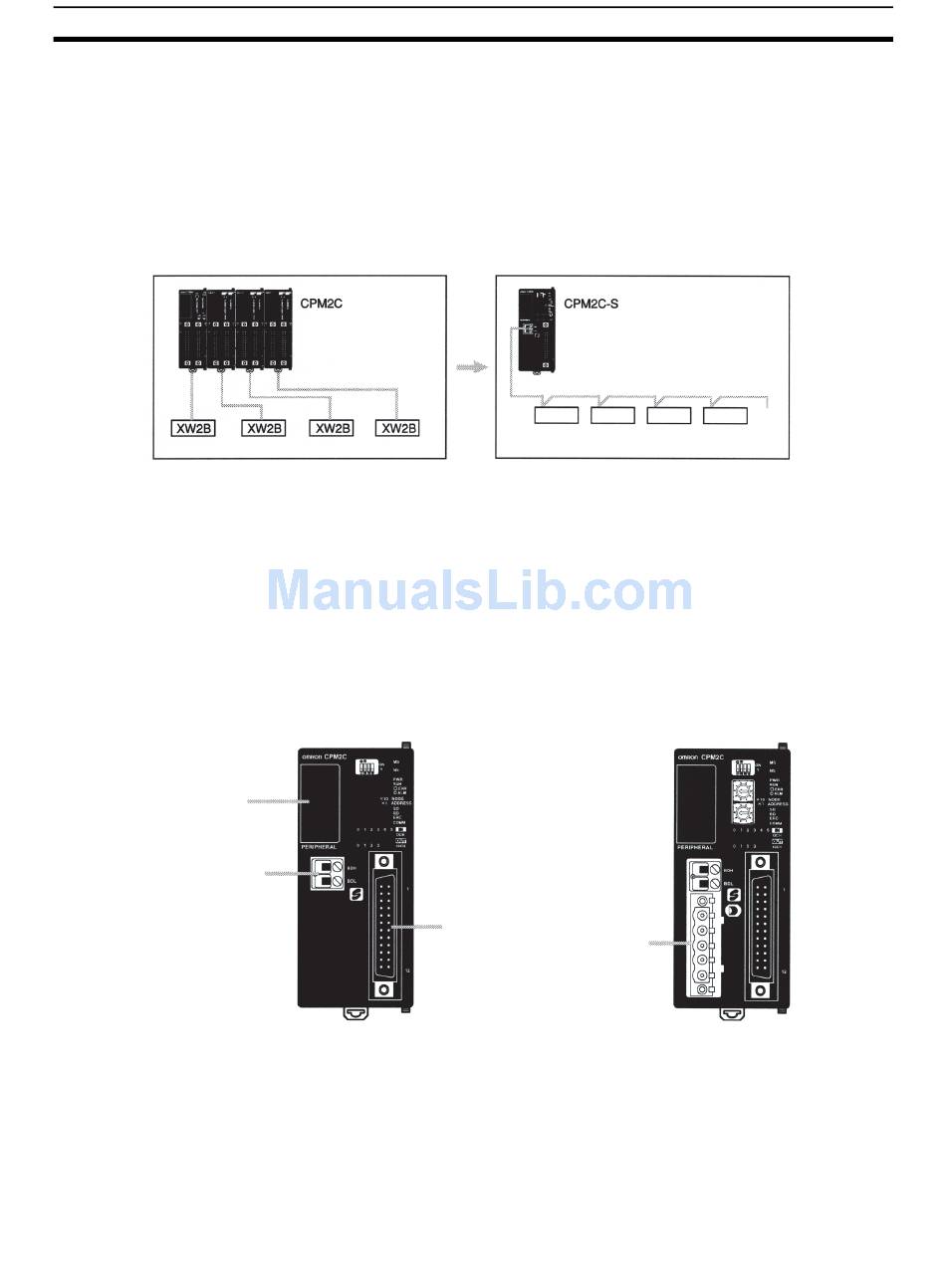

The CPM2C-S PCs are compact CPM2C PCs that have been equipped with
the functions of a CompoBus/S Master. The CPM2C-S incorporates a variety
of special features just like the CPM2C, including synchronized pulse control,
interrupt inputs, pulse outputs, and a clock function.
• The standard CompoBus/S interface increases the PC's I/O capacity,
reduces wiring, and saves space.
• The CPM2C-S is a compact Unit, so it can be incorporated into almost
any machine. Furthermore, the CPM2C-S CPU Unit can be mounted in
any direction.
• The CPM2C-S100C-DRT and CPM2C-S110C-DRT are also equipped
with DeviceNet Slave functions to provide distributed control through a
DeviceNet connection with a host PC.
• The CPM2C-S itself can handle a wide range of machine control applica-
tions. In addition, the CPM2C-S is capable of communications with
devices such as personal computers and OMRON Programmable Termi-
nals so it is ideal to use to expand or upgrade existing systems.
CPM2C-S100C
CPM2C-S110C
I/O connector
• The CPM2C-S CPU Unit has a total of 10 I/O points: 6 inputs and 4 tran-
sistor outputs. Up to 3 CPM2C-series Expansion I/O Units can be con-
nected for a maximum I/O capacity of 106 I/O points with three 32-point
Expansion I/O Units. It is possible to connect up to 362 I/O points by add-
ing Slaves through the CompoBus/S system.
• The communications port can be used simultaneously as two ports:
Peripheral and RS-232C. The peripheral port supports Programming
Devices, Host Link, and no-protocol communications. The RS-232C port
CompoBus/S Slaves
CPM2C-S100C-DRT
CPM2C-S110C-DRT
DeviceNet
interface
