Programming Console Operations
Original Program
00100 00101
00201 00102
Insertion
1,2,3...
Deletion
1,2,3...

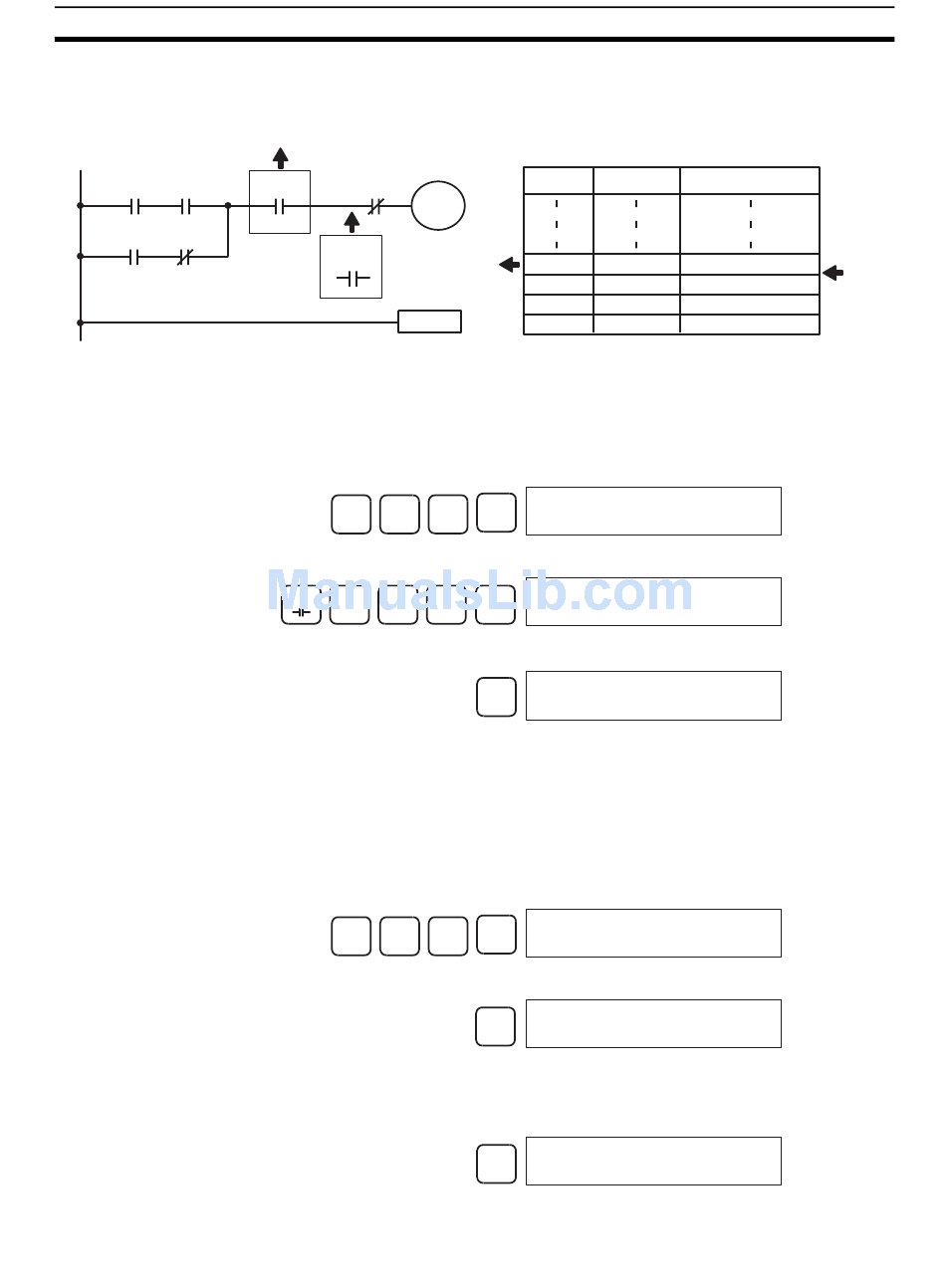

To demonstrate this operation, an IR 00105 NO condition will be inserted at
program address 00206 and an IR 00103 NO condition deleted from address
00205, as shown in the following diagram.
00103 00104
01000
Delete
00105
Insert
END(01)
Follow the procedure below to insert the IR 00105 NO condition at address
00206.
1. Press the CLR Key to bring up the initial display.
2. Input the address where the NO condition will be inserted and press the
Down Arrow Key. It is not necessary to input leading zeroes.
C A
2 0 6
3. Input the new instruction and press the INS Key.
B A F
AND
1 0 5
4. Press the Down Arrow Key to insert the new instruction.
Note For instructions that require more operands (such as set values), in-
put the operands and then press the WRITE Key.
Follow the procedure below to delete the IR 00103 NO condition at address
00205.
1. Press the CLR Key to bring up the initial display.
2. Input the address where the NO condition will be deleted and press the
Down Arrow Key. It is not necessary to input leading zeroes.
C A F
2 0 5
3. Press the DEL Key.
4. Press the Up Arrow Key to delete the specified instruction.
If the instruction has more operands, the operands will be deleted automat-
ically with the instruction.
Address Instruction
Delete 00205 AND
00206 AND NOT
00207 OUT
00208 END(01)
00206READ
AND NOT
↓
00206INSERT?
AND
INS
00207INSERT END
AND NOT
↓
00205READ
AND
↓
00205DELETE?
AND
DEL
00205 DELETE END
AND
↑
Section 8-2
Operands
00103
Insert
00104
01000
-
00104
00105
00104
00103
00103
00105
