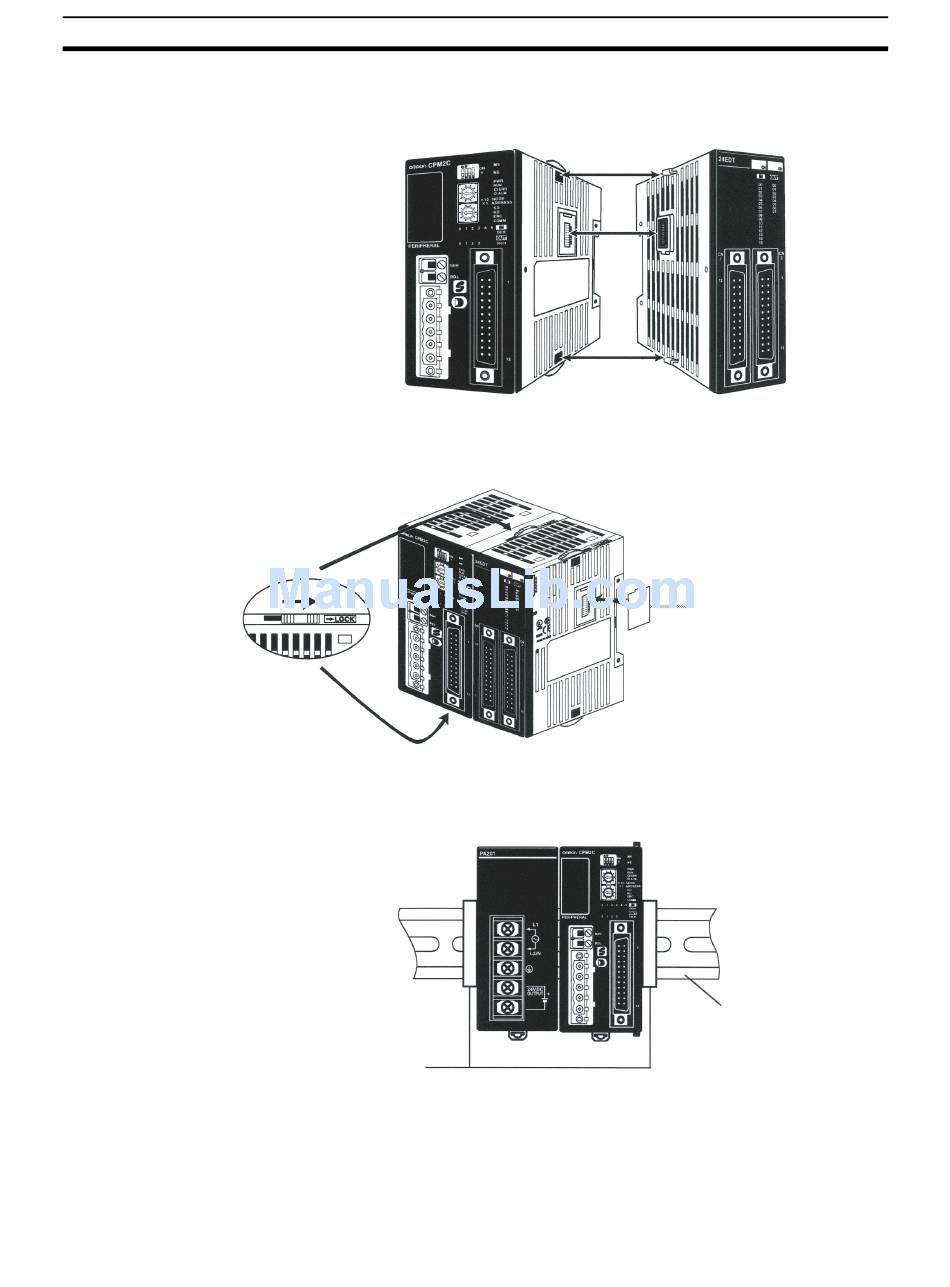

Installing the CPM2C-S
Slide to lock
Units together.
3-3-2

CPM2C-S Installation

58
2. Align the Unit and CPU Unit (or previous Expansion I/O Unit or Expansion
Unit) so that the catches (top and bottom) on the connectors fit together.
Press the Units together to connect them.
3. Lock the Units together by closing the locks (top and bottom) on the CPU
Unit (or previous Expansion I/O Unit or Expansion Unit). Place the cover
(included with the CPU Unit) on the last Unit's expansion I/O connector.
The CPM2C-S can be installed on a 35-mm DIN track.
End Plates
(PFP-M)
Section 3-3
Expansion I/O
connector cover
DIN Track
PFP-100N (1 m)
PFP-50N (50 cm)
PFP-100N2 (1 m)
