Wiring and Connections
IBM PC/AT or
compatible
computer
IBM PC/AT or
compatible
computer

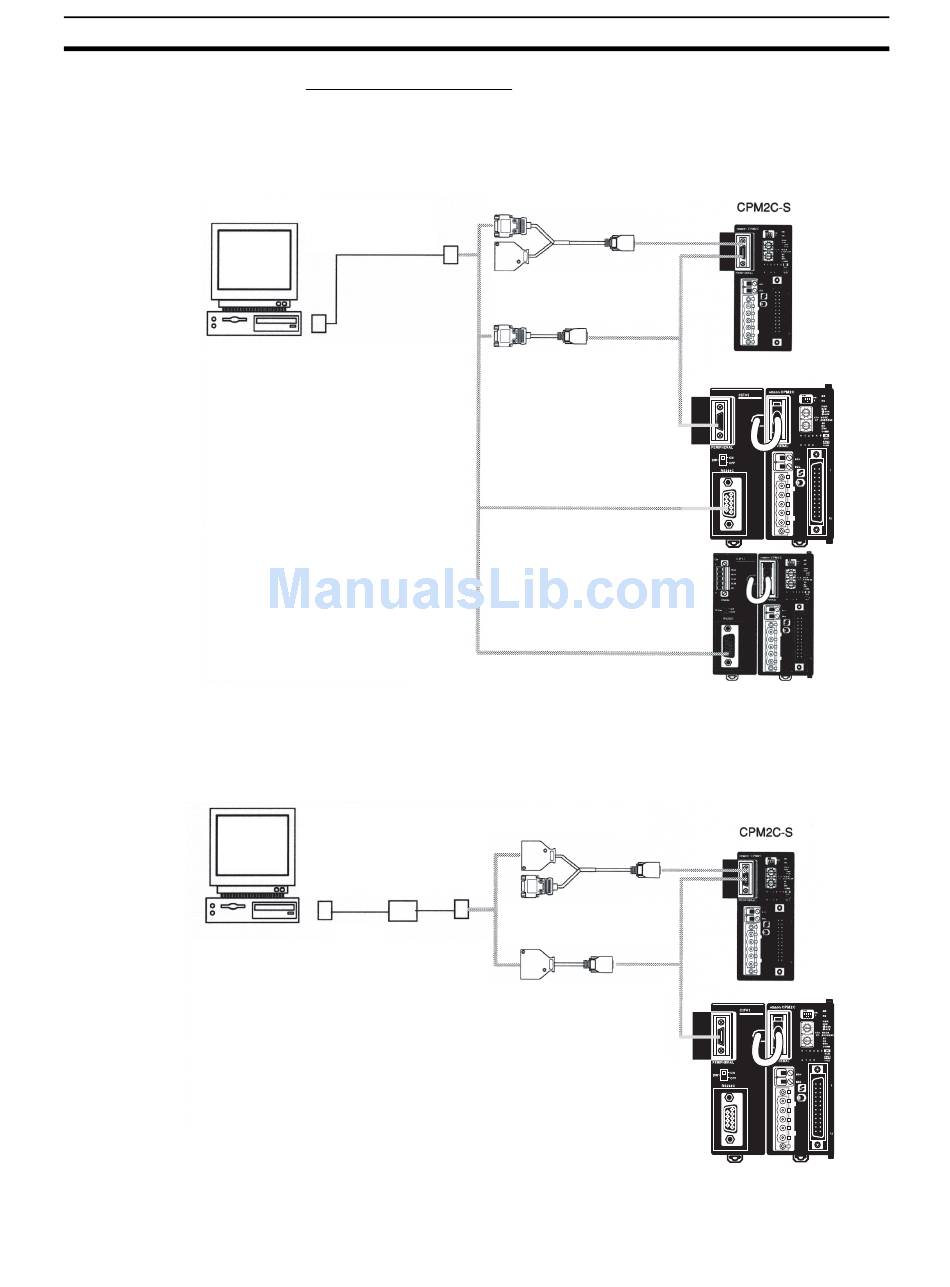

RS-232C Port Connection
A personal computer can be connected to the CPU Unit's RS-232C port with
an XW2Z-@00S or XW2Z-@00S-V Connecting Cable. The XW2Z-@00S
Cables have a D-sub 25-pin connector and the XW2Z-@00S-V Cables have a
D-sub 9-pin connector.
Connecting Cable
XW2Z-200S-V (2 m)
XW2Z-500S-V (5 m)
Peripheral Port Connection
A personal computer can be connected to the CPU Unit's communications
port through a CQM1-CIF02 RS-232C Adapter. The CQM1-CIF02 RS-232C
Adapter has a 9-pin connector.
CQM1-CIF02 (3.3 m)
RS-232C port (D-sub 9-pin)
CPM2C-CN111 (0.15 m)
CS1W-CN118 (0.1 m)
CPM2C-CIF01-V1
CPM2C-CIF11
Peripheral port
CPM2C-CN111 (0.15 m)
CS1W-CN114 (0.05 m)
CPM2C-CIF01-V1
Section 3-4
79
