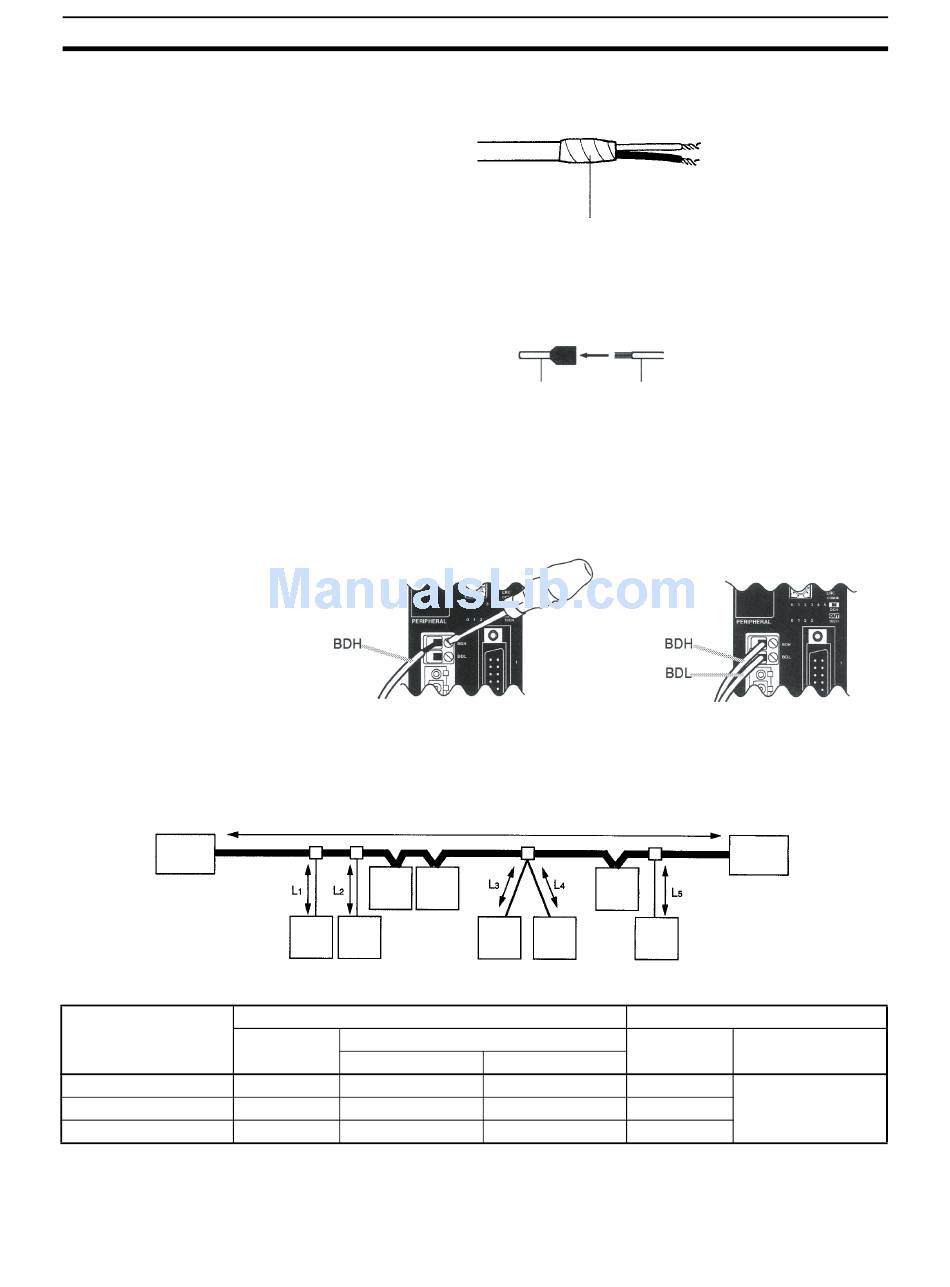

Omron CPM2C-S100C Operation Manual page 98

Wiring and Connections
Maximum Transmission
Line Length
Master
Branch
line length
Total branch line length = L
Item
Trunk line length 100 m max.
Branch line length 3 m max.
Total branch line length 50 m max.
76
Note When VCTF cable is being used, cover the end of the cable sheathing with
electrical tape or heat-shrink tubing as shown in the following diagram.
2. Crimp pin terminals on the stripped ends of the communications cable and
secure the terminal and wire with electrical tape or heat-shrink tubing.
Note a) We recommend the following pin terminals.
b) We recommend the following crimper:
Weidmüller PZ1.5 Crimper (part number 900599)
c) The Weidmüller 901851 Sleeve cannot be used.
3. Insert the pin terminals into the CompoBus/S terminal block on the front of
the CPM2C-S and tighten the locking screw.
The maximum lengths of the trunk line, branch lines, and total transmission
line length depend on the communications mode and the kind of transmission
line (flat cable or VCTF cable) being used. The maximum lengths are further
restricted if flat cable is being used with more than 16 Slaves.
Trunk line length
Slave Slave
Slave Slave
+ L + L
1 2
Max. length in high-speed mode
2-core VCTF Flat cable or 4-core VCTF cable
cable
Up to 16 Slaves
100 m max.
3 m max.
50 m max.
Secure the cable sheathing with
electrical tape or heat-shrink tubing.
Weidmüller
046290 Sleeve
Slave
Slave
Slave
+ L + L
3 4 5
17 to 32 Slaves
30 m max.
3 m max.
30 m max.
Section 3-4
Signal wire
Terminator
Max. length in long-distance mode
2-core VCTF Flat cable or 4-core
cable VCTF cable
500 m max. Free branching
Total wire length:
6 m max.
200 m max.
120 m max.
