System Configurations
24 I/O Points
24 I/O points
32 I/O points
8 input points
16 input points
8 output points
16 output points
24 I/O Points
24 I/O points
32 I/O points
8 input points
16 input points
8 output points
16 output points

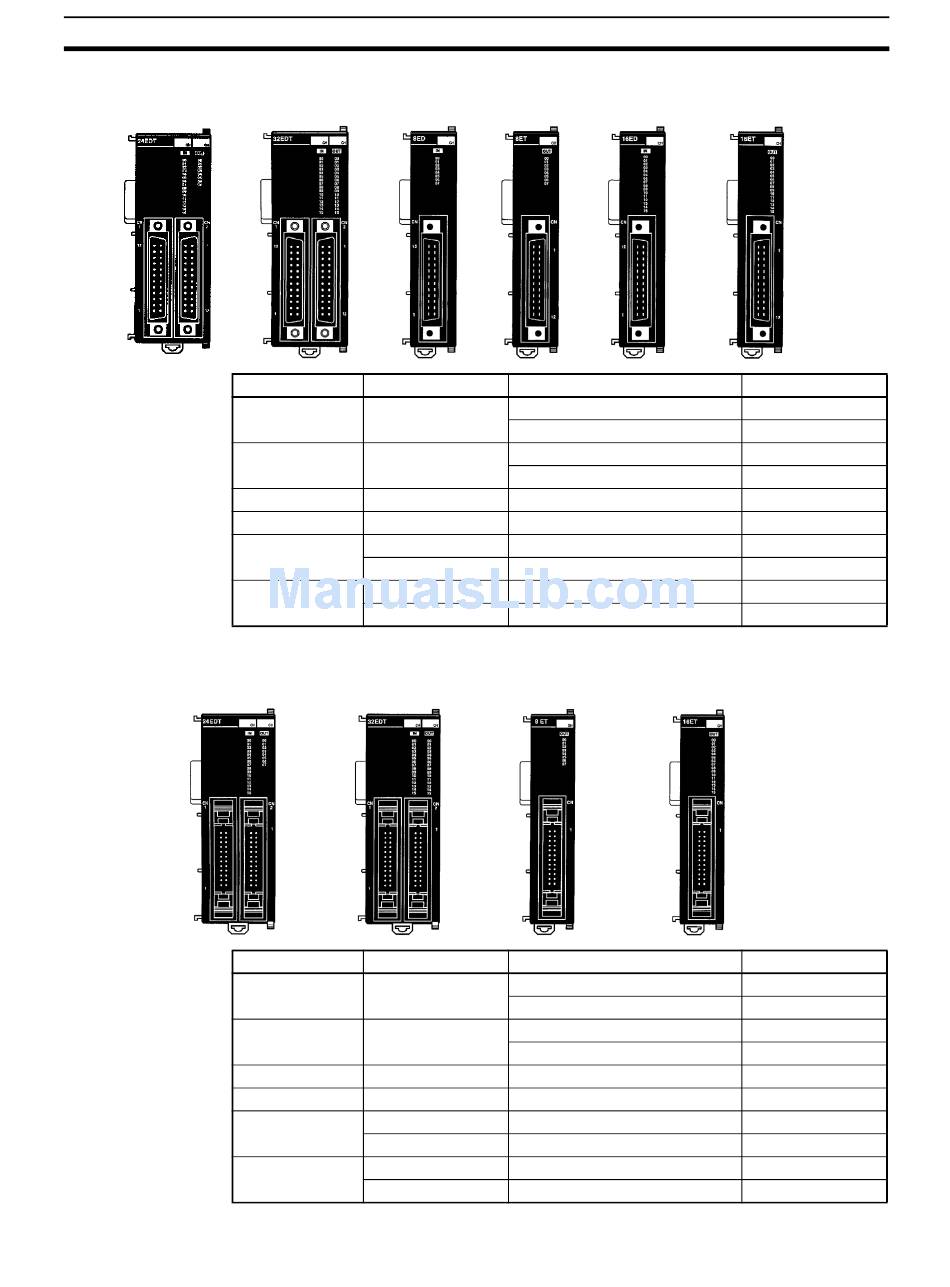

Units with Transistor Outputs via Fujitsu-compatible Connector
32 I/O Points 8 Input Points
Unit I/O Inputs
16 inputs (24 VDC) 8 transistor outputs (sinking)
16 inputs (24 VDC) 16 transistor outputs (sinking)
8 inputs (24 VDC)
16 inputs (24 VDC) ---
---
---
---
---
Units with Transistor Outputs via MIL Connector
32 I/O Points
Unit I/O Inputs
16 inputs (24 VDC) 8 transistor outputs (sinking)
16 inputs (24 VDC) 16 transistor outputs (sinking)
8 inputs (24 VDC)
16 inputs (24 VDC) ---
---
---
---
---
8 Output Points 16 Input Points
Outputs
8 transistor outputs (sourcing)
16 transistor outputs (sourcing)
---
8 transistor outputs (sinking)
8 transistor outputs (sourcing)
16 transistor outputs (sinking)
16 transistor outputs (sourcing)
8 Input or 16 Input or
8 Output Points 16 Output Points
Outputs
8 transistor outputs (sourcing)
16 transistor outputs (sourcing)
---
8 transistor outputs (sinking)
8 transistor outputs (sourcing)
16 transistor outputs (sinking)
16 transistor outputs (sourcing)
Section 1-2
16 Output Points
Model
CPM2C-24EDTC
CPM2C-24EDT1C
CPM2C-32EDTC
CPM2C-32EDT1C
CPM2C-8EDC
CPM2C-16EDC
CPM2C-8ETC
CPM2C-8ET1C
CPM2C-16ETC
CPM2C-16ET1C
Model
CPM2C-24EDTM
CPM2C-24EDT1M
CPM2C-32EDTM
CPM2C-32EDT1M
CPM2C-8EDM
CPM2C-16EDM
CPM2C-8ETM
CPM2C-8ET1M
CPM2C-16ETM
CPM2C-16ET1M
