The Programming Console

00000 00003
00001
00002
HR 0000
4-4

The Programming Console

4-4-1

The Keyboard

White: Numeric Keys
Red: CLR Key
Yellow: Operation Keys
Gray: Instruction and Data
Area Keys
58

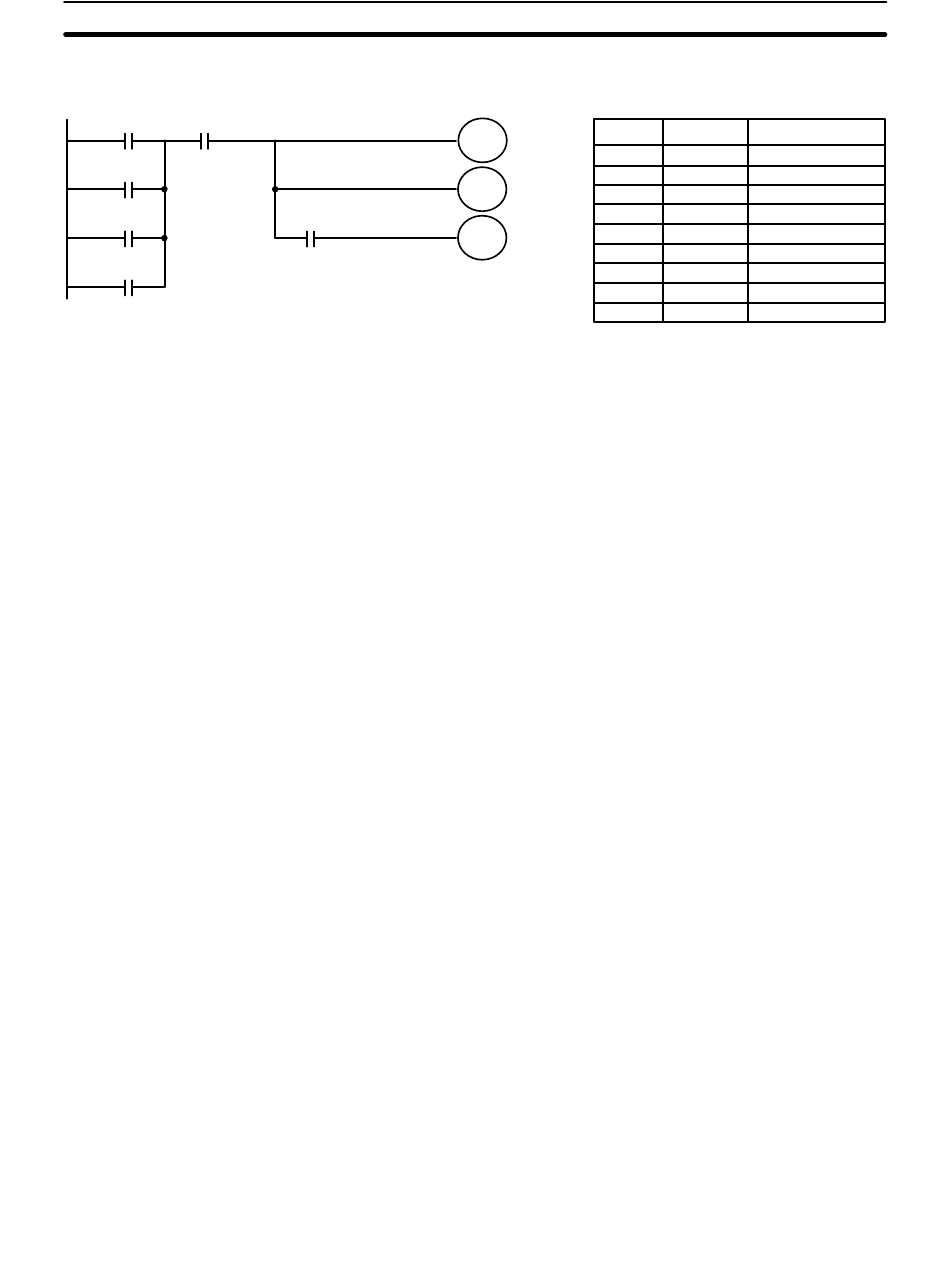

the instruction line. In the following example, the last instruction line contains
one more condition that corresponds to an AND with IR 00004.
HR 0001
00500
00004
00506
Once a program has been written, it must be input into the PC. This can be
done in graphic (ladder diagram) form using a GPC,a FIT, or LSS. The most
common way of inputting a program, however, is through a Programming
Console using mnemonic code. This and the next section describe the Pro-
gramming Console and the operation necessary to prepare for program in-
put. 4-6 Inputting, Modifying, and Checking the Program describes actual
procedures for inputting the program into memory.
Depending on the model of Programming Console used, it is either con-
nected to the CPU via a Programming Console Adapter and Connecting Ca-
ble or it is mounted directly to the CPU. If you are connecting to a C2000H
Duplex System, you can connect to either the active or passive CPU, but
writing operations to memory areas (including program writing to Program
Memory) and changes to data in memory areas will not be possible unless
connected to the active CPU.
The keyboard of the Programming Console is functionally divided by key
color into the following four areas:
The ten white keys are used to input numeric program data such as program
addresses, data area addresses, and operand values. The numeric keys are
also used in combination with the function key (FUN) to enter instructions
with function codes.
The CLR key clears the display and cancels current Programming Console
operations. It is also used when you key in the password at the beginning of
programming operations. Any Programming Console operation can be can-
celled by pressing the CLR key, although the CLR key may have to be
pressed two or three times to cancel the operation and clear the display.
The yellow keys are used for writing and correcting programs. Detailed ex-
planations of their functions are given later in this section.
Except for the SHIFT key on the upper right, the gray keys are used to input
instructions and designate data area prefixes when inputting or changing a
program. The SHIFT key is similar to the shift key of a typewriter, and is used
to alter the function of the next key pressed. (It is not necessary to hold the
SHIFT key down; just press it once and then press the key to be used with
it.)
Section 4-4
Address Instruction
00000 LD
00001 OR
00002 OR
00003 OR HR
00004 AND
00005 OUT HR
00006 OUT
00007 AND
00008 OUT
Operands
00000
00001
00002
0000
00003
0001
00500
00004
00506
