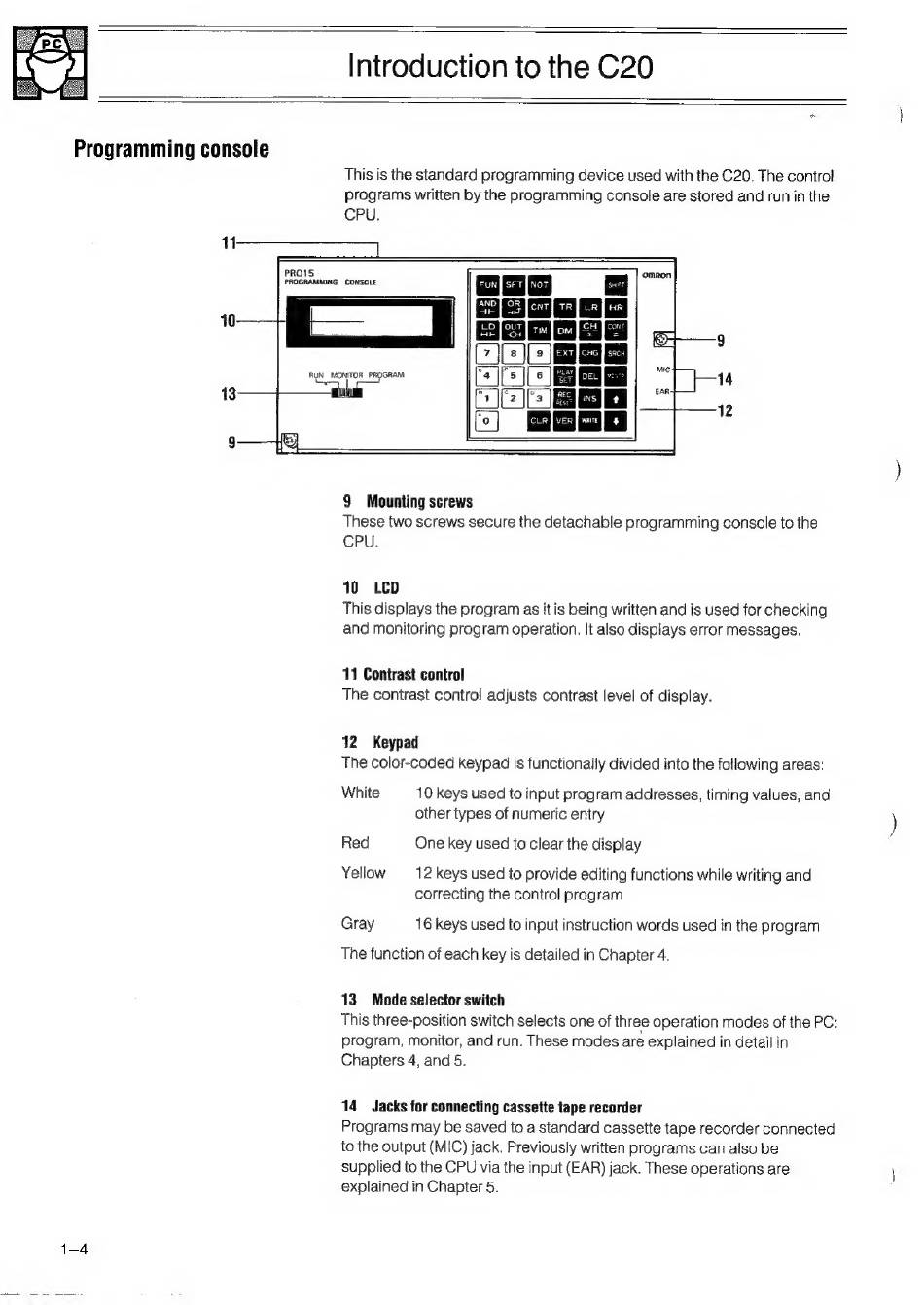

Introduction to the C20
Programming console
This is the standard programming device used with the C20. The control
programs written by the programming console are stored and run in the
CPU.
PROIS
PROGRAMMING CONSOLE
9 Mounting screws
These two screws secure the detachable programming console to the
CPU.
10 LCD
This displays the program as it is being written and is used for checking
and monitoring program operation. It also displays error messages.
11 Contrast control
The contrast control adjusts contrast level of display.
12 Keypad
The color-coded keypad is functionally divided into the following areas:
White 10 keys used to input program addresses, timing values, and
other types of numeric entry
Red One key used to clear the display
Yellow 12 keys used to provide editing functions while writing and
correcting the control program
Gray 16 keys used to input instruction words used in the program
The function of each key is detailed in Chapter 4.
13 Mode selector switch
This three-position switch selects one of three operation modes of the PC:
program, monitor, and run. These modes are explained in detail in
Chapters 4, and 5.
14 Jacks for connecting cassette tape recorder
