Remote I/O Communications
Allocating Read/Write
Areas with the DeviceNet
Configurator
1,2,3...
120
An OMRON DeviceNet Configurator (version 2.0 or higher) can be used to
specify the DeviceNet Read and Write areas. Contact your OMRON repre-
sentative if you are using a Configurator version earlier than 2.0. (The version
can be displayed in the Configurator's Help menu.)
1. Connect the DeviceNet Configurator to the DeviceNet network and switch
to online operation.
2. Turn ON the CPM2C-S power supply and put the PC in PROGRAM mode.
3. Click the Upload Button.
4. Double-click the CPM2C-S to be set on the DeviceNet Configurator's de-
vice list.

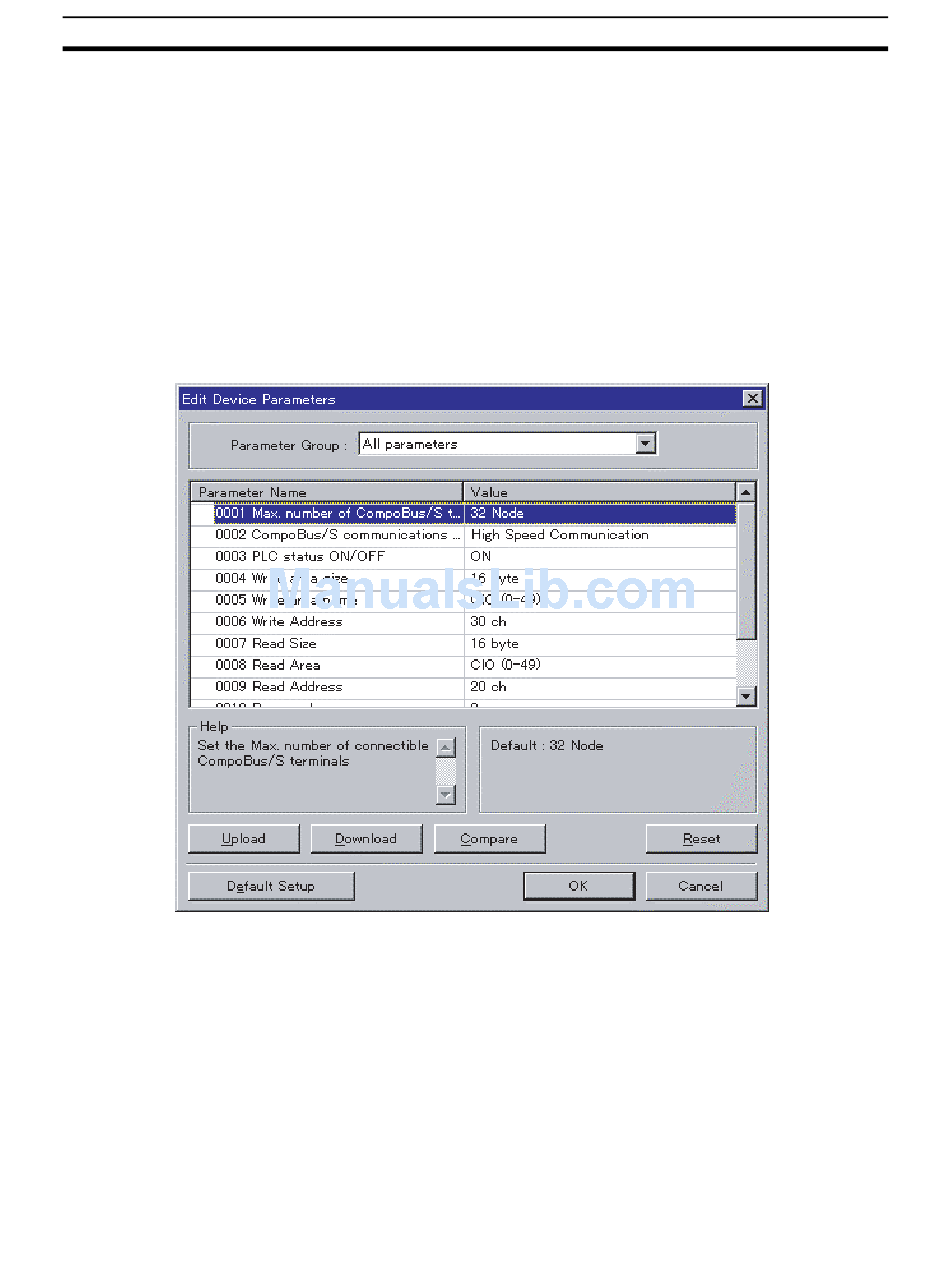

5. The DeviceNet Parameters Window will be displayed to edit the read and
write area parameters. Double-click the read/write area parameters to be
changed.
