HPE FlexNetwork 5510 HI Series Configuration Manual page 49

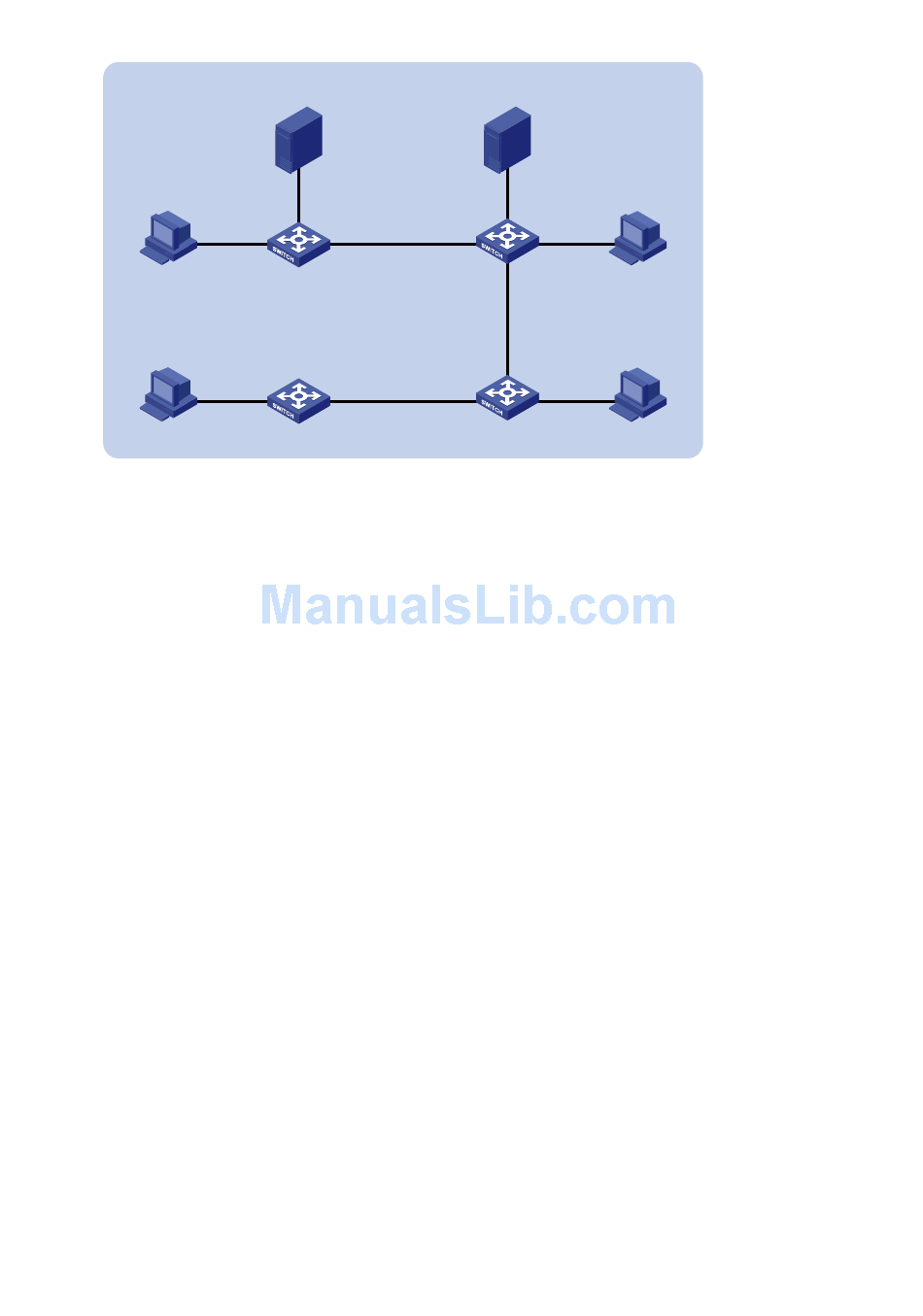

Figure 16 Network diagram
VLAN 100
Receiver
Host A
Receiver
Host D
Configuration procedure
Configure Switch A:
1.
# Enable the IGMP snooping feature.
<SwitchA> system-view
[SwitchA] igmp-snooping
[SwitchA-igmp-snooping] quit
# Create VLAN 100, and assign GigabitEthernet 1/0/1 through GigabitEthernet 1/0/3 to the
VLAN.
[SwitchA] vlan 100
[SwitchA-vlan100] port gigabitethernet 1/0/1 to gigabitethernet 1/0/3
# Enable IGMP snooping, and enable dropping unknown multicast data for VLAN 100.
[SwitchA-vlan100] igmp-snooping enable
[SwitchA-vlan100] igmp-snooping drop-unknown
# Configure Switch A as the IGMP snooping querier.
[SwitchA-vlan100] igmp-snooping querier
[SwitchA-vlan100] quit
# In VLAN 100, specify 192.168.1.1 as the source IP address of IGMP general queries.
[SwitchA-vlan100] igmp-snooping general-query source-ip 192.168.1.1
# In VLAN 100, specify 192.168.1.1 as the source IP address of IGMP group-specific queries.
[SwitchA-vlan100] igmp-snooping special-query source-ip 192.168.1.1
[SwitchA-vlan100] quit
Configure Switch B:
2.
# Enable the IGMP snooping feature.
<SwitchB> system-view
[SwitchB] igmp-snooping
[SwitchB-igmp-snooping] quit
# Create VLAN 100, and assign GigabitEthernet 1/0/1 through GigabitEthernet 1/0/4 to the
VLAN.
[SwitchB] vlan 100
Source 1
192.168.1.10/24
GE1/0/2
GE1/0/1 GE1/0/3
Switch A
Querier
GE1/0/1 GE1/0/2
Switch D
Source 2
192.168.1.20/24
GE1/0/2
GE1/0/3 GE1/0/1
GE1/0/4
Switch B
GE1/0/2
GE1/0/3 GE1/0/1
Switch C
39
Receiver
Host B
Receiver
Host C
