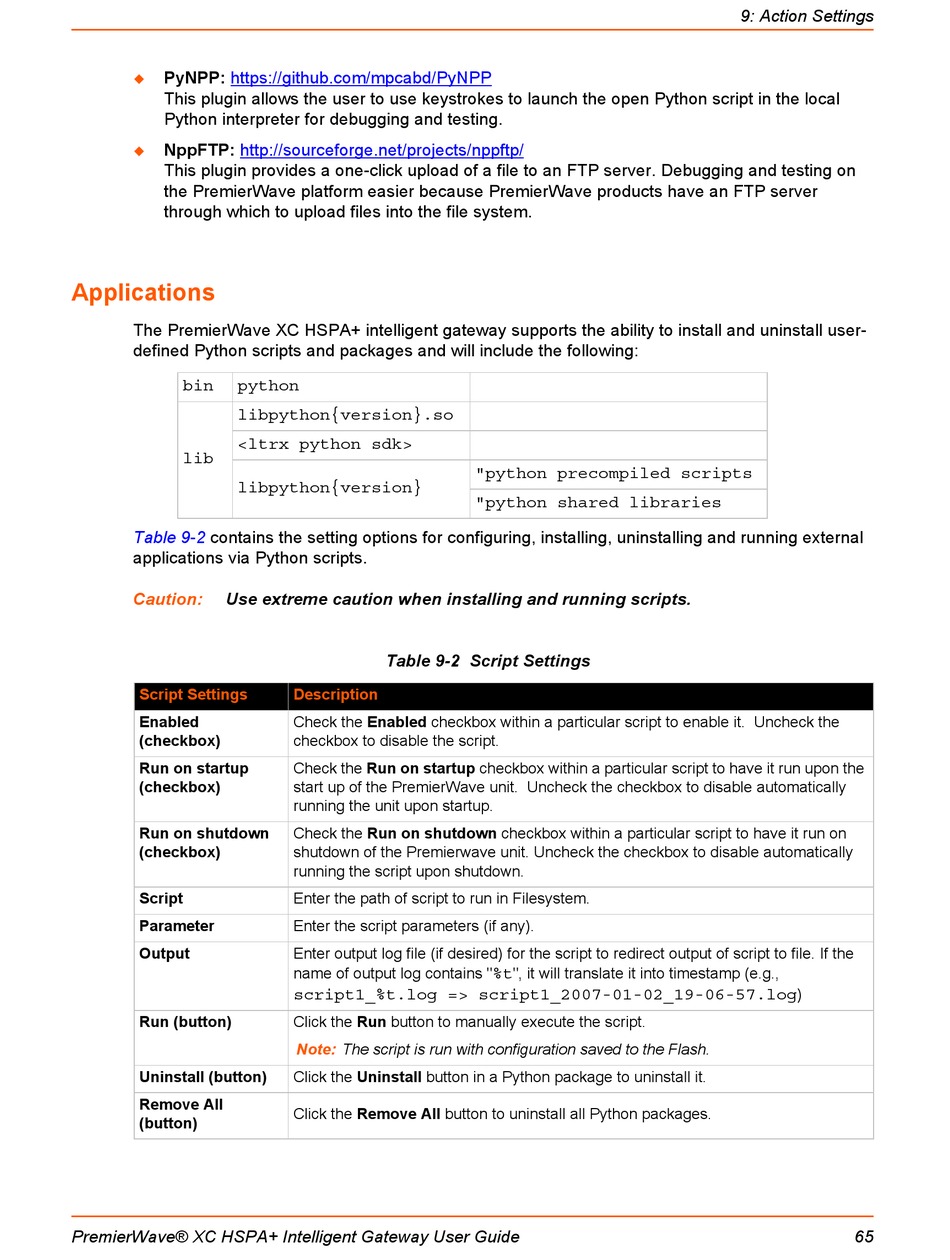

Applications; Table 9-2 Script Settings - Lantronix PREMIERWAVE XC HSPA+ User Manual

PyNPP: https://github.com/mpcabd/PyNPP

This plugin allows the user to use keystrokes to launch the open Python script in the local
Python interpreter for debugging and testing.
NppFTP: http://sourceforge.net/projects/nppftp/

This plugin provides a one-click upload of a file to an FTP server. Debugging and testing on
the PremierWave platform easier because PremierWave products have an FTP server
through which to upload files into the file system.

Applications

The PremierWave XC HSPA+ intelligent gateway supports the ability to install and uninstall user-
defined Python scripts and packages and will include the following:
bin python
libpython{version}.so
<ltrx python sdk>
lib
libpython{version}
Table 9-2 contains the setting options for configuring, installing, uninstalling and running external
applications via Python scripts.
Caution: Use extreme caution when installing and running scripts.
Script Settings
Enabled
(checkbox)
Run on startup
(checkbox)
Run on shutdown
(checkbox)
Script
Parameter
Output
Run (button)
Uninstall (button)
Remove All
(button)
PremierWave® XC HSPA+ Intelligent Gateway User Guide

Table 9-2 Script Settings

Description
Check the Enabled checkbox within a particular script to enable it. Uncheck the
checkbox to disable the script.
Check the Run on startup checkbox within a particular script to have it run upon the
start up of the PremierWave unit. Uncheck the checkbox to disable automatically
running the unit upon startup.
Check the Run on shutdown checkbox within a particular script to have it run on
shutdown of the Premierwave unit. Uncheck the checkbox to disable automatically
running the script upon shutdown.
Enter the path of script to run in Filesystem.
Enter the script parameters (if any).
Enter output log file (if desired) for the script to redirect output of script to file. If the
name of output log contains "
script1_%t.log => script1_2007-01-02_19-06-57.log
Click the Run button to manually execute the script.
Note: The script is run with configuration saved to the Flash.
Click the Uninstall button in a Python package to uninstall it.
Click the Remove All button to uninstall all Python packages.
"python precompiled scripts
"python shared libraries
", it will translate it into timestamp (e.g.,
%t
9: Action Settings
)
65
