2. Remove the paper clip to release the button. The unit will continue the boot process restoring
it back to the original factory default settings.

Back Panel

On the PremierWave device is a Power Connector and RJ-45 Ethernet port as shown in
Figure 3-11.
Connector
Relay Output
Inputs

Installing the PremierWave XC HSPA+ Unit Device

Be sure to place or mount the device securely on a flat horizontal or vertical surface. The device
comes with brackets for mounting it, for example, on a wall. If using AC power, do not use outlets
controlled by a wall switch.
Observe the following guidelines when connecting the devices:
The PremierWave unit serial ports support RS-232/422/485.

Use a null modem cable to connect the serial port to another DTE device. Use a straight-

though (modem) cable to connect the serial port to a DCE device.
Connect your RJ-45 Ethernet cable to the RJ-45 port of the unit.

The PremierWave device supports a power range of 9 to 30 VDC.

PremierWave® XC HSPA+ Intelligent Gateway User Guide

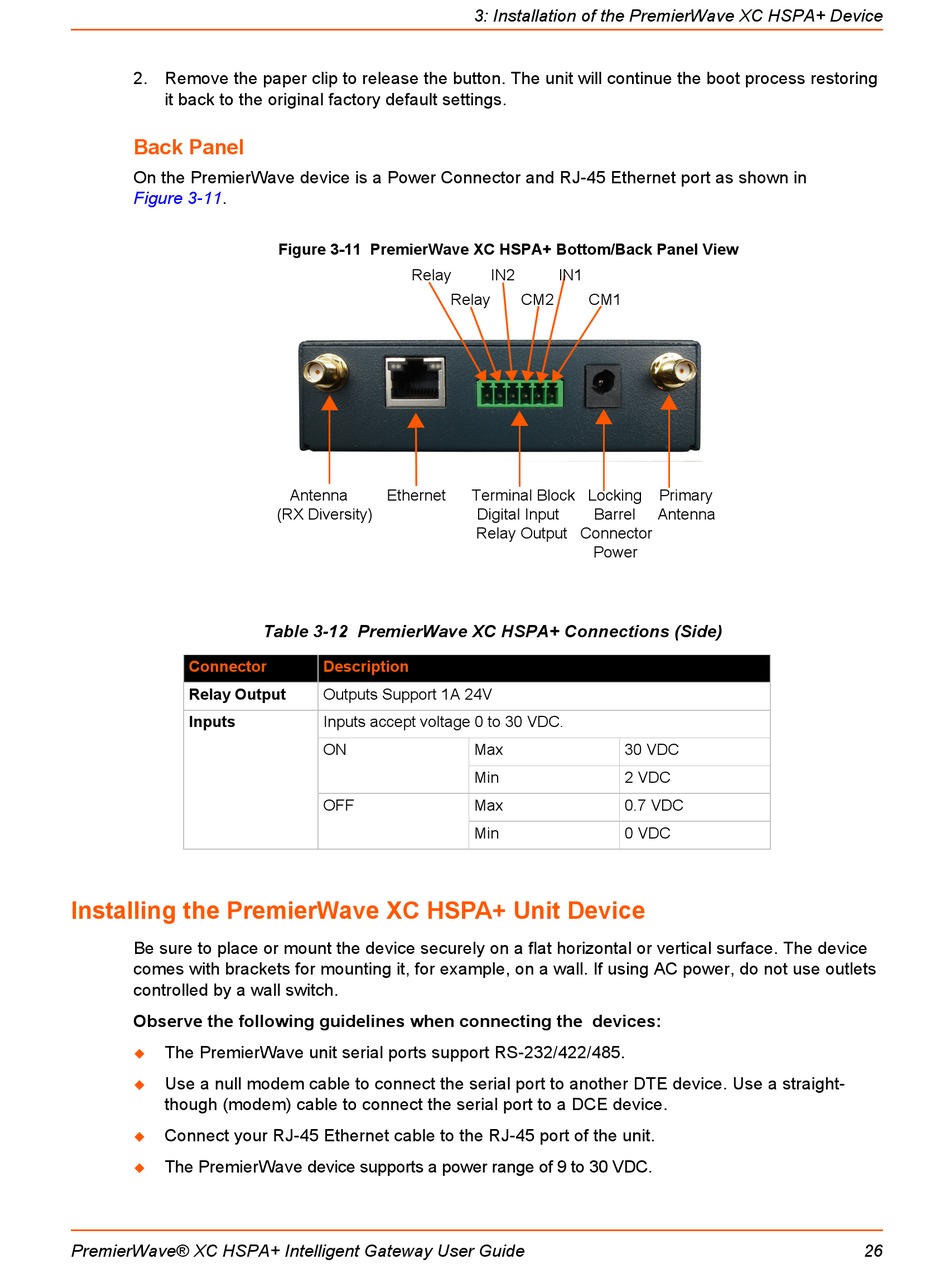

Figure 3-11 PremierWave XC HSPA+ Bottom/Back Panel View

Relay
Antenna Ethernet
(RX Diversity)

Table 3-12 PremierWave XC HSPA+ Connections (Side)

Description
Outputs Support 1A 24V
Inputs accept voltage 0 to 30 VDC.
ON
OFF
3: Installation of the PremierWave XC HSPA+ Device
IN2 IN1
Relay CM2 CM1
Terminal Block Locking
Digital Input Barrel
Relay Output Connector
Power
Max 30 VDC
Min 2 VDC
Max 0.7 VDC
Min 0 VDC
Primary
Antenna
