Routing Settings
State (RIP)
Version
Update Interval
Timeout Interval
GC Interval
State (OSPF)
Hello Interval
Dead Interval

To Configure Gateway Routing Protocol Settings

Using Web Manager
To modify gateway protocol settings, click

Routing Protocol.
Using the CLI
To enter the gateway command level: enable -> config -> gateway -> routing

protocols
Using XML
Include in your file: <configgroup name = "routing protocols">


Virtual IP

The PremierWave XC HSPA+ intelligent gateway allows the configuration of Virtual IP addresses.
Virtual IP is a means to map an externally visible IP address to LAN-side IP addresses.
PremierWave units will support creating up to three virtual IP address mappings by creating loop
back interfaces and publishing this information via the routing protocols.
Virtual IP Settings
Enabled (checkbox)
PremierWave® Intelligent Gateway User Guide

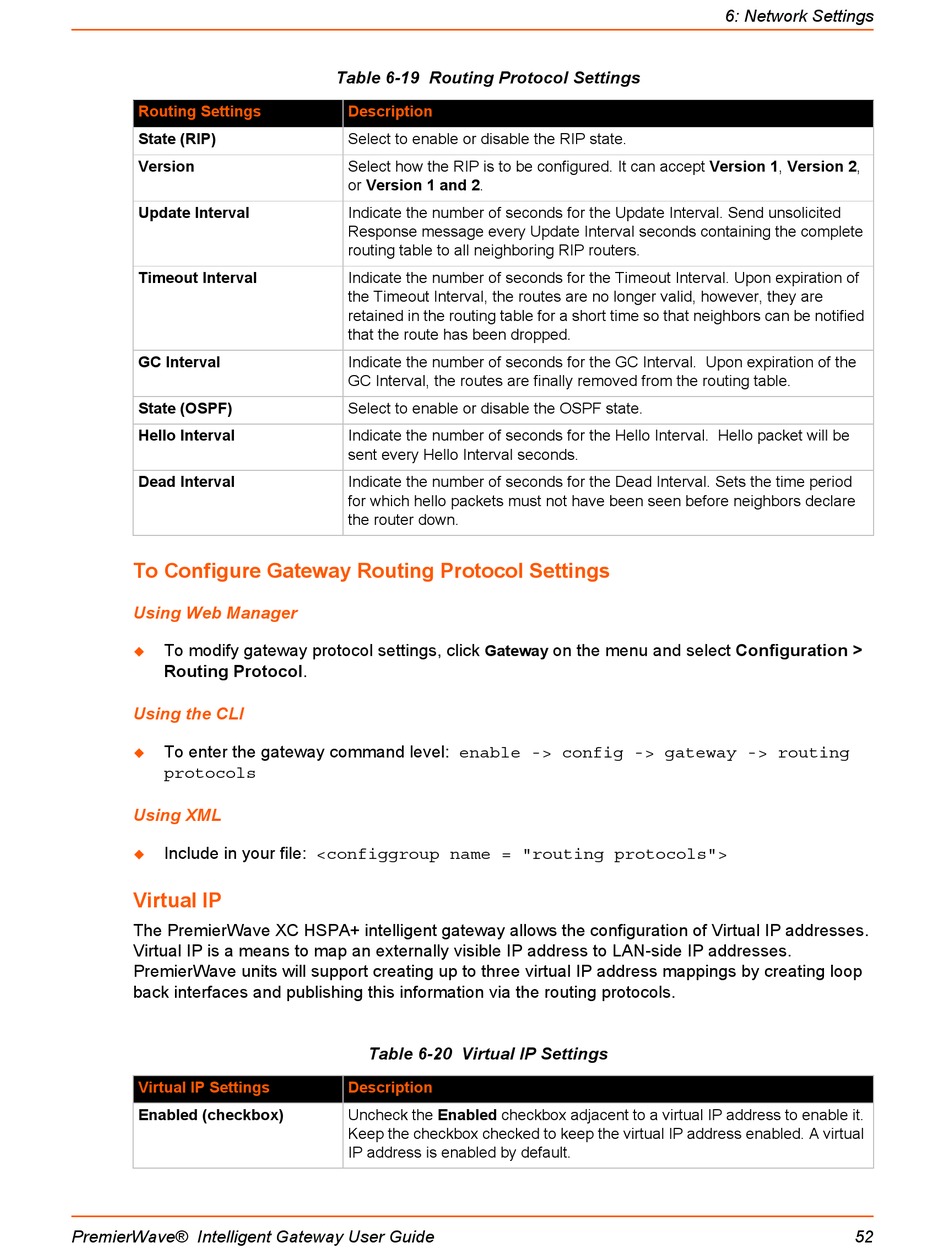

Table 6-19 Routing Protocol Settings

Description
Select to enable or disable the RIP state.
Select how the RIP is to be configured. It can accept Version 1, Version 2,
or Version 1 and 2.
Indicate the number of seconds for the Update Interval. Send unsolicited
Response message every Update Interval seconds containing the complete
routing table to all neighboring RIP routers.
Indicate the number of seconds for the Timeout Interval. Upon expiration of
the Timeout Interval, the routes are no longer valid, however, they are
retained in the routing table for a short time so that neighbors can be notified
that the route has been dropped.
Indicate the number of seconds for the GC Interval. Upon expiration of the
GC Interval, the routes are finally removed from the routing table.
Select to enable or disable the OSPF state.
Indicate the number of seconds for the Hello Interval. Hello packet will be
sent every Hello Interval seconds.
Indicate the number of seconds for the Dead Interval. Sets the time period
for which hello packets must not have been seen before neighbors declare
the router down.
Gateway

Table 6-20 Virtual IP Settings

Description
Uncheck the Enabled checkbox adjacent to a virtual IP address to enable it.
Keep the checkbox checked to keep the virtual IP address enabled. A virtual
IP address is enabled by default.
6: Network Settings
on the menu and select Configuration >
