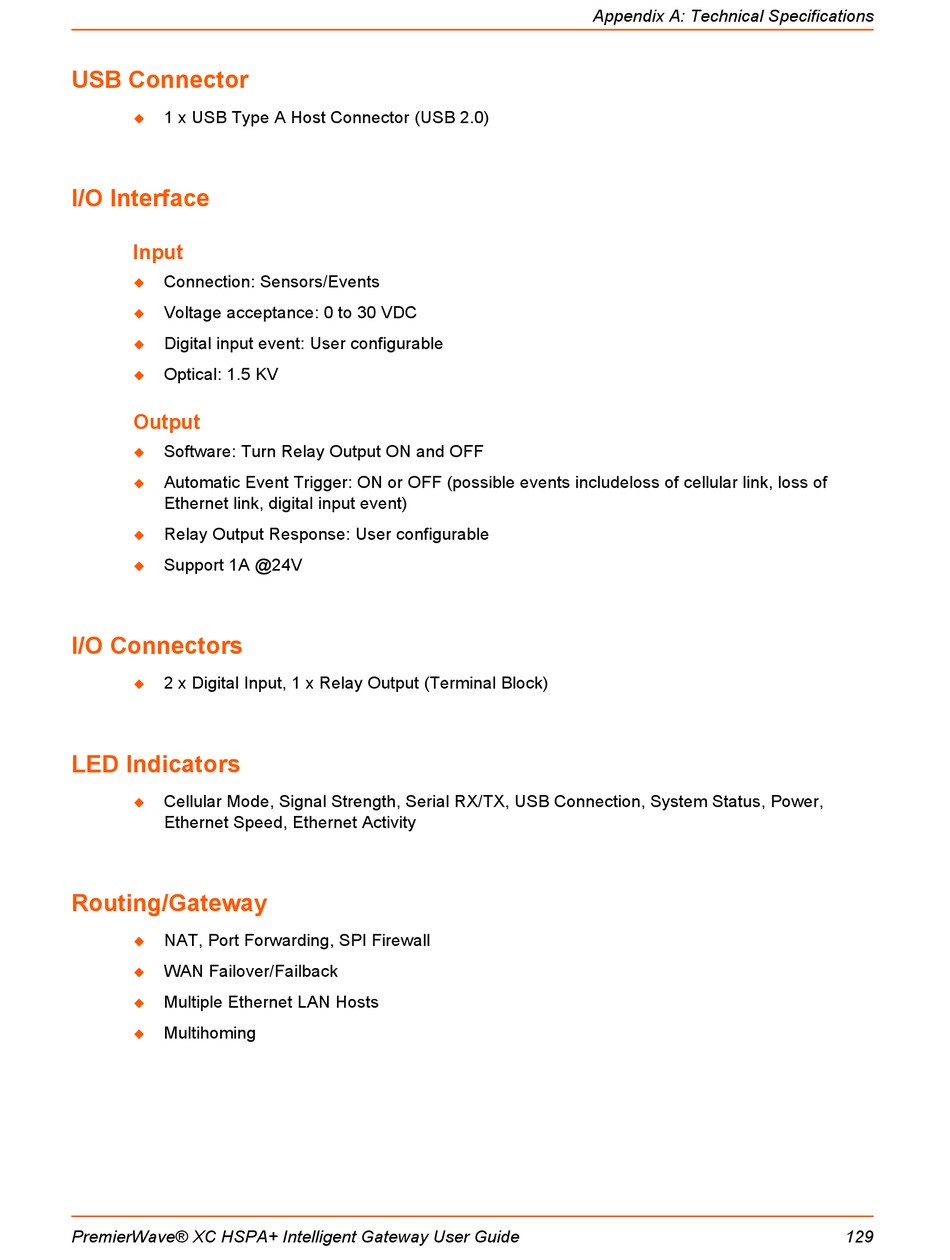

USB Connector

1 x USB Type A Host Connector (USB 2.0)


I/O Interface

Input

Connection: Sensors/Events

Voltage acceptance: 0 to 30 VDC

Digital input event: User configurable

Optical: 1.5 KV


Output

Software: Turn Relay Output ON and OFF

Automatic Event Trigger: ON or OFF (possible events includeloss of cellular link, loss of

Ethernet link, digital input event)
Relay Output Response: User configurable

Support 1A @24V


I/O Connectors

2 x Digital Input, 1 x Relay Output (Terminal Block)


LED Indicators

Cellular Mode, Signal Strength, Serial RX/TX, USB Connection, System Status, Power,

Ethernet Speed, Ethernet Activity

Routing/Gateway

NAT, Port Forwarding, SPI Firewall

WAN Failover/Failback

Multiple Ethernet LAN Hosts

Multihoming

