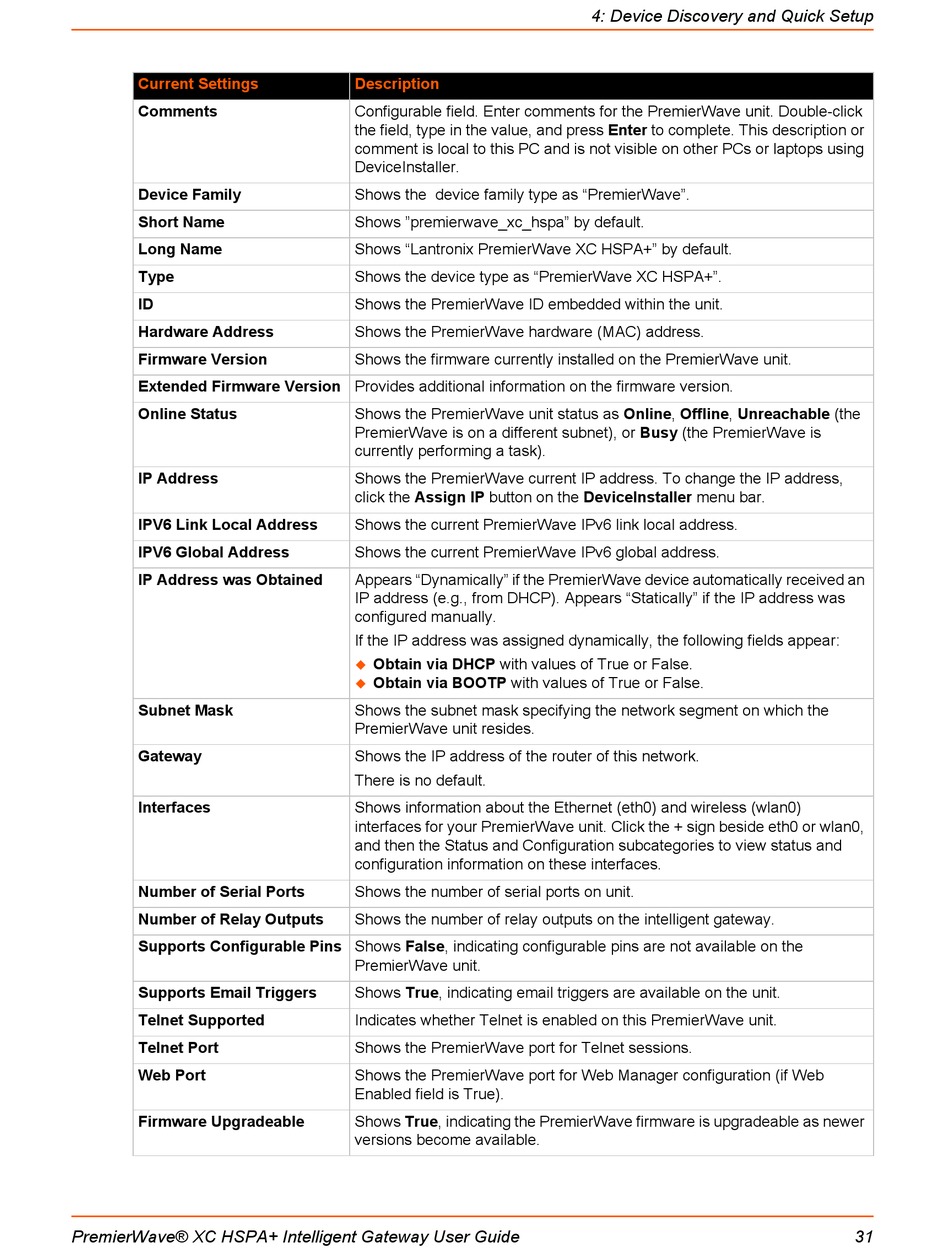

Current Settings
Comments
Device Family
Short Name
Long Name
Type
ID
Hardware Address
Firmware Version
Extended Firmware Version Provides additional information on the firmware version.
Online Status
IP Address
IPV6 Link Local Address
IPV6 Global Address
IP Address was Obtained
Subnet Mask
Gateway
Interfaces
Number of Serial Ports
Number of Relay Outputs
Supports Configurable Pins Shows False, indicating configurable pins are not available on the
Supports Email Triggers
Telnet Supported
Telnet Port
Web Port
Firmware Upgradeable
PremierWave® XC HSPA+ Intelligent Gateway User Guide
Description
Configurable field. Enter comments for the PremierWave unit. Double-click
the field, type in the value, and press Enter to complete. This description or
comment is local to this PC and is not visible on other PCs or laptops using
DeviceInstaller.
Shows the device family type as "PremierWave".
Shows "premierwave_xc_hspa" by default.
Shows "Lantronix PremierWave XC HSPA+" by default.
Shows the device type as "PremierWave XC HSPA+".
Shows the PremierWave ID embedded within the unit.
Shows the PremierWave hardware (MAC) address.
Shows the firmware currently installed on the PremierWave unit.
Shows the PremierWave unit status as Online, Offline, Unreachable (the
PremierWave is on a different subnet), or Busy (the PremierWave is
currently performing a task).
Shows the PremierWave current IP address. To change the IP address,
click the Assign IP button on the DeviceInstaller menu bar.
Shows the current PremierWave IPv6 link local address.
Shows the current PremierWave IPv6 global address.
Appears "Dynamically" if the PremierWave device automatically received an
IP address (e.g., from DHCP). Appears "Statically" if the IP address was
configured manually.
If the IP address was assigned dynamically, the following fields appear:
Obtain via DHCP with values of True or False.

Obtain via BOOTP with values of True or False.

Shows the subnet mask specifying the network segment on which the
PremierWave unit resides.
Shows the IP address of the router of this network.
There is no default.
Shows information about the Ethernet (eth0) and wireless (wlan0)
interfaces for your PremierWave unit. Click the + sign beside eth0 or wlan0,
and then the Status and Configuration subcategories to view status and
configuration information on these interfaces.
Shows the number of serial ports on unit.
Shows the number of relay outputs on the intelligent gateway.
PremierWave unit.
Shows True, indicating email triggers are available on the unit.
Indicates whether Telnet is enabled on this PremierWave unit.
Shows the PremierWave port for Telnet sessions.
Shows the PremierWave port for Web Manager configuration (if Web
Enabled field is True).
Shows True, indicating the PremierWave firmware is upgradeable as newer
versions become available.
