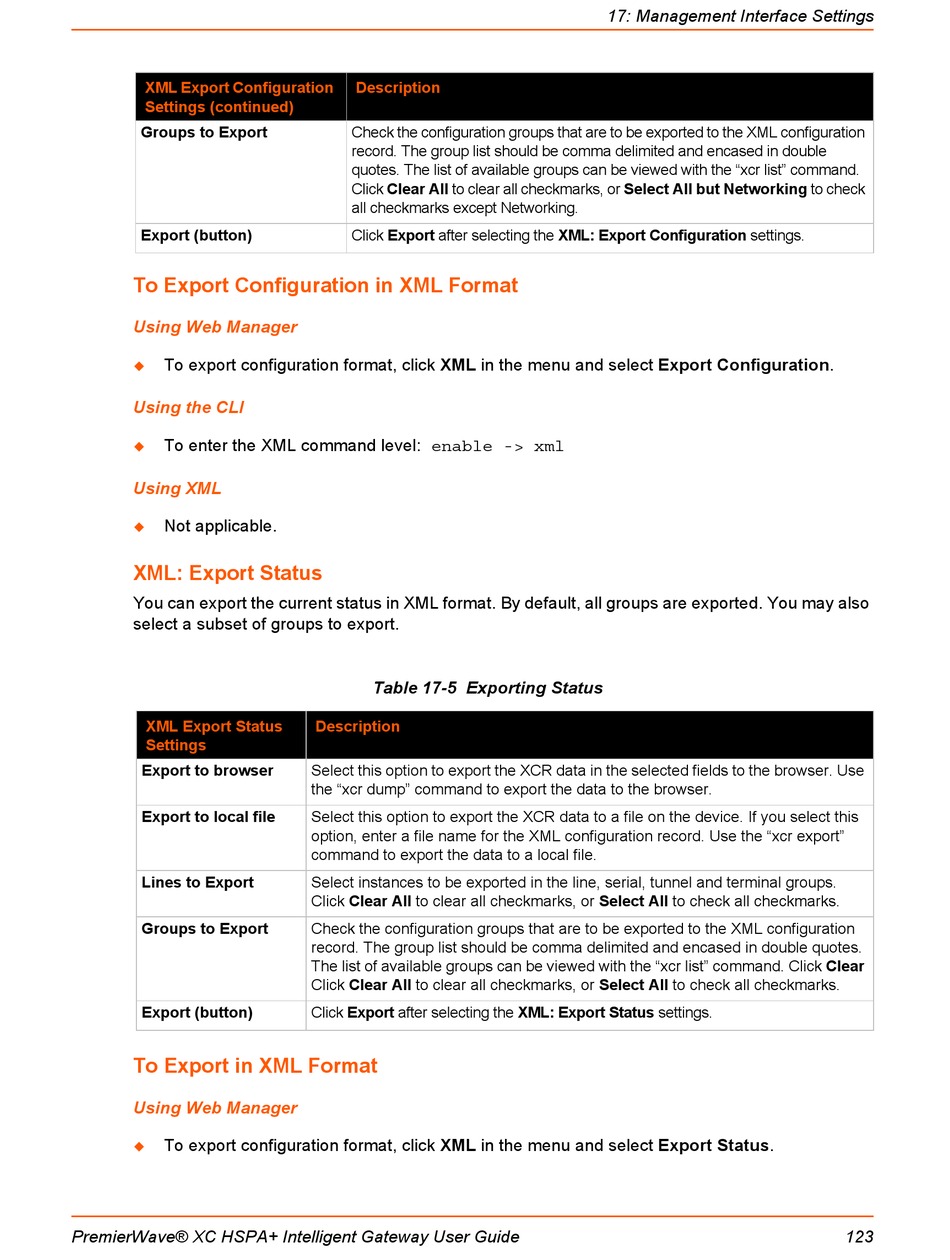

To Export Configuration In Xml Format; Xml: Export Status; To Export In Xml Format; Table 17-5 Exporting Status - Lantronix PREMIERWAVE XC HSPA+ User Manual

XML Export Configuration
Settings (continued)
Groups to Export
Export (button)

To Export Configuration in XML Format

Using Web Manager
To export configuration format, click XML in the menu and select Export Configuration.

Using the CLI
To enter the XML command level: enable -> xml

Using XML
Not applicable.


XML: Export Status

You can export the current status in XML format. By default, all groups are exported. You may also
select a subset of groups to export.
XML Export Status
Settings
Export to browser
Export to local file
Lines to Export
Groups to Export
Export (button)

To Export in XML Format

Using Web Manager
To export configuration format, click XML in the menu and select Export Status.

PremierWave® XC HSPA+ Intelligent Gateway User Guide
Description
Check the configuration groups that are to be exported to the XML configuration
record. The group list should be comma delimited and encased in double
quotes. The list of available groups can be viewed with the "xcr list" command.
Click Clear All to clear all checkmarks, or Select All but Networking to check
all checkmarks except Networking.
Click Export after selecting the XML: Export Configuration settings.

Table 17-5 Exporting Status

Description
Select this option to export the XCR data in the selected fields to the browser. Use
the "xcr dump" command to export the data to the browser.
Select this option to export the XCR data to a file on the device. If you select this
option, enter a file name for the XML configuration record. Use the "xcr export"
command to export the data to a local file.
Select instances to be exported in the line, serial, tunnel and terminal groups.
Click Clear All to clear all checkmarks, or Select All to check all checkmarks.
Check the configuration groups that are to be exported to the XML configuration
record. The group list should be comma delimited and encased in double quotes.
The list of available groups can be viewed with the "xcr list" command. Click Clear
Click Clear All to clear all checkmarks, or Select All to check all checkmarks.
Click Export after selecting the XML: Export Status settings.
17: Management Interface Settings
123
