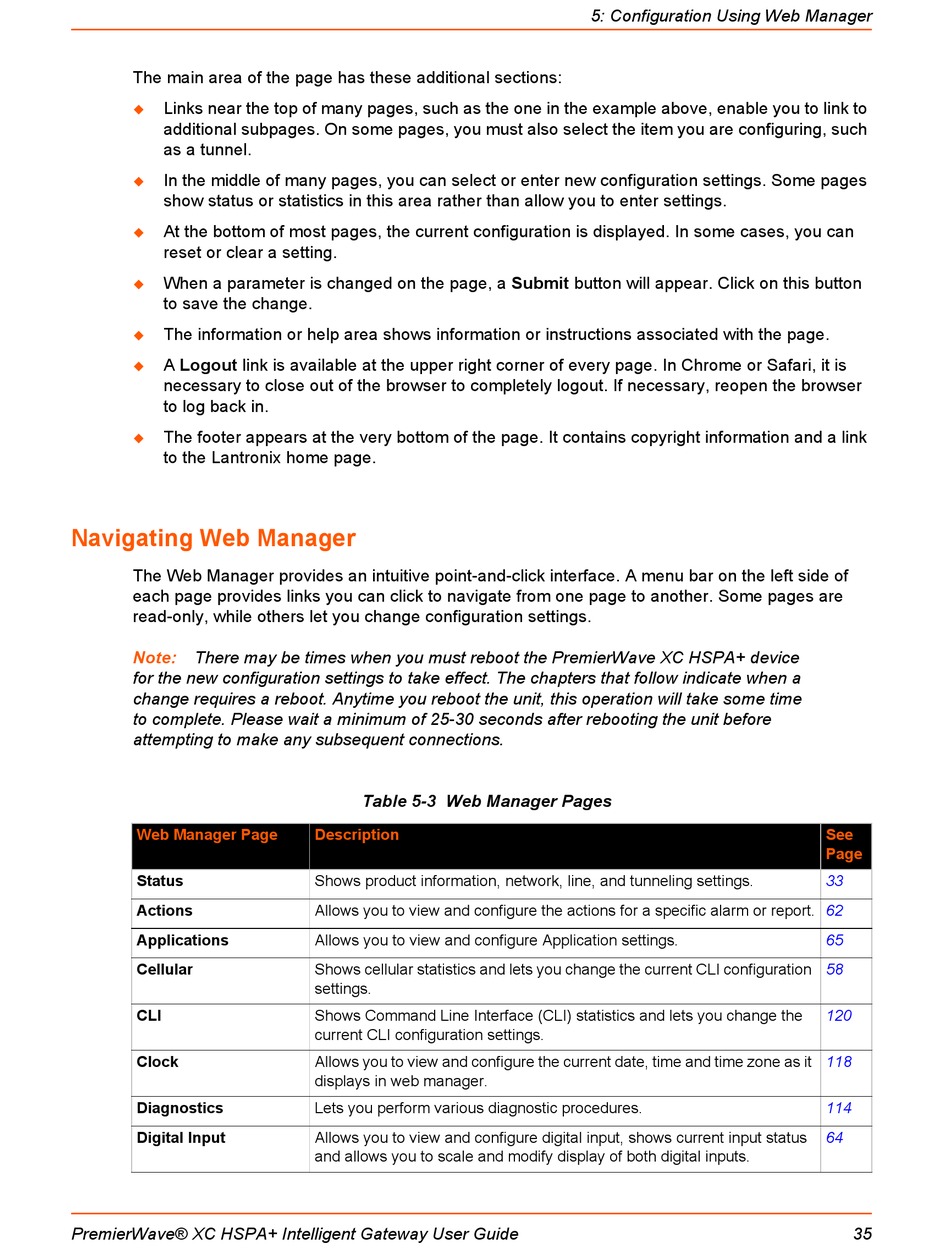

The main area of the page has these additional sections:
Links near the top of many pages, such as the one in the example above, enable you to link to

additional subpages. On some pages, you must also select the item you are configuring, such
as a tunnel.
In the middle of many pages, you can select or enter new configuration settings. Some pages

show status or statistics in this area rather than allow you to enter settings.
At the bottom of most pages, the current configuration is displayed. In some cases, you can

reset or clear a setting.
When a parameter is changed on the page, a Submit button will appear. Click on this button

to save the change.
The information or help area shows information or instructions associated with the page.

A Logout link is available at the upper right corner of every page. In Chrome or Safari, it is

necessary to close out of the browser to completely logout. If necessary, reopen the browser
to log back in.
The footer appears at the very bottom of the page. It contains copyright information and a link

to the Lantronix home page.

Navigating Web Manager

The Web Manager provides an intuitive point-and-click interface. A menu bar on the left side of
each page provides links you can click to navigate from one page to another. Some pages are
read-only, while others let you change configuration settings.
Note: There may be times when you must reboot the PremierWave XC HSPA+ device
for the new configuration settings to take effect. The chapters that follow indicate when a
change requires a reboot. Anytime you reboot the unit, this operation will take some time
to complete. Please wait a minimum of 25-30 seconds after rebooting the unit before
attempting to make any subsequent connections.
Web Manager Page
Status
Actions
Applications
Cellular
CLI
Clock
Diagnostics
Digital Input
PremierWave® XC HSPA+ Intelligent Gateway User Guide
Table 5-3 Web Manager Pages
Description
Shows product information, network, line, and tunneling settings.
Allows you to view and configure the actions for a specific alarm or report.
Allows you to view and configure Application settings.
Shows cellular statistics and lets you change the current CLI configuration
settings.
Shows Command Line Interface (CLI) statistics and lets you change the
current CLI configuration settings.
Allows you to view and configure the current date, time and time zone as it
displays in web manager.
Lets you perform various diagnostic procedures.
Allows you to view and configure digital input, shows current input status
and allows you to scale and modify display of both digital inputs.
5: Configuration Using Web Manager
See
Page
33
62
65
58
120
118
114
64
35
