3: Installation of the PremierWave XC HSPA+ Device
The PremierWave device has two male DB9 serial ports that support RS-232/422/485.
Figure 3-5
shows the front view of the device. The default serial port settings are 9600 baud, 8 bits, no parity,
1 stop bit, no flow control.

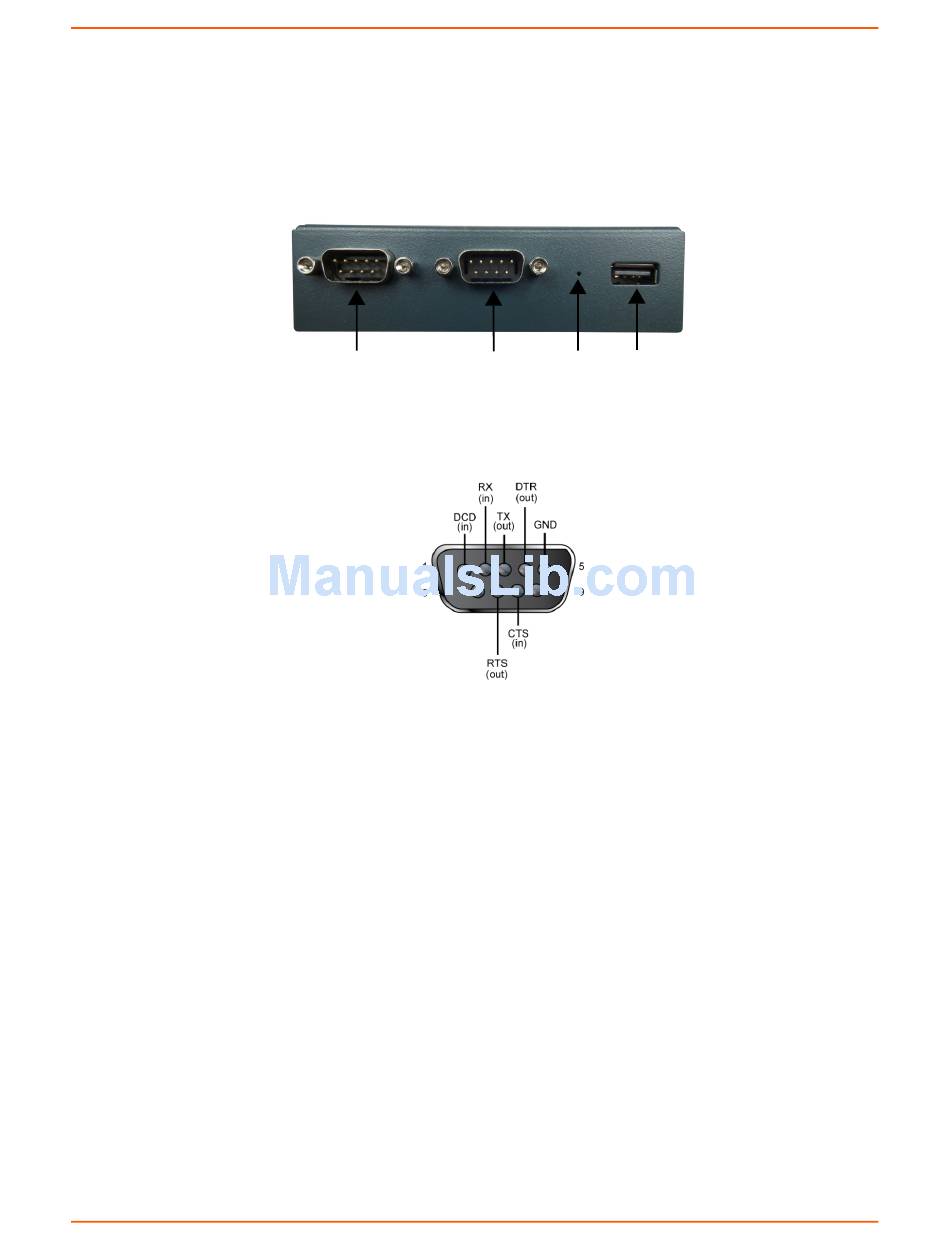

Figure 3-5 PremierWave XC HSPA+ Male DB9 DTE Serial Ports
Serial
Serial
Reset
USB
1
2
Button
Port
Figure 3-6 PremierWave XC HSPA+ Pinout Configuration for RS-232
PremierWave® XC HSPA+ Intelligent Gateway User Guide
24
