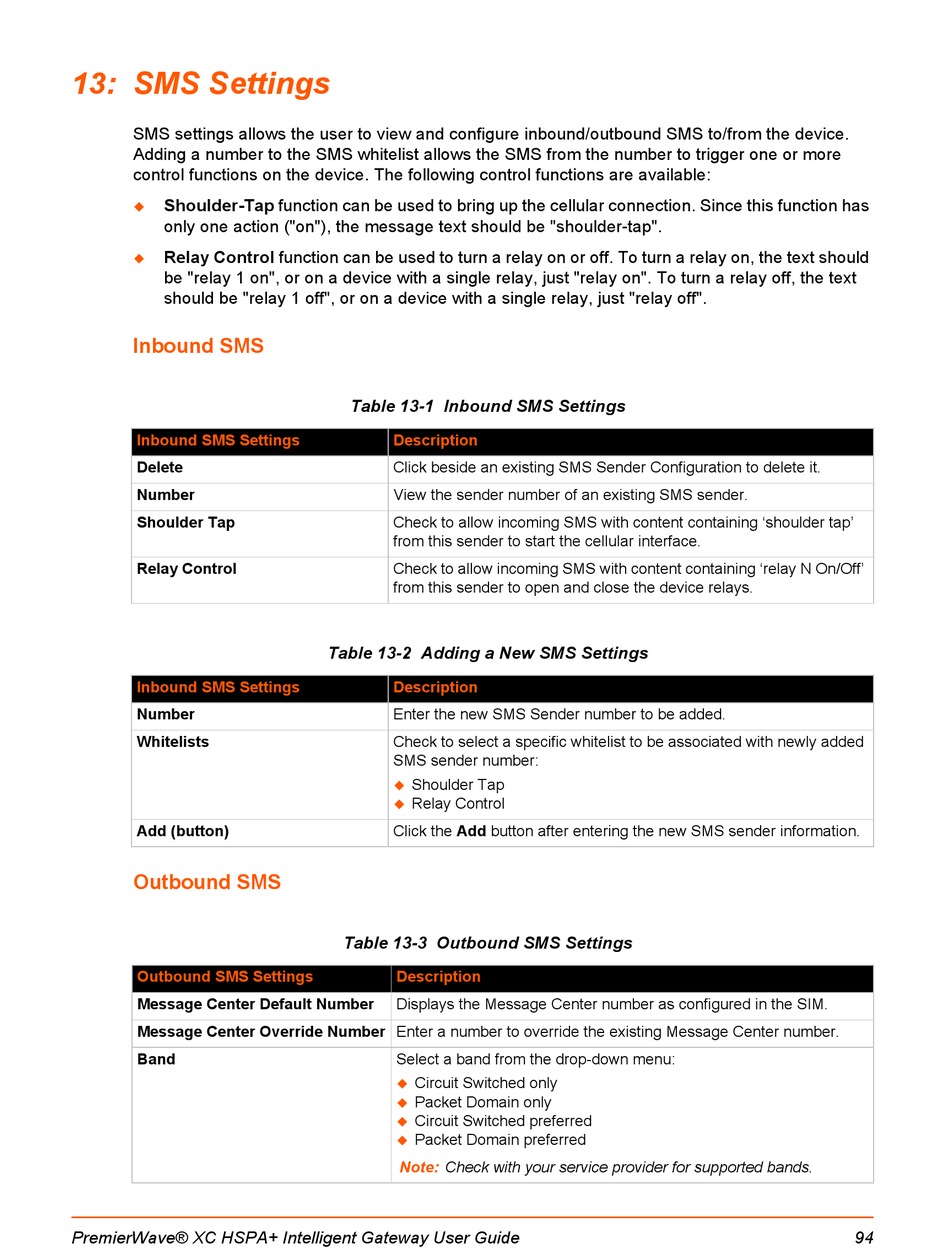

13: SMS Settings

SMS settings allows the user to view and configure inbound/outbound SMS to/from the device.
Adding a number to the SMS whitelist allows the SMS from the number to trigger one or more
control functions on the device. The following control functions are available:
Shoulder-Tap function can be used to bring up the cellular connection. Since this function has

only one action ("on"), the message text should be "shoulder-tap".
Relay Control function can be used to turn a relay on or off. To turn a relay on, the text should

be "relay 1 on", or on a device with a single relay, just "relay on". To turn a relay off, the text
should be "relay 1 off", or on a device with a single relay, just "relay off".

Inbound SMS

Inbound SMS Settings
Delete
Number
Shoulder Tap
Relay Control
Inbound SMS Settings
Number
Whitelists
Add (button)

Outbound SMS

Outbound SMS Settings
Message Center Default Number
Message Center Override Number Enter a number to override the existing Message Center number.
Band
PremierWave® XC HSPA+ Intelligent Gateway User Guide

Table 13-1 Inbound SMS Settings

Description
Click beside an existing SMS Sender Configuration to delete it.
View the sender number of an existing SMS sender.
Check to allow incoming SMS with content containing 'shoulder tap'
from this sender to start the cellular interface.
Check to allow incoming SMS with content containing 'relay N On/Off'
from this sender to open and close the device relays.

Table 13-2 Adding a New SMS Settings

Description
Enter the new SMS Sender number to be added.
Check to select a specific whitelist to be associated with newly added
SMS sender number:
Shoulder Tap

Relay Control

Click the Add button after entering the new SMS sender information.

Table 13-3 Outbound SMS Settings

Description
Displays the Message Center number as configured in the SIM.
Select a band from the drop-down menu:
Circuit Switched only

Packet Domain only

Circuit Switched preferred

Packet Domain preferred

Note: Check with your service provider for supported bands.
94
