Hardware Components

Front/Top Panel

Figure 3-1 shows the top panel view of the PremierWave unit.
list and explain the behavior of the LEDs on the top panel.
LED Indicators: 1 Power LED, 2 Serial Activity LEDs, 1 USB LED, 1 Cellular Status LED, 5 Signal
Strength LEDs (two of which are dual-colored), 1 Diagnostic LED, and 2 Ethernet LEDs (on the
RJ45 port).
LED
Power
Cellular (Cell) Status
Serial 1
Serial 2
USB
Signal Strength
PremierWave® XC HSPA+ Intelligent Gateway User Guide

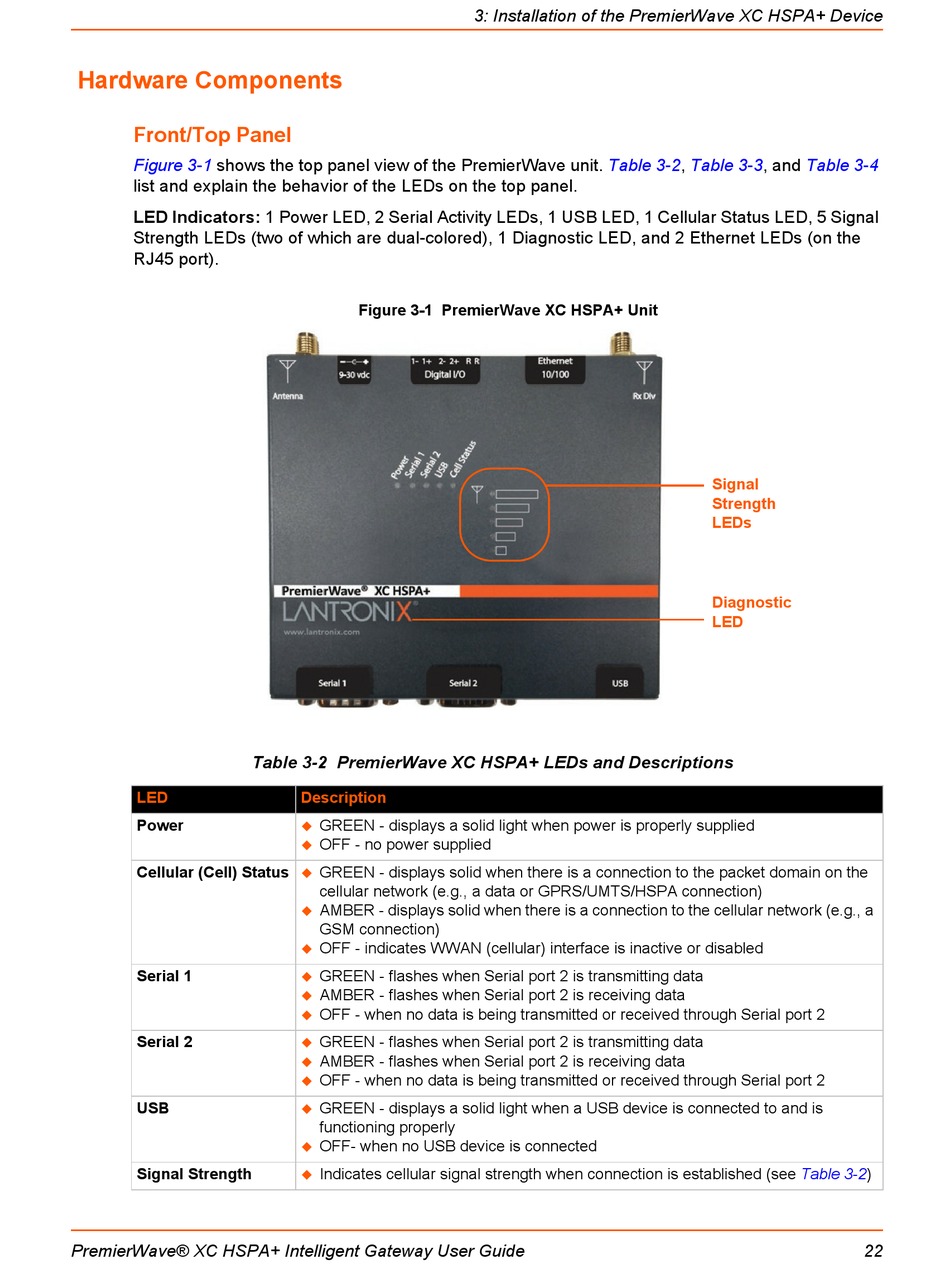

Figure 3-1 PremierWave XC HSPA+ Unit

Table 3-2 PremierWave XC HSPA+ LEDs and Descriptions

Description
GREEN - displays a solid light when power is properly supplied

OFF - no power supplied

GREEN - displays solid when there is a connection to the packet domain on the

cellular network (e.g., a data or GPRS/UMTS/HSPA connection)
AMBER - displays solid when there is a connection to the cellular network (e.g., a

GSM connection)
OFF - indicates WWAN (cellular) interface is inactive or disabled

GREEN - flashes when Serial port 2 is transmitting data

AMBER - flashes when Serial port 2 is receiving data

OFF - when no data is being transmitted or received through Serial port 2

GREEN - flashes when Serial port 2 is transmitting data

AMBER - flashes when Serial port 2 is receiving data

OFF - when no data is being transmitted or received through Serial port 2

GREEN - displays a solid light when a USB device is connected to and is

functioning properly
OFF- when no USB device is connected

Indicates cellular signal strength when connection is established (see

3: Installation of the PremierWave XC HSPA+ Device
Table 3-2, Table 3-3, and Table 3-4
Signal
Strength
LEDs
Diagnostic
LED
Table 3-2)
