Using XML
Include in your file: <statusgroup name="line" instance="1">
The Line Settings allow configuration of the serial lines (ports).
Line Settings
Name
Interface
State
Protocol
Baud Rate
Parity
Data Bits
Stop Bits
Flow Control
Gap Timer
Threshold
PremierWave® XC HSPA+ Intelligent Gateway User Guide

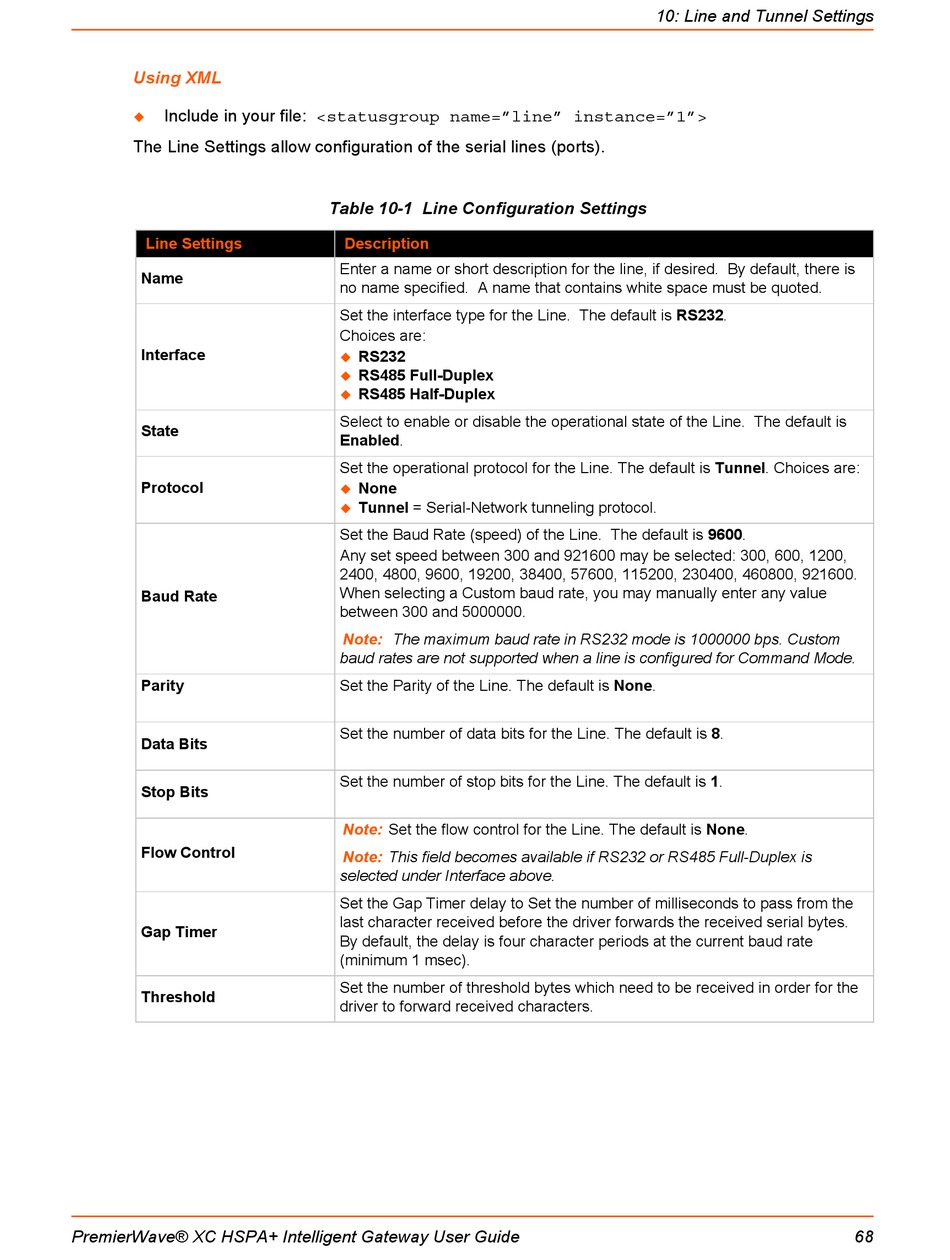

Table 10-1 Line Configuration Settings
Description
Enter a name or short description for the line, if desired. By default, there is
no name specified. A name that contains white space must be quoted.
Set the interface type for the Line. The default is RS232.
Choices are:
RS232
RS485 Full-Duplex
RS485 Half-Duplex
Select to enable or disable the operational state of the Line. The default is
Enabled.
Set the operational protocol for the Line. The default is Tunnel. Choices are:
None
Tunnel = Serial-Network tunneling protocol.
Set the Baud Rate (speed) of the Line. The default is 9600.
Any set speed between 300 and 921600 may be selected: 300, 600, 1200,
2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600.
When selecting a Custom baud rate, you may manually enter any value
between 300 and 5000000.
Note:
The maximum baud rate in RS232 mode is 1000000 bps. Custom
baud rates are not supported when a line is configured for Command Mode.
Set the Parity of the Line. The default is None.
Set the number of data bits for the Line. The default is 8.
Set the number of stop bits for the Line. The default is 1.
Note:
Set the flow control for the Line. The default is None.
Note:
This field becomes available if RS232 or RS485 Full-Duplex is
selected under Interface above.
Set the Gap Timer delay to Set the number of milliseconds to pass from the
last character received before the driver forwards the received serial bytes.
By default, the delay is four character periods at the current baud rate
(minimum 1 msec).
Set the number of threshold bytes which need to be received in order for the
driver to forward received characters.
10: Line and Tunnel Settings
