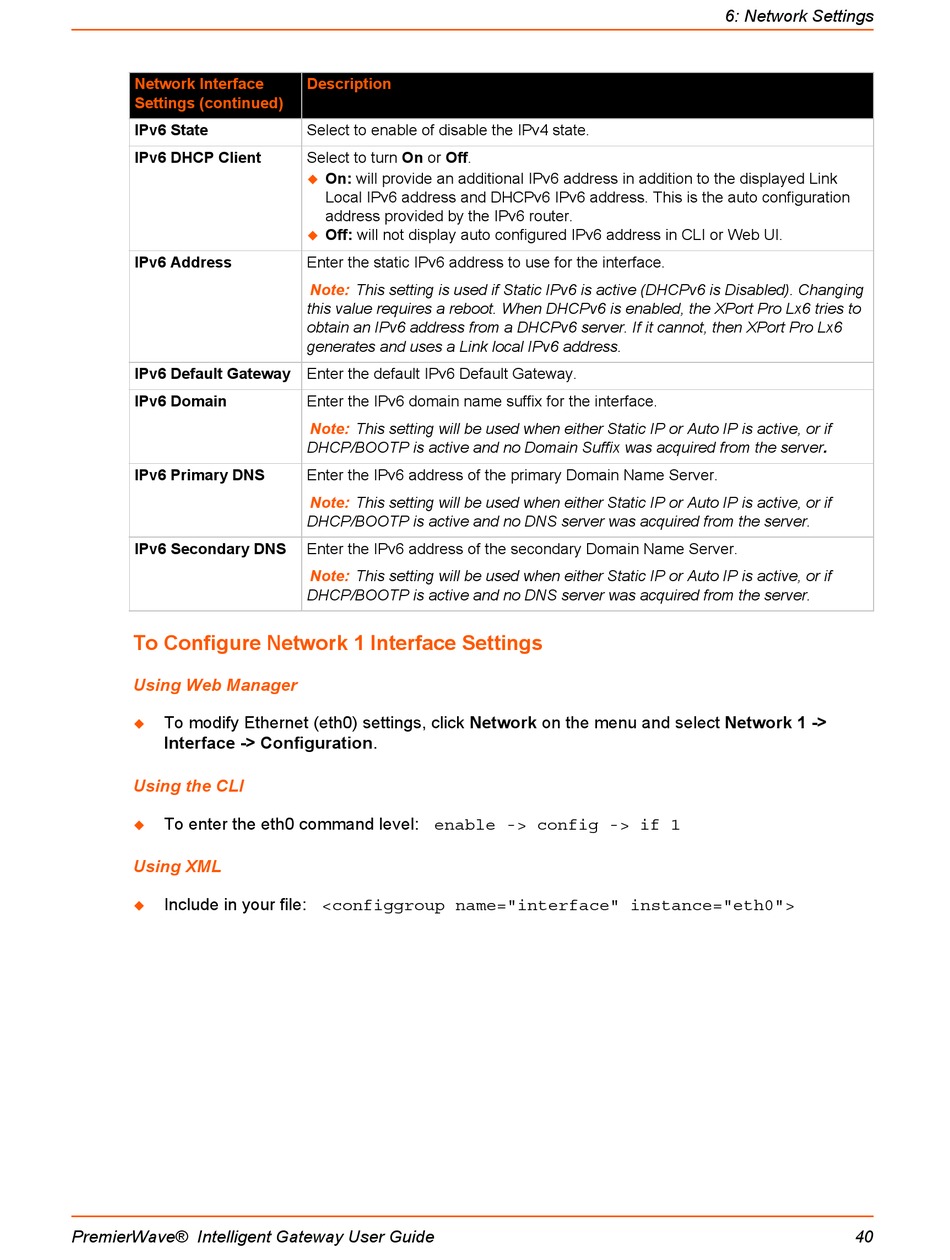

Network Interface
Settings (continued)
IPv6 State
IPv6 DHCP Client
IPv6 Address
IPv6 Default Gateway
IPv6 Domain
IPv6 Primary DNS
IPv6 Secondary DNS

To Configure Network 1 Interface Settings

Using Web Manager
To modify Ethernet (eth0) settings, click Network on the menu and select Network 1 ->
Interface -> Configuration.
Using the CLI
To enter the eth0 command level: enable -> config -> if 1
Using XML
Include in your file: <configgroup name="interface" instance="eth0">
PremierWave® Intelligent Gateway User Guide
Description
Select to enable of disable the IPv4 state.
Select to turn On or Off.
On: will provide an additional IPv6 address in addition to the displayed Link
Local IPv6 address and DHCPv6 IPv6 address. This is the auto configuration
address provided by the IPv6 router.
Off: will not display auto configured IPv6 address in CLI or Web UI.
Enter the static IPv6 address to use for the interface.
Note:
This setting is used if Static IPv6 is active (DHCPv6 is Disabled). Changing
this value requires a reboot. When DHCPv6 is enabled, the XPort Pro Lx6 tries to
obtain an IPv6 address from a DHCPv6 server. If it cannot, then XPort Pro Lx6
generates and uses a Link local IPv6 address.
Enter the default IPv6 Default Gateway.
Enter the IPv6 domain name suffix for the interface.
Note:
This setting will be used when either Static IP or Auto IP is active, or if
DHCP/BOOTP is active and no Domain Suffix was acquired from the server.
Enter the IPv6 address of the primary Domain Name Server.
Note:
This setting will be used when either Static IP or Auto IP is active, or if
DHCP/BOOTP is active and no DNS server was acquired from the server.
Enter the IPv6 address of the secondary Domain Name Server.
Note:
This setting will be used when either Static IP or Auto IP is active, or if
DHCP/BOOTP is active and no DNS server was acquired from the server.
6: Network Settings
40
