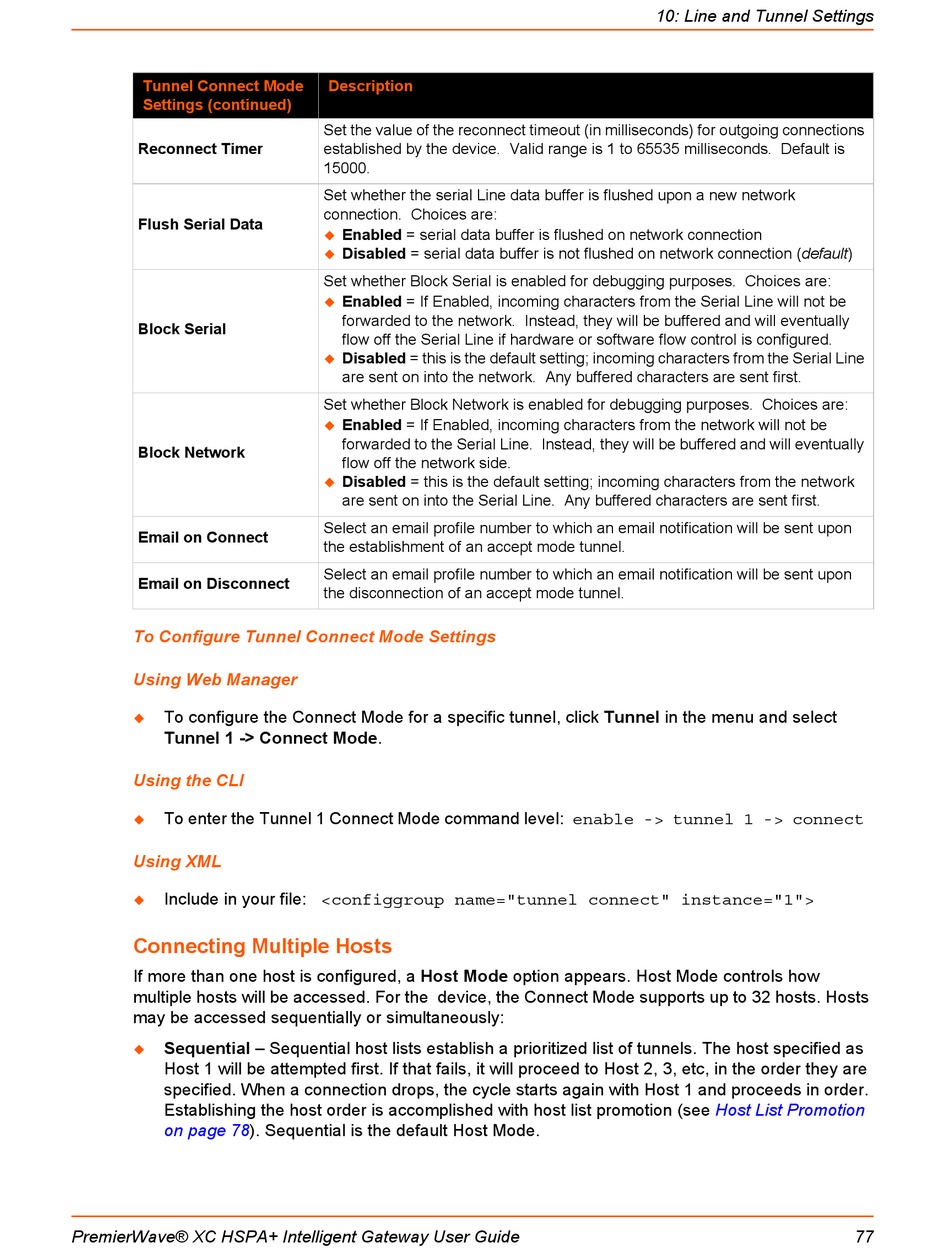

Connecting Multiple Hosts - Lantronix PREMIERWAVE XC HSPA+ User Manual

Tunnel Connect Mode
Settings (continued)
Reconnect Timer
Flush Serial Data
Block Serial
Block Network
Email on Connect
Email on Disconnect
To Configure Tunnel Connect Mode Settings
Using Web Manager
To configure the Connect Mode for a specific tunnel, click Tunnel in the menu and select

Tunnel 1 -> Connect Mode.
Using the CLI
To enter the Tunnel 1 Connect Mode command level: enable -> tunnel 1 -> connect

Using XML
Include in your file: <configgroup name="tunnel connect" instance="1">


Connecting Multiple Hosts

If more than one host is configured, a Host Mode option appears. Host Mode controls how
multiple hosts will be accessed. For the device, the Connect Mode supports up to 32 hosts. Hosts
may be accessed sequentially or simultaneously:
Sequential – Sequential host lists establish a prioritized list of tunnels. The host specified as

Host 1 will be attempted first. If that fails, it will proceed to Host 2, 3, etc, in the order they are
specified. When a connection drops, the cycle starts again with Host 1 and proceeds in order.
Establishing the host order is accomplished with host list promotion (see
on page 78). Sequential is the default Host Mode.
PremierWave® XC HSPA+ Intelligent Gateway User Guide
Description
Set the value of the reconnect timeout (in milliseconds) for outgoing connections
established by the device. Valid range is 1 to 65535 milliseconds. Default is
15000.
Set whether the serial Line data buffer is flushed upon a new network
connection. Choices are:
Enabled = serial data buffer is flushed on network connection

Disabled = serial data buffer is not flushed on network connection (default)

Set whether Block Serial is enabled for debugging purposes. Choices are:
Enabled = If Enabled, incoming characters from the Serial Line will not be

forwarded to the network. Instead, they will be buffered and will eventually
flow off the Serial Line if hardware or software flow control is configured.
Disabled = this is the default setting; incoming characters from the Serial Line

are sent on into the network. Any buffered characters are sent first.
Set whether Block Network is enabled for debugging purposes. Choices are:
Enabled = If Enabled, incoming characters from the network will not be

forwarded to the Serial Line. Instead, they will be buffered and will eventually
flow off the network side.
Disabled = this is the default setting; incoming characters from the network

are sent on into the Serial Line. Any buffered characters are sent first.
Select an email profile number to which an email notification will be sent upon
the establishment of an accept mode tunnel.
Select an email profile number to which an email notification will be sent upon
the disconnection of an accept mode tunnel.
10: Line and Tunnel Settings
Host List Promotion
77
