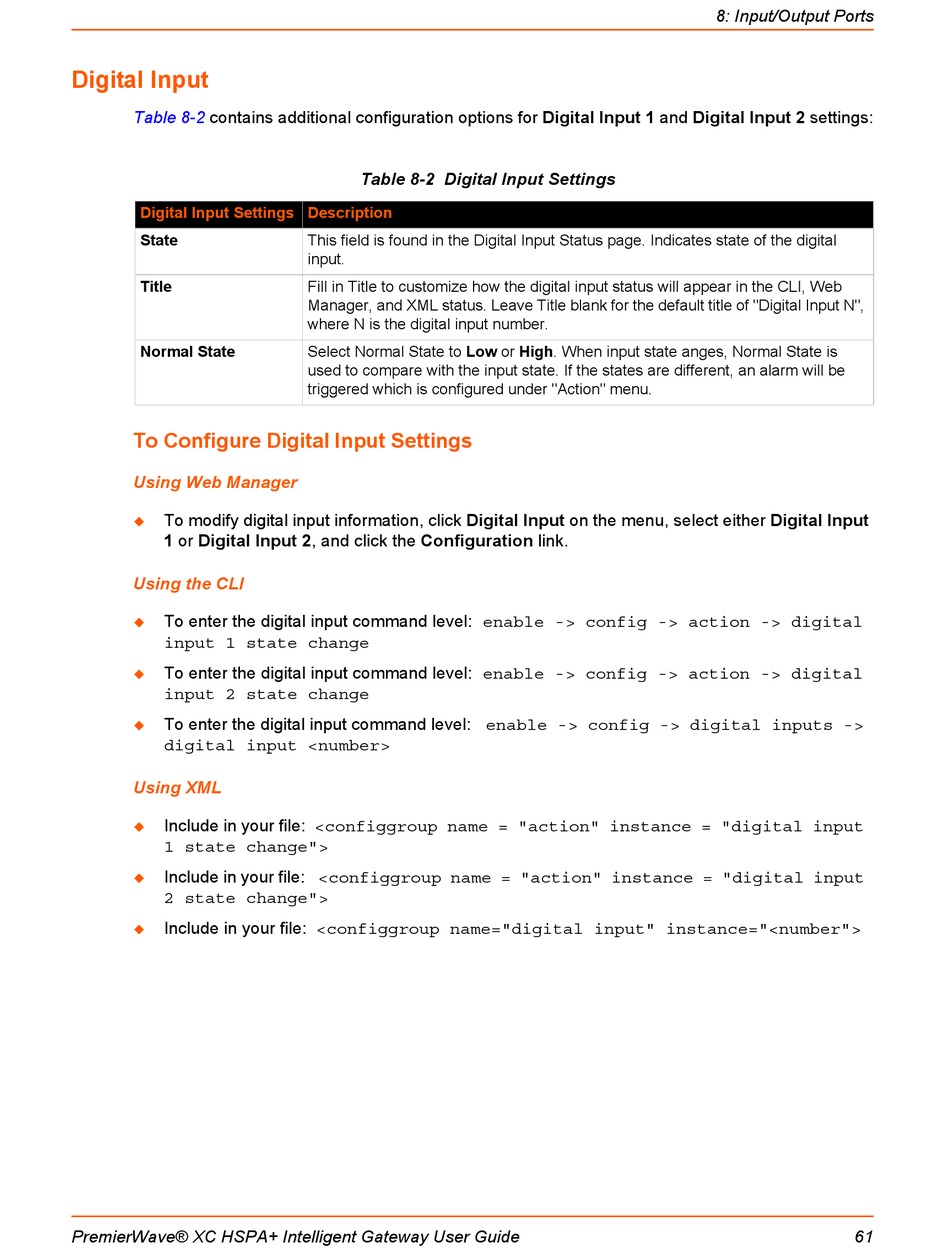

Digital Input

Table 8-2 contains additional configuration options for Digital Input 1 and Digital Input 2 settings:
Digital Input Settings Description
State
Title
Normal State

To Configure Digital Input Settings

Using Web Manager
To modify digital input information, click Digital Input on the menu, select either Digital Input

1 or Digital Input 2, and click the Configuration link.
Using the CLI
To enter the digital input command level: enable -> config -> action -> digital

input 1 state change
To enter the digital input command level: enable -> config -> action -> digital

input 2 state change
To enter the digital input command level: enable -> config -> digital inputs ->

digital input <number>
Using XML
Include in your file: <configgroup name = "action" instance = "digital input

1 state change">
Include in your file: <configgroup name = "action" instance = "digital input

2 state change">
Include in your file: <configgroup name="digital input" instance="<number">

PremierWave® XC HSPA+ Intelligent Gateway User Guide

Table 8-2 Digital Input Settings

This field is found in the Digital Input Status page. Indicates state of the digital
input.
Fill in Title to customize how the digital input status will appear in the CLI, Web
Manager, and XML status. Leave Title blank for the default title of "Digital Input N",
where N is the digital input number.
Select Normal State to Low or High. When input state anges, Normal State is
used to compare with the input state. If the states are different, an alarm will be
triggered which is configured under "Action" menu.
