Lantronix EMG 8500 Quick Start Manual

™
EMG
!
Thank you for choosing Lantronix. Please register the EMG 8500 in order to receive notifications for
firmware and documentation updates at www.lantronix.com/product-registration.

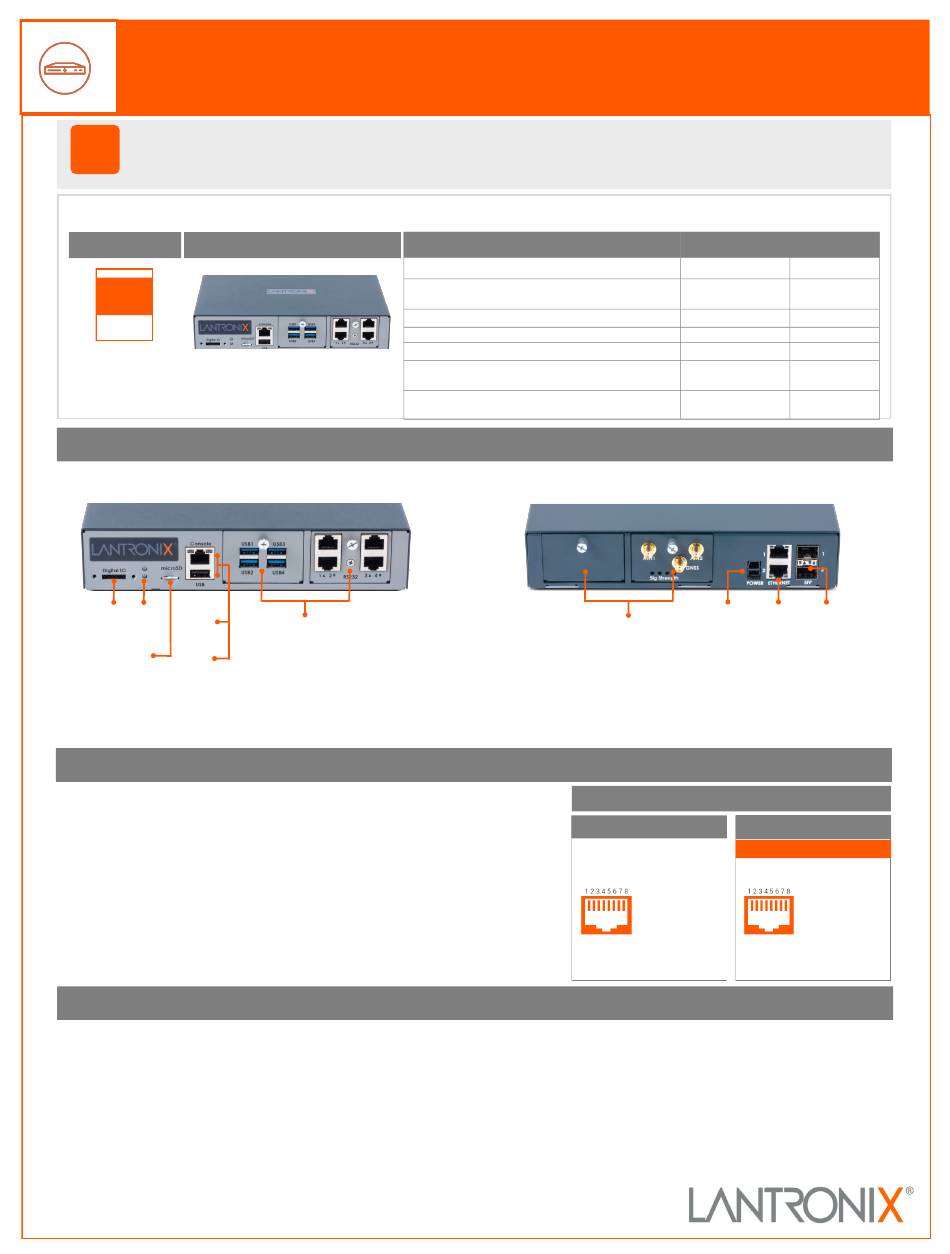

WHAT'S IN THE BOX
Quick Start Guide
START

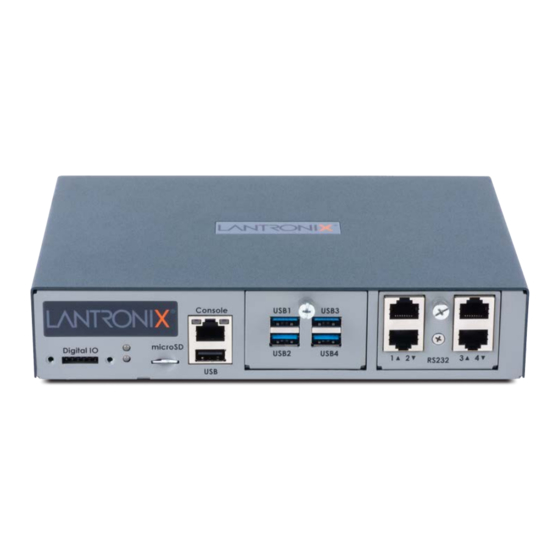

EMG851210SP with USB and RJ45 FRUs shown.
Additional FRU combinations are available.
1. HARDWARE OVERVIEW
Front View
Console
*DIO LEDs
Port
Micro SD USB
The EMG 8500 unit offers up to 8 RJ45 (RS-232) or USB
serial device port connections in 2 user-swappable, front I/O
module device bays.
*Front DIO adapter is available and sold separately.
2. CONNECTING THE EMG 8500
The front console port allows a dumb terminal or PC with terminal emulation software
to locally access management functions and connected devices.
The device ports allow simple and flexible connections to serial devices using adapters
and a standard CAT5 cable. Connect one end of the CAT5 cable to the device port and
the other end to an adapter that attaches to the serial console of the target system.
The default communication parameters for the device ports and console ports are:
• 9600 baud • 1 stop bit • 8 data bits • No flow control • No parity
Note: EMG 8500 device ports are reversed by default, and are software configurable.
3. HARDWARE INSTALLATION
1. Install the unit on a desktop or other flat, horizontal surface.
Rack mount and wall mount kits are available as optional
accessories.
2. Install the I/O modules on the front of the unit and the
connectivity modules on the back.
Warning: Always remove the power cord prior to installing or
removing a connectivity or I/O module. Failure to do so could
damage the unit.
3. Connect the equipment to the device ports on the front of the
unit using the appropriate cables and adapters.
4. Connect the unit to the network using the upper network port
(Ethernet 1 or SFP 1).
8500 Quick Start Guide
EMG 8500
External Universal AC (100W, 12V) Power Supply
North American Power Cord - 110V AC power cord, 8 ft
(2.43m), RoHS
RJ45 to DB9F Adapter
RJ45 to RJ45, CAT5 Cable, 6.6 ft (2 m)
RJ45 Loopback Cable
Rubber feet with adhesive
Additional I/O and Connectivity FRUs are available and
sold separately.
Bay 1 Bay 2
Device Ports (Modular)
Accessories
Bay 1
Connectivity Ports
(Modular)
The back of the EMG 8500 unit offers up to 2 connectivity ports
for out-of-band management in 2 user-swappable module
bays.
Console Port (RS-232)
1. RTS
2. DTR
3. TX
4. GND
5. GND
6. RX
7. DSR
8. CTS
Not Reversible
5. Connect the power cord to apply power.
6. The top front LED turns green to indicate that power is ON and at least one
of the Ethernet ports has a link or both Ethernet ports are disabled. The LED
blinks red if none of the enabled Ethernet ports has a link.
7. Wait about a minute and a half for the boot process to complete. The first
time you power up the EMG unit, Eth1 tries to obtain its IP Address via DHCP.
Warning: If rack mounting the EMG,
do not block the air vents on the
sides of the unit. If mounted in an
enclosed rack, it is recommended
that the rack have a ventilation fan.
1
Edge Management
Part Number Quantity
ACC-520-0164-00 1
ACC-500-041-R 1
ACC-200.2070A 1
ACC-200.0062 1
ACC-500-153 1
120-008-R 4 pieces
varies varies
Back View
Ethernet SFP
Bay 2 Power
input
Default Pin Assignments
Device Ports (RS-232)
Reversed by Default
(Out) 1. CTS
2. DSR
(Out)
3. RX
(Out)
4. GND
5. GND
6. TX
(In)
(In) 7. DTR
(In) 8. RTS
Software Reversible
Gateway
(In)
(In)
(In)
(Out)
(Out)
(Out)
