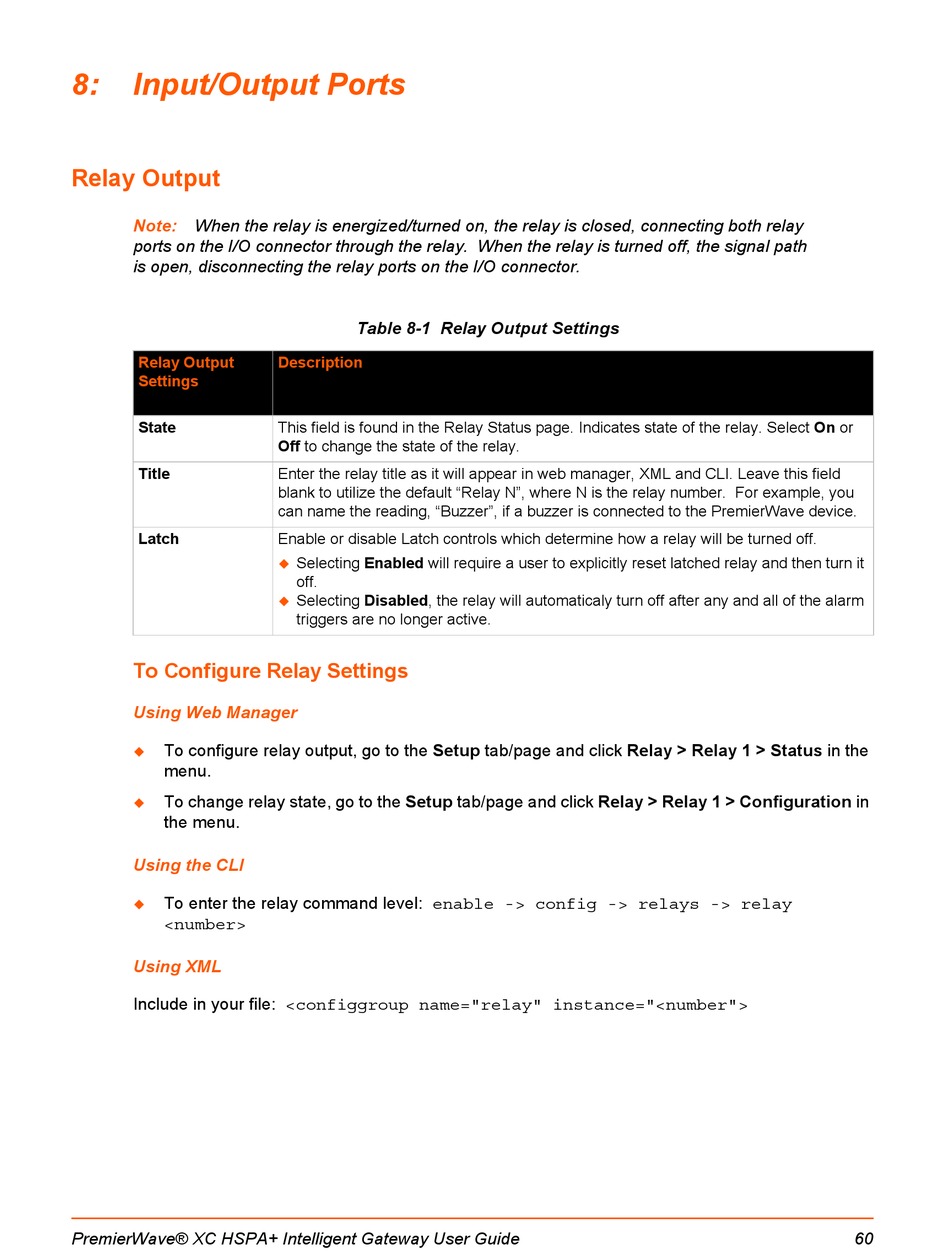

8: Input/Output Ports

Relay Output

Note: When the relay is energized/turned on, the relay is closed, connecting both relay
ports on the I/O connector through the relay. When the relay is turned off, the signal path
is open, disconnecting the relay ports on the I/O connector.
Relay Output
Settings
State
Title
Latch

To Configure Relay Settings

Using Web Manager
To configure relay output, go to the Setup tab/page and click Relay > Relay 1 > Status in the

menu.
To change relay state, go to the Setup tab/page and click Relay > Relay 1 > Configuration in

the menu.
Using the CLI
To enter the relay command level: enable -> config -> relays -> relay

<number>
Using XML
Include in your file: <configgroup name="relay" instance="<number">
PremierWave® XC HSPA+ Intelligent Gateway User Guide

Table 8-1 Relay Output Settings

Description
This field is found in the Relay Status page. Indicates state of the relay. Select On or
Off to change the state of the relay.
Enter the relay title as it will appear in web manager, XML and CLI. Leave this field
blank to utilize the default "Relay N", where N is the relay number. For example, you
can name the reading, "Buzzer", if a buzzer is connected to the PremierWave device.
Enable or disable Latch controls which determine how a relay will be turned off.
Selecting Enabled will require a user to explicitly reset latched relay and then turn it

off.
Selecting Disabled, the relay will automaticaly turn off after any and all of the alarm

triggers are no longer active.
