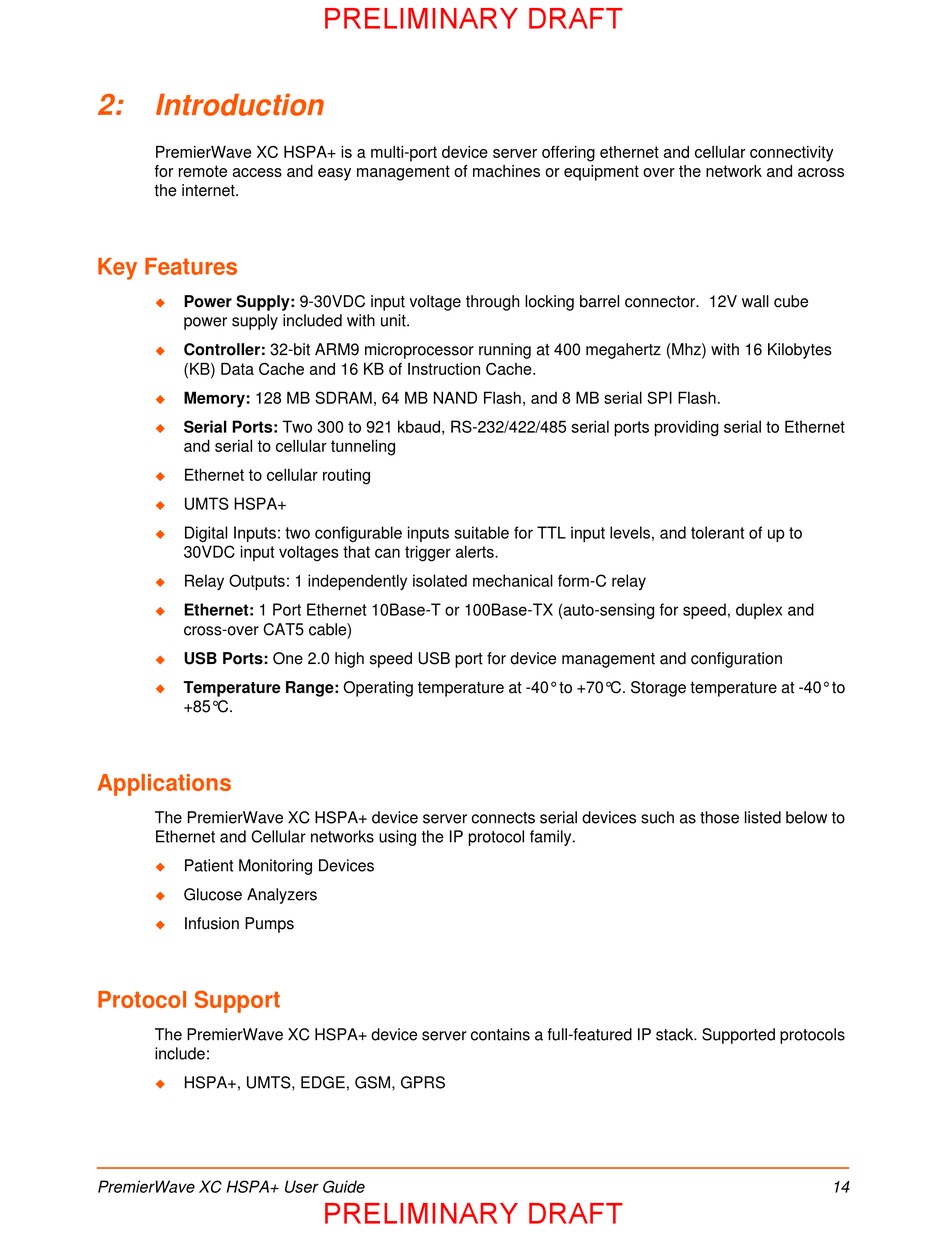

2: Introduction
PremierWave XC HSPA+ is a multi-port device server offering ethernet and cellular connectivity
for remote access and easy management of machines or equipment over the network and across
the internet.

Key Features

Power Supply: 9-30VDC input voltage through locking barrel connector. 12V wall cube

power supply included with unit.
Controller: 32-bit ARM9 microprocessor running at 400 megahertz (Mhz) with 16 Kilobytes

(KB) Data Cache and 16 KB of Instruction Cache.
Memory: 128 MB SDRAM, 64 MB NAND Flash, and 8 MB serial SPI Flash.

Serial Ports: Two 300 to 921 kbaud, RS-232/422/485 serial ports providing serial to Ethernet

and serial to cellular tunneling
Ethernet to cellular routing

UMTS HSPA+

Digital Inputs: two configurable inputs suitable for TTL input levels, and tolerant of up to

30VDC input voltages that can trigger alerts.
Relay Outputs: 1 independently isolated mechanical form-C relay

Ethernet: 1 Port Ethernet 10Base-T or 100Base-TX (auto-sensing for speed, duplex and

cross-over CAT5 cable)
USB Ports: One 2.0 high speed USB port for device management and configuration

Temperature Range: Operating temperature at -40° to +70°C. Storage temperature at -40° to

+85°C.

Applications

The PremierWave XC HSPA+ device server connects serial devices such as those listed below to
Ethernet and Cellular networks using the IP protocol family.
Patient Monitoring Devices

Glucose Analyzers

Infusion Pumps


Protocol Support

The PremierWave XC HSPA+ device server contains a full-featured IP stack. Supported protocols
include:
HSPA+, UMTS, EDGE, GSM, GPRS

