Virtual IP Settings
Delete (checkbox)
Name
IP Address
LAN IP Address
Virtual IP Settings
Name
IP Address
LAN IP Address
Add

To Configure Gateway Virtual IP

Using Web Manager
To modify gateway DHCP server information, click Gateway on the menu and select

Configuration > Virtual IP.
Using the CLI
To enter the gateway command level: enable -> config -> gateway

Using XML
Include in your file: <configgroup name = "virtual ip">


DDNS

The PremierWave XC HSPA+ intelligent gateway displays and allows configuration of the DDNS.
DDNS Settings
State
Type
User Name
Password
Host Name
Interval
Update DDNS (button)
PremierWave® Intelligent Gateway User Guide
Description
Check the Delete checkbox adjacent to a virtual IP address to be deleted,
clicking the Submit button.
The name of an existing virtual IP address.
An existing virtual IP address to which the LAN IP address is to be mapped.
An existing LAN IP address to which the virtual IP address is to be mapped.

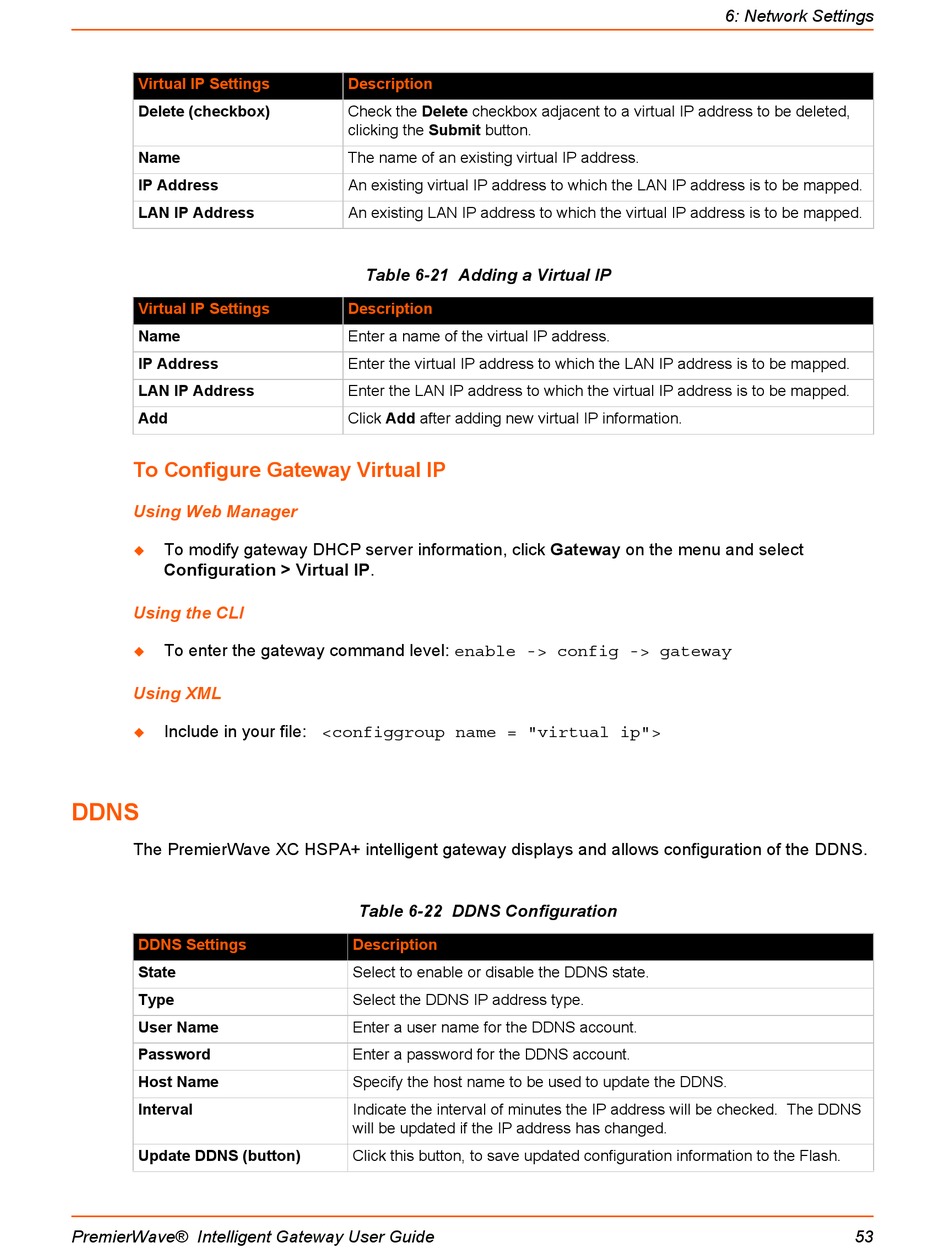

Table 6-21 Adding a Virtual IP

Description
Enter a name of the virtual IP address.
Enter the virtual IP address to which the LAN IP address is to be mapped.
Enter the LAN IP address to which the virtual IP address is to be mapped.
Click Add after adding new virtual IP information.

Table 6-22 DDNS Configuration

Description
Select to enable or disable the DDNS state.
Select the DDNS IP address type.
Enter a user name for the DDNS account.
Enter a password for the DDNS account.
Specify the host name to be used to update the DDNS.
Indicate the interval of minutes the IP address will be checked. The DDNS
will be updated if the IP address has changed.
Click this button, to save updated configuration information to the Flash.
