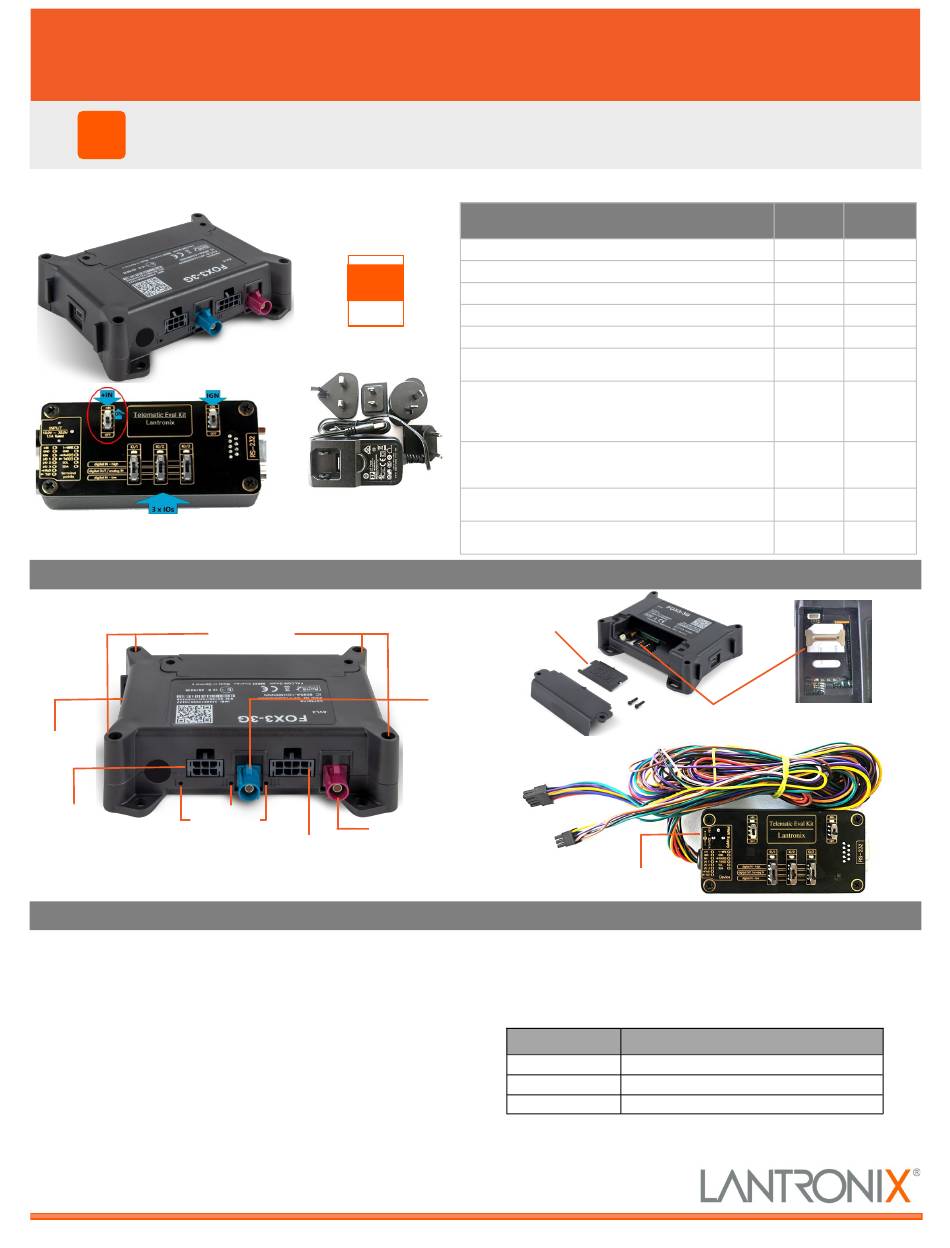

Lantronix FOX3-2G Quick Start

FOX3-2G/3G/4G Promo Kit Quick Start
!
Thank you for choosing Lantronix. Please register your product to receive notifications for firmware and
FOX3-3G Device
Telematic Eval Kit
HARDWARE OVERVIEW
10 Pin
Mini USB
6 Pin Accessory
3x LED
Port
Indicators
HARDWARE INSTALLATION
1. Remove the contents from the box and insert the SIM card in the
holder.
2. Set the +IN and IGN switches on the Telematic Eval Kit to OFF
position before starting any operation.
3. Plug in the 8 pin double row connector of the Telematic Eval Kit
to the 8 pin main port of the FOX3 series device and the 6 pin
double row connector to the 6 pin accessory port of the FOX3
series device.
4. Insert the power supply into the left input socket of the Telematic
Eval Kit marked INPUT 15.0V ...32.0V and plug the AC adapter
into the wall socket of your 110 V mains.
5. Set the +IN switch on the Telematic Eval Kit to ON position to
apply power, and then set the IGN switch to ON position to pow-
er up the FOX3 series device.
documentation updates at www.lantronix.com/product-registration.
WHAT'S IN THE BOX
Instruction
Sheet
Power Supply FW7238/12
incl. UK/US/AU/EU
4x Mounting
Holes
GSM Antenna
8 Pin Main Port
External Antenna
SIM card
USB to SERIAL Cable
Telematic Eval Kit
1000 mA Rechargeable Li- Ion Battery
Service and power cable with 8pin (2x4) Molex connect-
or, RS-232 female connector, 1.5m cable
Main port extended installation cable with 8pin (2x4)
connector, 4pin (2x2) UCOM connector for connecting
and powering RFID/NFC reader, 1.5m long, 2A blade
fuse and 6 open end wires
Accessory port cable with 6pin (2x3) connector, 4pin
(2x2) UCOM connector for connecting and powering
RFID/NFC reader, 1.5m long and 6 open end wires
Accessory port service cable with 2x3pin connector to
DB9 serial female socket, 1m long.
2x4pin connector to OBDII cable with separate IGN wire,
1.5m long
SIM Cover
GNSS Antenna
Port
Battery Cover
To Main
Port
Port
To Accessory
Port
Allow the internal battery to be fully charged (3-4 hours) before using
the device.
The FOX3-2G/3G/4G device has 3 LED indicators. The LED indicators
and their functions are provided in the table below:
LED
RED
YELLOW
GREEN
For detailed LED behavior refer FOX3-2G/3G/4G Promotion Kit User
Guide.
1
Telematic Gateway
ACCESSORY
SIM Card Holder
Screws
Input Power Supply
FUNCTION
Power supply status
GNSS Fix status
TCP/MQTT/REST/Perception connection status
PART
NUMBER QUANTITY
ANT-14 1
N/A 1
N/A 1
N/A 1
N/A 1
CA27 1
CA31 1
CA69 1
CA76 1
CA123 1
