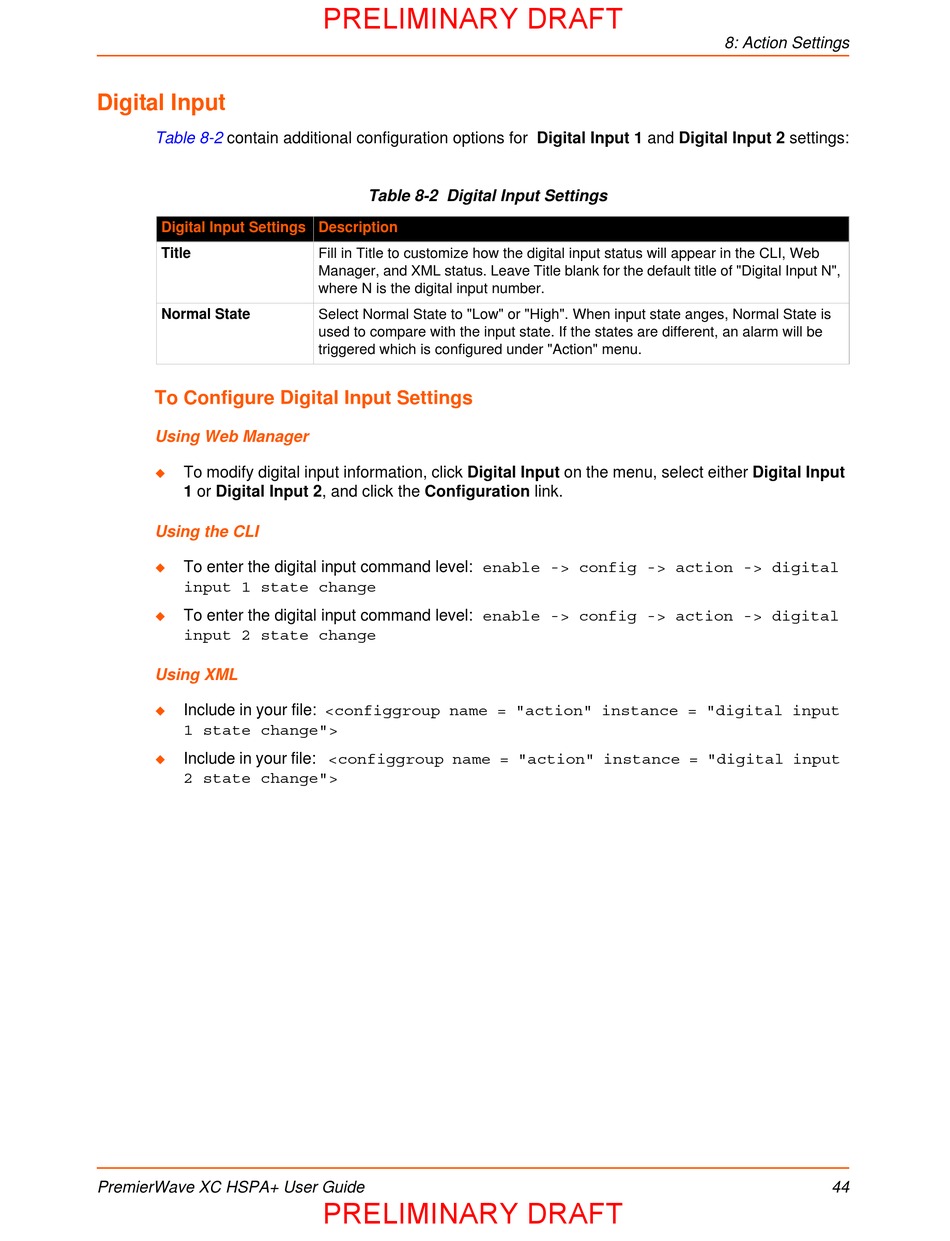

Digital Input

Table 8-2 contain additional configuration options for Digital Input 1 and Digital Input 2 settings:
Digital Input Settings Description
Title
Normal State

To Configure Digital Input Settings

Using Web Manager
To modify digital input information, click Digital Input on the menu, select either Digital Input

1 or Digital Input 2, and click the Configuration link.
Using the CLI
To enter the digital input command level: enable -> config -> action -> digital

input 1 state change
To enter the digital input command level: enable -> config -> action -> digital

input 2 state change
Using XML
Include in your file: <configgroup name = "action" instance = "digital input

1 state change">
Include in your file: <configgroup name = "action" instance = "digital input

2 state change">
PremierWave XC HSPA+ User Guide
PRELIMINARY DRAFT

Table 8-2 Digital Input Settings

Fill in Title to customize how the digital input status will appear in the CLI, Web
Manager, and XML status. Leave Title blank for the default title of "Digital Input N",
where N is the digital input number.
Select Normal State to "Low" or "High". When input state anges, Normal State is
used to compare with the input state. If the states are different, an alarm will be
triggered which is configured under "Action" menu.
