Back Panel

On the PremierWave is a Power 1 Plug and RJ-45 Ethernet port as shown in

Table 3-10 PremierWave XC HSPA+ Connections (Side)

Connector
Relay Output
Inputs

Installing the PremierWave XC HSPA+

The device comes with brackets for mounting it, for example, on a wall. If using AC power, do not
use outlets controlled by a wall switch.
Observe the following guidelines when connecting the devices:
The PremierWave serial ports support RS-232/422/485.

Use a null modem cable to connect the serial port to another DTE device. Use a straight-

though (modem) cable to connect the serial port to a DCE device.
Connect your RJ-45 Ethernet cable to the RJ-45 port of the unit.

The PremierWave supports a power range of 9 to 30 VDC.

Note: As soon as you plug the device into power, the device powers up automatically,
the self-test begins, and LEDs would indicate the device's status
PremierWave XC HSPA+ User Guide
PRELIMINARY DRAFT

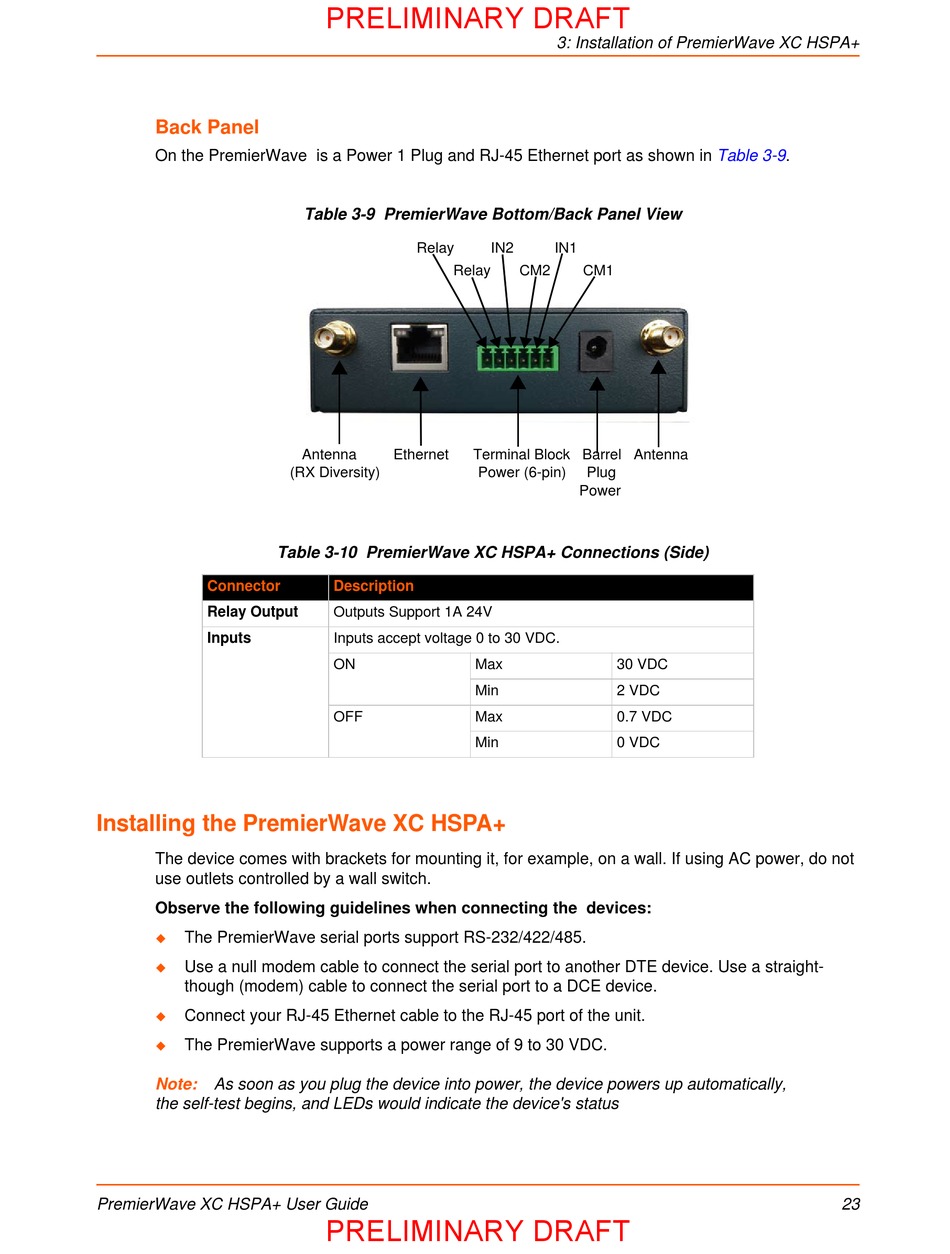

Table 3-9 PremierWave Bottom/Back Panel View
