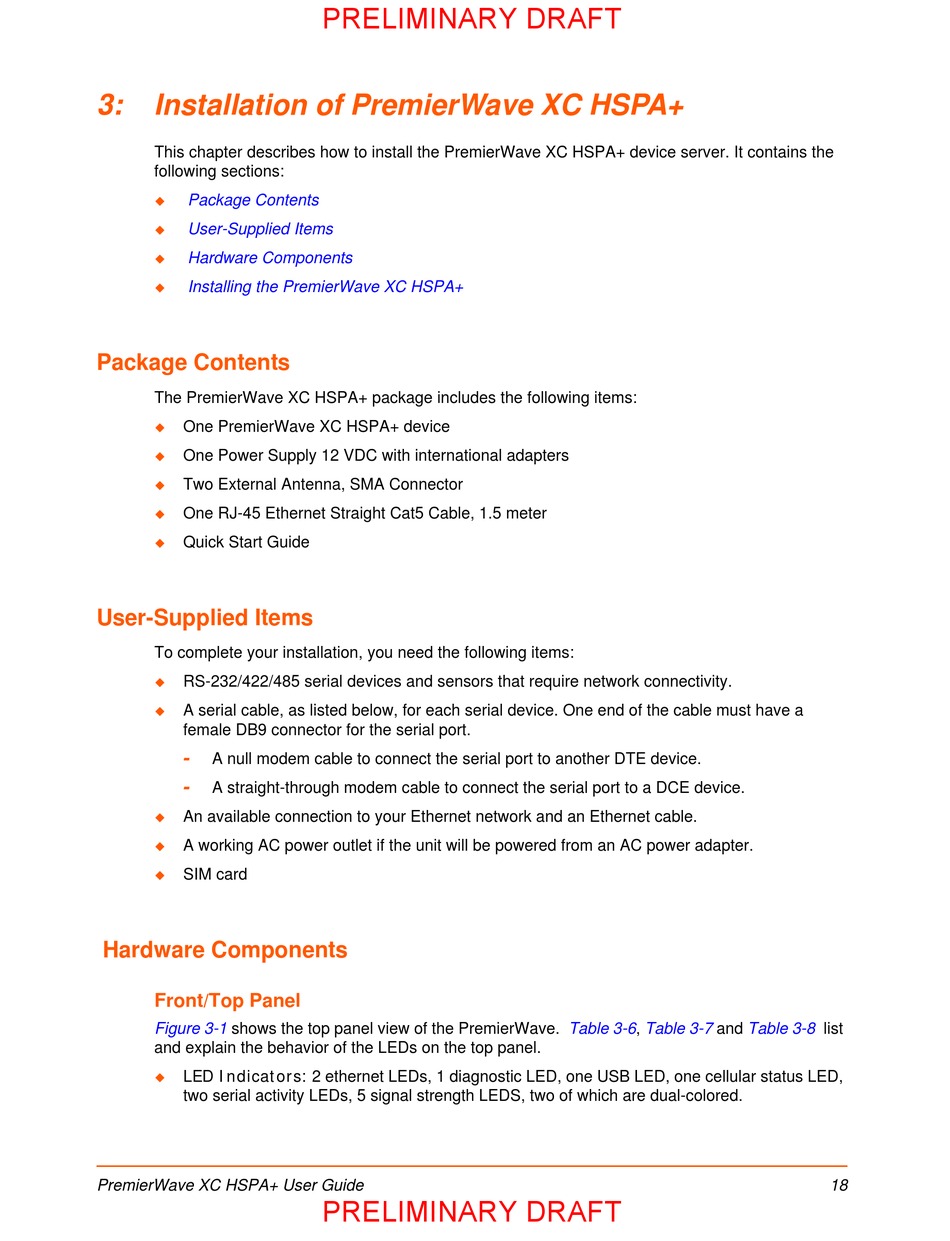

3: Installation of PremierWave XC HSPA+
This chapter describes how to install the PremierWave XC HSPA+ device server. It contains the
following sections:

Package Contents



User-Supplied Items



Hardware Components


Installing the PremierWave XC HSPA+

Package Contents
The PremierWave XC HSPA+ package includes the following items:
One PremierWave XC HSPA+ device

One Power Supply 12 VDC with international adapters

Two External Antenna, SMA Connector

One RJ-45 Ethernet Straight Cat5 Cable, 1.5 meter

Quick Start Guide

User-Supplied Items
To complete your installation, you need the following items:
RS-232/422/485 serial devices and sensors that require network connectivity.

A serial cable, as listed below, for each serial device. One end of the cable must have a

female DB9 connector for the serial port.
-
A null modem cable to connect the serial port to another DTE device.
-
A straight-through modem cable to connect the serial port to a DCE device.
An available connection to your Ethernet network and an Ethernet cable.

A working AC power outlet if the unit will be powered from an AC power adapter.

SIM card

Hardware Components

Front/Top Panel

Figure 3-1 shows the top panel view of the PremierWave.
and explain the behavior of the LEDs on the top panel.
LED Indicators: 2 ethernet LEDs, 1 diagnostic LED, one USB LED, one cellular status LED,

two serial activity LEDs, 5 signal strength LEDS, two of which are dual-colored.
PremierWave XC HSPA+ User Guide
PRELIMINARY DRAFT
PRELIMINARY DRAFT
Table 3-6, Table 3-7 and Table 3-8 list
18
