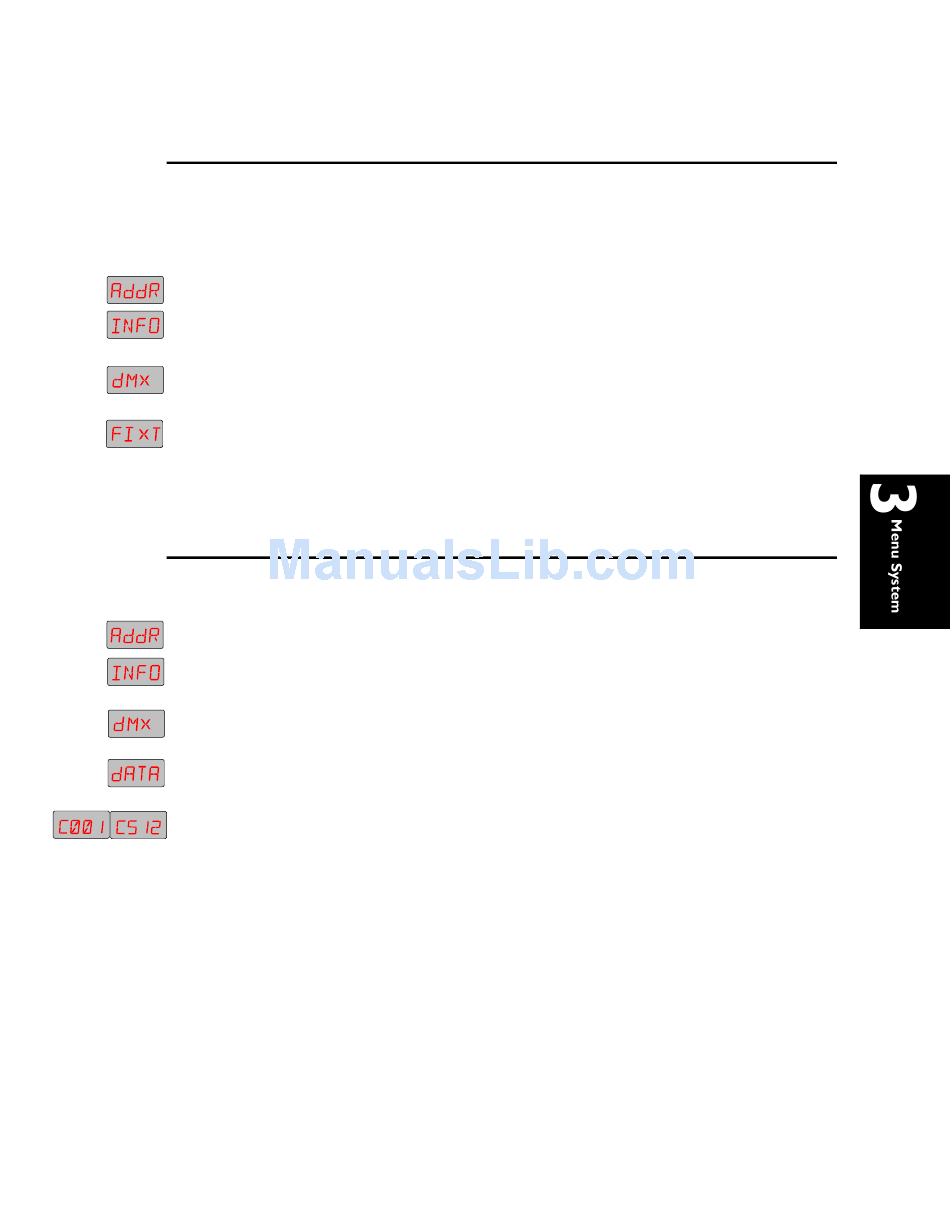

Viewing DMX Errors and Construct Values

DMX errors and individual construct values can be viewed by name. This
feature is provided for advanced users to troubleshoot fixtures. Refer to
"F I X T " on page 3-2 for a complete listing of the fields and descriptions.
To view any item listed above, complete the following procedure:
1. Hold < > until the display changes to A d d R .
MENU
2. Using the up and down buttons, scroll to the I N F O field and press
< >.
ENTER
3. Using the up and down buttons, scroll to the d M X field and press
< >.
ENTER
4. Using the up and down buttons, scroll to the F I X T field and press
< >.
ENTER
5. Using the up and down buttons, scroll to desired field and press
< > to view its value (in decimal form).
ENTER

Viewing DMX Data by Channel Number

Studio Spot provides a built-in DMX viewer. To view DMX data by channel,
complete the following procedure:
1. Hold < > until the display changes to A d d R .
MENU
2. Using the up and down buttons, scroll to the I N F O field and press
< >.
ENTER
3. Using the up and down buttons, scroll to the d M X field and press
< >.
ENTER
4. Using the up and down buttons, scroll to the d A T A field and press
< >.
ENTER
5. Using the up and down buttons, scroll to desired channel (C 0 0 1 -
C 5 1 2 ) and press <
form).
> to view the DMX value (in decimal
ENTER
Chapter 3 Menu System 3-21
