SHOWGUN
/SHOWGUN
2.5
User Manual
©High End Systems, Inc. 2008, All Rights Reserved
Information and specifications in this document are subject to change without notice. High End Systems, Inc.
assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
Trademarks used in this text:
High End Systems, WholeHog, and Lithopatterns are registered trademarks; and SHOWGUN, Internal Effects,
the High End Systems globe logo, Light Burst, the Hog logo are trademarks of High End Systems, Inc. or High
End Systems Europe Ltd. Hog is a registered trademark of Flying Pig Systems. Belden is a registered
trademark of Belden, Inc. FastFit is a trademark and Philips is a registered trademark of Philips Lighting
Company. Krytox is a registered trademark of DuPont.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the
marks and names or their products. High End Systems disclaims any proprietary interest in trademarks and
trade names owned by others.
®
SHOWGUN
User Manual
Version 3.1
March, 2009

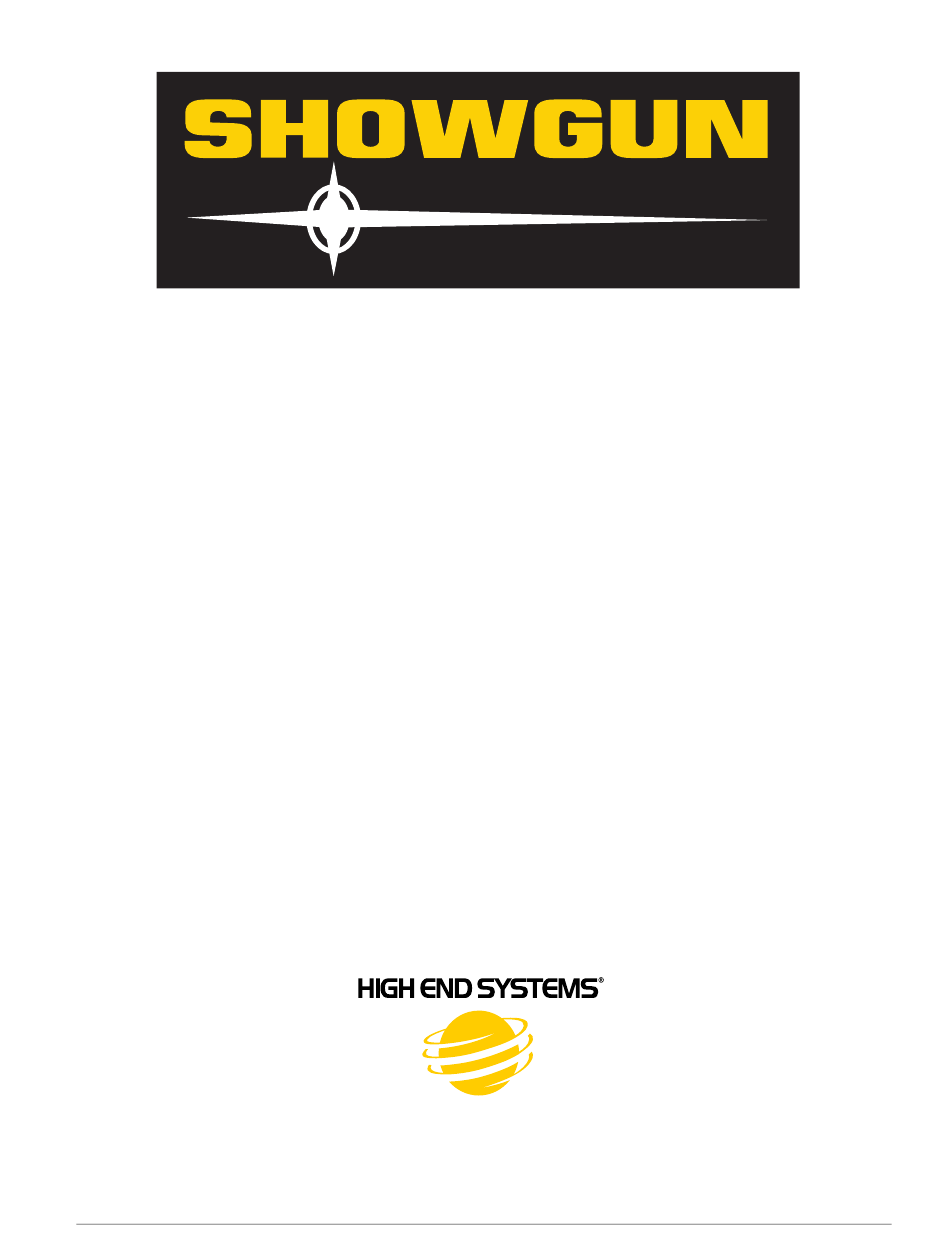

SHOWGUN
®
/SHOWGUN
®
2.5 User Manual
i
