3 Mechanical Installation

3.3 Mechanical Installation
Preparation of the mechanical installation of the frequency converter
must be done carefully to ensure a proper result and to avoid additional
work during installation. Start taking a close look at the mechanical
3

3.3.1 Tools Needed

To perform the mechanical installation the following tools are
needed:
• Drill with 10 or 12 mm drill
• Tape measure
• Wrench with relevant metric sockets (7-17mm)
• Extensions to wrench
• Sheet metal punch for conduits or cable glands in IP 21/Nema
1 and IP 54 units

3.3.2 General Considerations

Wire access
Ensure that proper cable access is present including necessary bending
allowance. As the IP00 enclosure is open to the bottom cables must be
fixed to the back panel of the enclosure where the frequency converter
is mounted, i.e. by using cable clamps.
NB!
All cable lugs/ shoes must mount within the width of
the terminal bus bar.
Space
Ensure proper space above and below the frequency converter to allow
airflow and cable access. In addition space in front of the unit must be
considered to enable opening of the door of the panel.

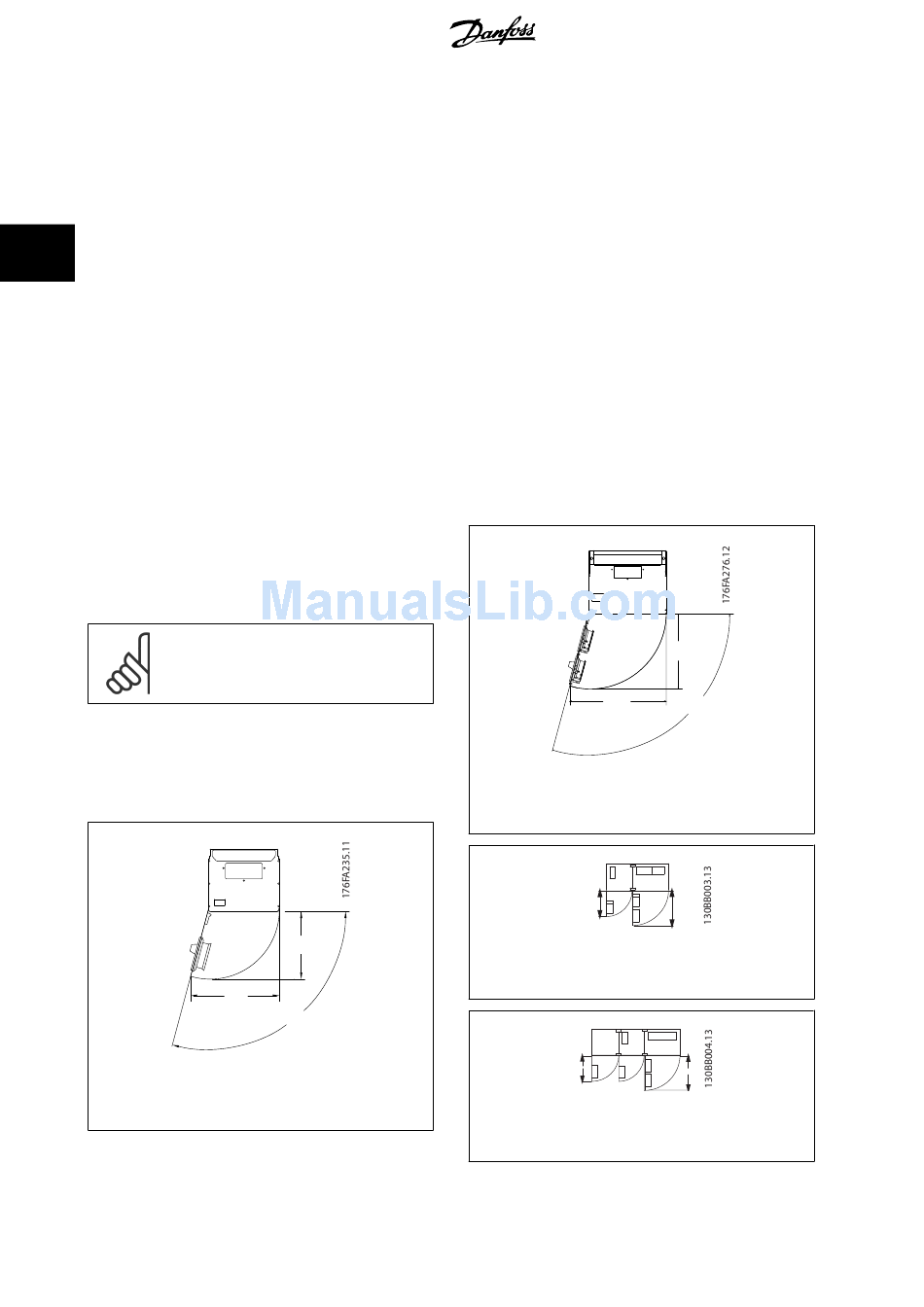

Illustration 3.7: Space in front of IP21/IP54 enclosure
type, frame size D1 and D2 .
24
399
(15.7)
526
(20.7)
<105,0°
MG.11.F3.02 - VLT
VLT HVAC Drive High Power Operating In-
drawings at the end of this instruction to become familiar with the
space demands.
• Lifting bar to lift the unit (rod or tube max. Ø 5 mm (1 inch),
able to lift minimum 400 kg (880 lbs)).
• Crane or other lifting aid to place the frequency converter in
position
• A Torx T50 tool is needed to install the E1 in IP21 and IP54
enclosure types.
748
(29.5)
Illustration 3.8: Space in front of IP21/IP54 enclosure
type, frame size E1.
578
(22.8)
Illustration 3.9: Space in front of IP21/IP54 enclosure
type, frame size F1
2X578
[22.8]
Illustration 3.10: Space in front of IP21/IP54 enclosure
type, frame size F3
® is a registered Danfoss trademark
structions
579
(22.8)
≤105,0°
776
(30.6)
776
[30.6]
