5. How to Install

5.1. Mechanical Installation

5.1.1. Accessory Bag

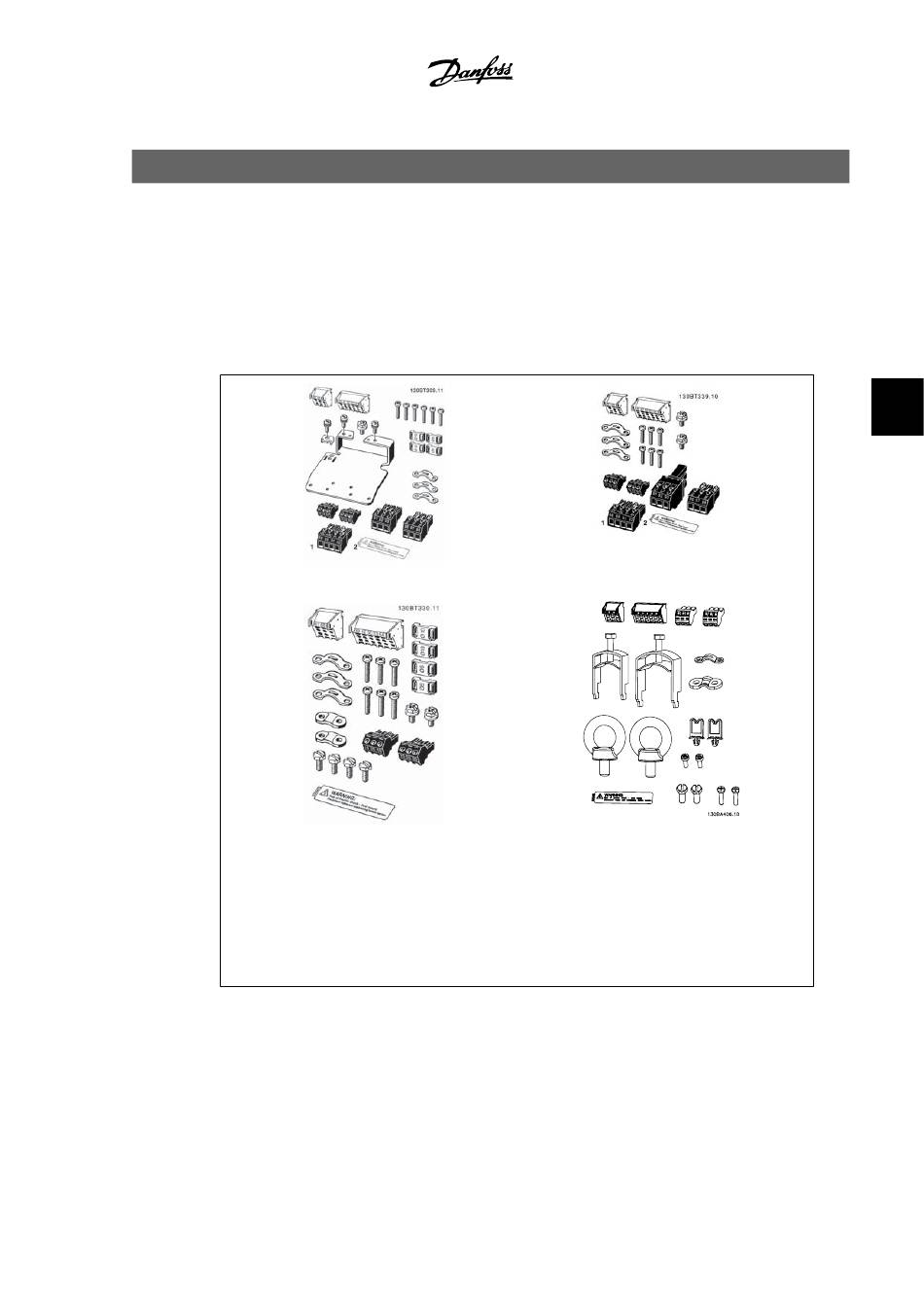

The following parts are included in the FC 100/200/300 Accessory Bag.
1 + 2 only available in units with brake chopper. Only one relay connector is included for FC
101/202/301 units. For DC link connection (Load sharing), the connector 1 can be ordered
separately (Code no 130B1064).
An eight pole connector is included in accessory bag for the FC 101/202/301 without Safe
Stop.
Frame sizes A1, A2 and A3
IP20/Chassis
Frame sizes B1 and B2
IP21/IP55/Type 1/Type 12
MG.20.N2.22 - VLT ® is a registered Danfoss trademark.
5. How to Install
Frame size A5
IP55/Type 12
Frame sizes C1 and C2
IP55/66/Type 1/Type 12
