3 Mechanical Installation
3

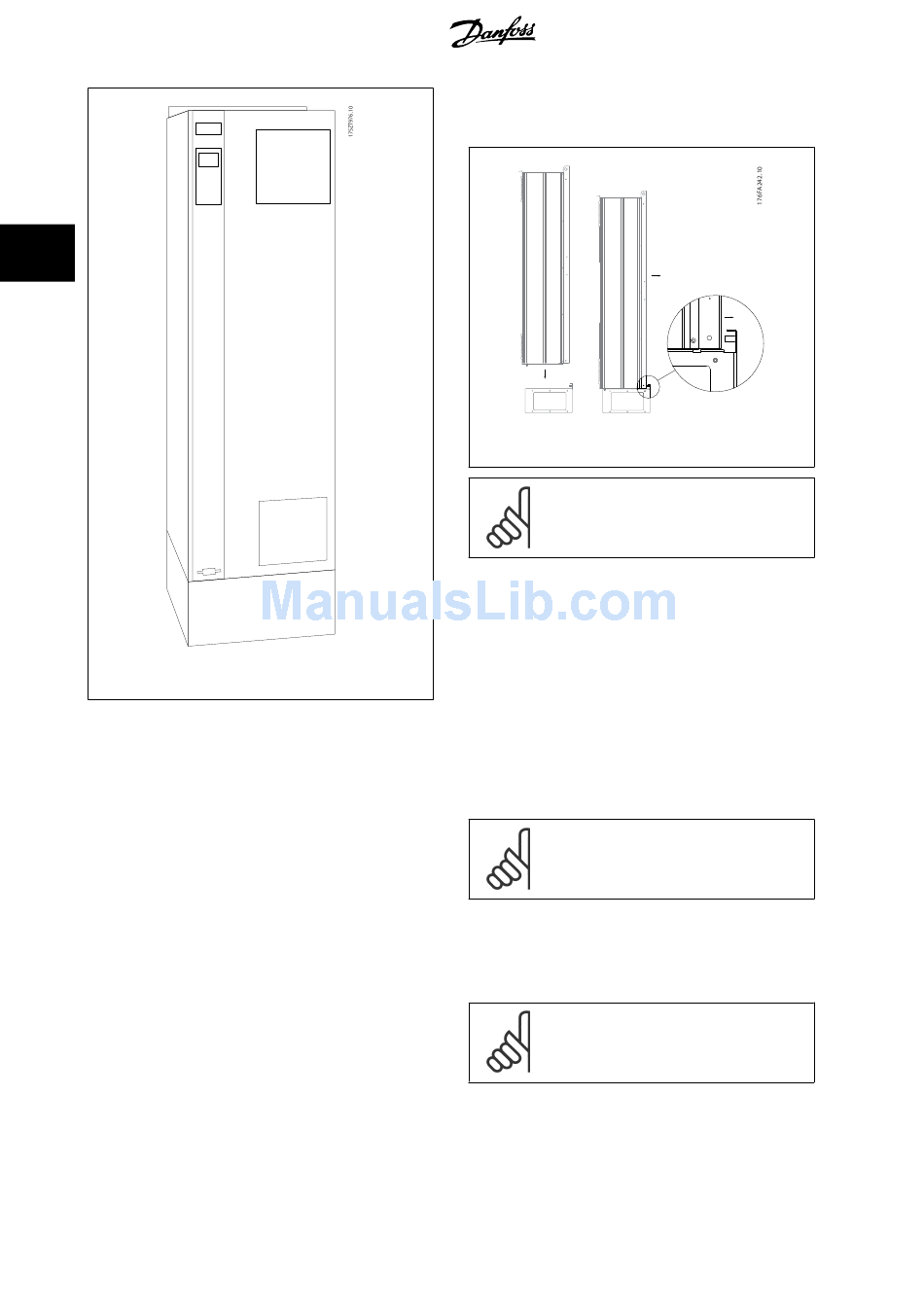

Illustration 3.43: Drive on pedestal

3.4.10 Installation of Mains Shield for Frequency Converters

This section is for the installation of a mains shield for the frequency
converter series with D1, D2 and E1 frames. It is not possible to install
in the IP00/ Chassis versions as these have included as standard a met-
al cover. These shields satisfy VBG-4 requirements.
Ordering numbers:
Frames D1 and D2 : 176F0799

3.4.11 F Frame USB Extension Kit

A USB extension cable can be installed into the door of F frame fre-
quency converters.
Ordering number:
176F1784
46
There is one pedestal that fits both frames D1 and D2. Its ordering
number is 176F1827. The pedestal is standard for E1 frame.
Illustration 3.44: Mounting of drive to pedestal.
Frame E1: 176F1851
MG.11.F3.02 - VLT ® is a registered Danfoss trademark
VLT HVAC Drive High Power Operating In-
NB!
Please see the Pedestal Kit Instruction Manual,
175R5642 , for further information.
NB!
For further information, please see the Instruction
Sheet, 175R5923
NB!
For further information, please see the Instruction
177R0091
Sheet,
structions
