  • Page 1 ® ® 6000 and VLT 2800 Adjustable Frequency Drives BACLink ® Instruction Manual 176U7869 10/02...
  • Page 2 Touching electrical parts may be fatal ñ even after equipment has been disconnected from AC line. To be sure that capacitors have fully discharged, wait 14 minutes after power has been removed before touching any internal component. Copyright © 2002, Danfoss Graham...

  • Page 3: Table Of Contents

    Wiring and terminal tightening specifications ....................7 Electrical wiring ............................... 8 VLT 6000 network connection ......................... 9 VLT 6000 termination switch settings ....................... 9 VLT 6000 network wiring ........................... 9 VLT 6000 BACnet start up ........................10 Changing VLT 6000 parameter data ....................... 10 VLT 2800 network connection ........................

  • Page 4: Introduction

    BACLink accesses the Johnson Controls Metasys ® N2 protocol VLT ® is a Danfoss registered trademark. resident in the Danfoss VLT ® 2800 and VLT ® 6000 Adjustable Frequency Drives. The BACLink port operates with an internal ARCnet operating protocol. Recommended connection is through EIA-485 compatible, half duplex, 9600 baud, shielded twisted-pair wiring.
  • Page 5 Keypad/Display port. Access port for optional keypad. Format button. Normally not used with BACnet. Contact the Danfoss Graham service department for information on its use to Port 2. Preferred port for EIA-485 connection to the VLT drives. clear factory-set programming.

  • Page 6: Mounting Requirements

    VLT 6000 are defined in Table I. 15.3 pounds (7 kg). Total wiring length to connect up to 10 VLT 6000 and VLT 2800 For BACLink portals ordered without an enclosure, mount the unit drives from the BACLink portal should not exceed 3,000 feet in an enclosed panel using the mounting holes provided on the (900m) at 9600 baud rate.

  • Page 7: Electrical Wiring

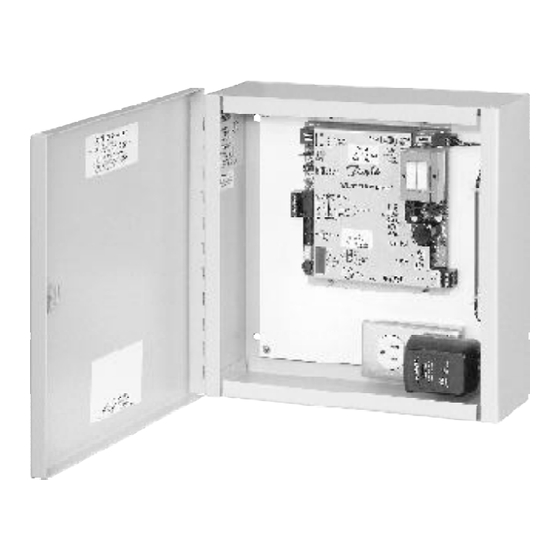

    1. Power must be supplied to the 115 VAC outlet from an external source (see Figure 3). 2. Plug transformer into 115 VAC outlet. 3. Connect transformer cable to 24 VAC connector on BACLink board. Figure 3. BACLink Enclosure Electrical Components VLT is a registered Danfoss trademark...

  • Page 8: Vlt 6000 Network Connection

    Figure 4. VLT 6000 DIP Switch N(-) EIA-485 P(+) EIA-485 Figure 5. VLT 6000 Network Wiring Table II. VLT 6000 DIP Switch Settings SWITCH SETTING Switch 1 Reserved/No function Switches 2 & 3 Used for terminating an EIA-485 interface. When the drive is the first, last, or only device on a network, switches 2 and 3 must be ON.

  • Page 9: Vlt 6000 Bacnet Start Up

    Changing VLT 6000 parameter data The BACLink portal will have factory default settings ready for Use the VLT 6000 keypad to access the Extended Menu key and operation without user adjustment. Parameters 500, 501 and 502 the 500 Group (serial communication) parameters. Enter or must be set as shown in Table III.

  • Page 10: Vlt 2800 Network Connection

    LOGIC OR Quick stop DC brake LOGIC OR LOGIC OR Start LOGIC OR Reversing Select setup LOGIC OR Select speed LOGIC OR N2 Override release time Protocol METASYS N2 The values in default values. VLT is a registered Danfoss trademark...

  • Page 11: Ethernet Network Connection

    Æ BACLink ô Æ BACLink ô Optional factory setting EIA-485 EIA-485 NOTE: EIA-485 (2-wire) Net+ and Net- from Port 2 to drive input terminals 68 (+) and 69 (-) Figure 7. Ethernet Network Connection VLT is a registered Danfoss trademark...

  • Page 12: Set Ip Address Of Portal

    10's digit 1's digit Figure 9. Rotary Address Switches For Ethernet connection without IP, an IP address is not used. Use the rotary address switches to assign the media access control (MAC) address. VLT is a registered Danfoss trademark...

  • Page 13: Arcnet Network Connection

    Figure 13. Port 2 Configuration Jumper Settings Shield Port 1 10's digit 1's digit Net - Net + ARC156 Network Figure 11. ARCnet Network Connection Figure 14. Rotary Address Switches VLT is a registered Danfoss trademark...

  • Page 14: Eia-485 Network Connection

    Figure 16. BACLink DIP Switches NOTE: EIA-485 (2-wire) from Port 2 to drive input terminals 68 (+) and 69 (-) Figure 15. EIA-485 (2-wire) Network Connection EIA-232 EIA-485 Figure 17. Port 2 Configuration Jumper Settings VLT is a registered Danfoss trademark...

  • Page 15: Eia-232 Network Connection

    Switch 2 Off/ On IP Address Defa ult/ Assig ned ARC156/ Other Port 1 Portal Address +0/ +100 Figure 19. BACLink DIP Switches EIA-232 EIA-485 Figure 18. EIA-232 Network Connection Figure 20. Configuration Jumper Settings VLT is a registered Danfoss trademark...

  • Page 16: Power Up

    Power up 3. For VLT 6000, termination DIP switches 2 and 3 should be in the ON position. Termination DIP switches are located on 1. Turn BACLink power switch to OFF. This prevents VLT 6000 power board directly above drive terminals BACLink from power up before proper voltage is verified.

  • Page 17: Appendix: Bacnet Point Mapping Tables For Baclink Portal

    NOTE Binary input point 9 commands two different functions. For VLT 2800, it commands reverse function to change direction of motor rotation. For VLT 6000, it can command the state of Form C relay. VLT is a registered Danfoss trademark...
  • Page 18 Bus feedback. This is the feedback signal provided to the drive parameter 100, the bus reference is the speed command to the via the BACnet bus. The VLT 6000 can regulate two feedback drive. In closed loop operation, bus reference is the drive’s signals provided to the drive.
  • Page 19 Trip point is 100%. term_53_analog_# Voltage value on analog input Terminal 53. term_54_analog_# Voltage value on analog input VLT 6000 Terminal 54 (for VLT 6000 only). only term_60_analog_# Current value on analog input Terminal 60. ° heatsink_temperature_# Drive heatsink temperature.
  • Page 20 (for VLT 6000 only) 0=False 1=True running_at_ref_# VLT 6000 only (for VLT 6000 only) 0=False 1=True sleep_mode_# VLT 6000 only (for VLT 6000 only) NOTE: # symbol represents drive ID number. The values in default values. Appendix VLT is a registered Danfoss trademark...
  • Page 21 (for VLT 6000 only) terminal_17_# 0=Off 1=On VLT 6000 only (for VLT 6000 only) 0=Off 1=On terminal_16_# VLT 6000 only (for VLT 6000 only) NOTE: # symbol represents drive ID number. The values in default values. Appendix VLT is a registered Danfoss trademark...
  • Page 22 Danfoss Graham Division of Danfoss Inc. 8800 West Bradley Road P.O. Box 245041 Milwaukee, Wisconsin 53224-9541 Phone: (414) 355-8800 Fax: (414) 355-6117 Toll free: (800) 621-8806 E-mail: graham@grahamdrives.com http://www.namc.danfoss.com...
