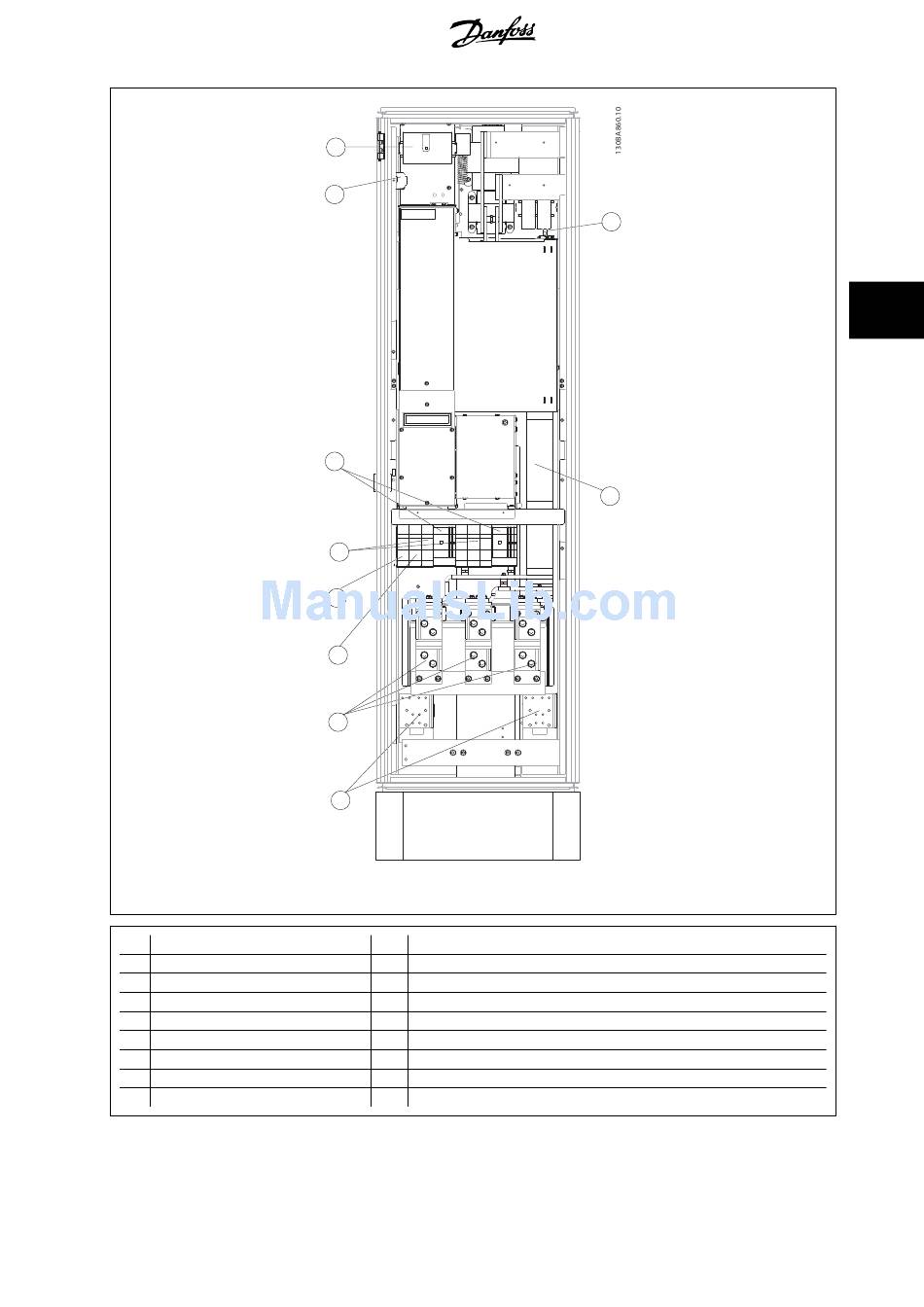

Illustration 4.10: Rectifier Cabinet, frame size F1, F2, F3 and F4
1) 24V DC, 5 A
T1 Output Taps
Temp Switch
106 104 105
2) Manual Motor Starters
3) 30 A Fuse Protected Power Terminals
4) Line
R S T
L1 L2 L3
C J3
FUSE ONNECT
6
1
2
CH22 CH22 CH22 CH22 CH22 CH22
CTI25MB CTI25MB
8
10
3
4
FASTENER TORQUE: M10 19Nm (14 FT -LB)
+DC 89
5
5) Loadsharing
-DC +DC
88 89
6) Control Transformer Fuses (2 or 4 pieces). See fuse tables for part numbers
7) SMPS Fuse. See fuse tables for part numbers
8) Manual Motor Controller fuses (3 or 6 pieces). See fuse tables for part numbers
9) Line Fuses, F1 and F2 frame (3 pieces). See fuse tables for part numbers
10) 30 Amp Fuse Protected Power fuses
MG.11.F3.02 - VLT ® is a registered Danfoss trademark
7
9
FASTENER TORQUE: M10 19Nm (14 FT -LB)
+DC 89
