4.1.21 Access to Control Terminals
All terminals to the control cables are located beneath the LCP. They
are accessed by opening the door of the IP21/ 54 version or removing
the covers of the IP00 version.

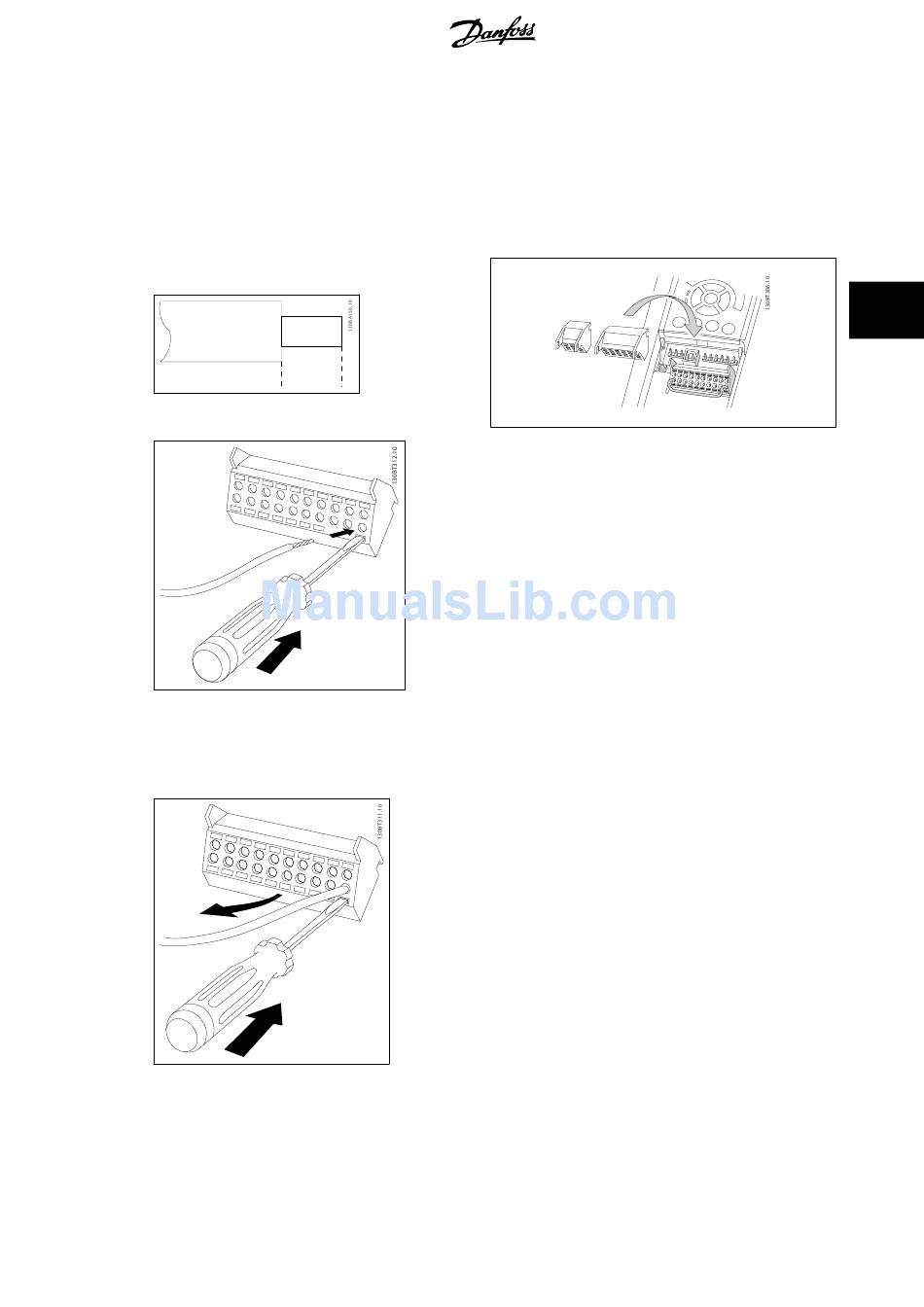

4.1.22 Electrical Installation, Control Terminals

To connect the cable to the terminal:
1. Strip insulation
2. 1)
Insert a screwdriver in the square hole.
3. Insert the cable in
4. Remove the screwdriver. The cable is now mounted in the ter-
minal.
To remove the cable from the terminal:
1. Insert a screw driver 1) in the square hole.
2. Pull out
1) Max. 0.4 x 2.5mm
by about 9-10mm
9 - 10 mm
(0.37 in)
the adjacent circular hole.
the cable.
