Mechanical Installation

3 Mechanical Installation

3.1 Unpacking

3.1.1 Items Supplied
Items supplied may vary according to product configu-
ration.
•
Make sure the items supplied and the information
on the nameplate correspond to the order confir-
mation.
•
Check the packaging and the frequency converter
visually for damage caused by inappropriate
handling during shipment. File any claim for
damage with the carrier. Retain damaged parts
for clarification.
VLT R
Automation Drive
www.danfoss.com
1
T/C: FC-302PK37T2E20H1BGXXXXSXXXXA6BKC4XXXD0
2
P/N: 131X3537 S/N: 010122G430
4
0.37kW/ 0.50HP
5
IN: 3x200-240V 50/60Hz 2.2A
6
OUT: 3x0-Vin 0-1000Hz 2.4A
7
o
CHASSIS/ IP20 Tamb.50 C/122 F
* 1 3 1 X 3 5 3 7 0 1 0 1 2 2 G 4 3 0 *
Listed 76X1 E134261 Ind. Contr. Eq.
CAUTION:
See manual for special condition/mains fuse
10
voir manual de conditions speclales/fusibles
WARNING:
Stored charge, wait 4 min.
`
Charge residuelle, attendez 4 min.
1 Type code
2 Order number
3 Serial number
4 Power rating
Input voltage, frequency and current (at low/high
5
voltages)
Output voltage, frequency and current (at low/high
6
voltages)
7 Enclosure type and IP protection rating
8 Maximum ambient temperature
9 Certifications
10 Discharge time (Warning)

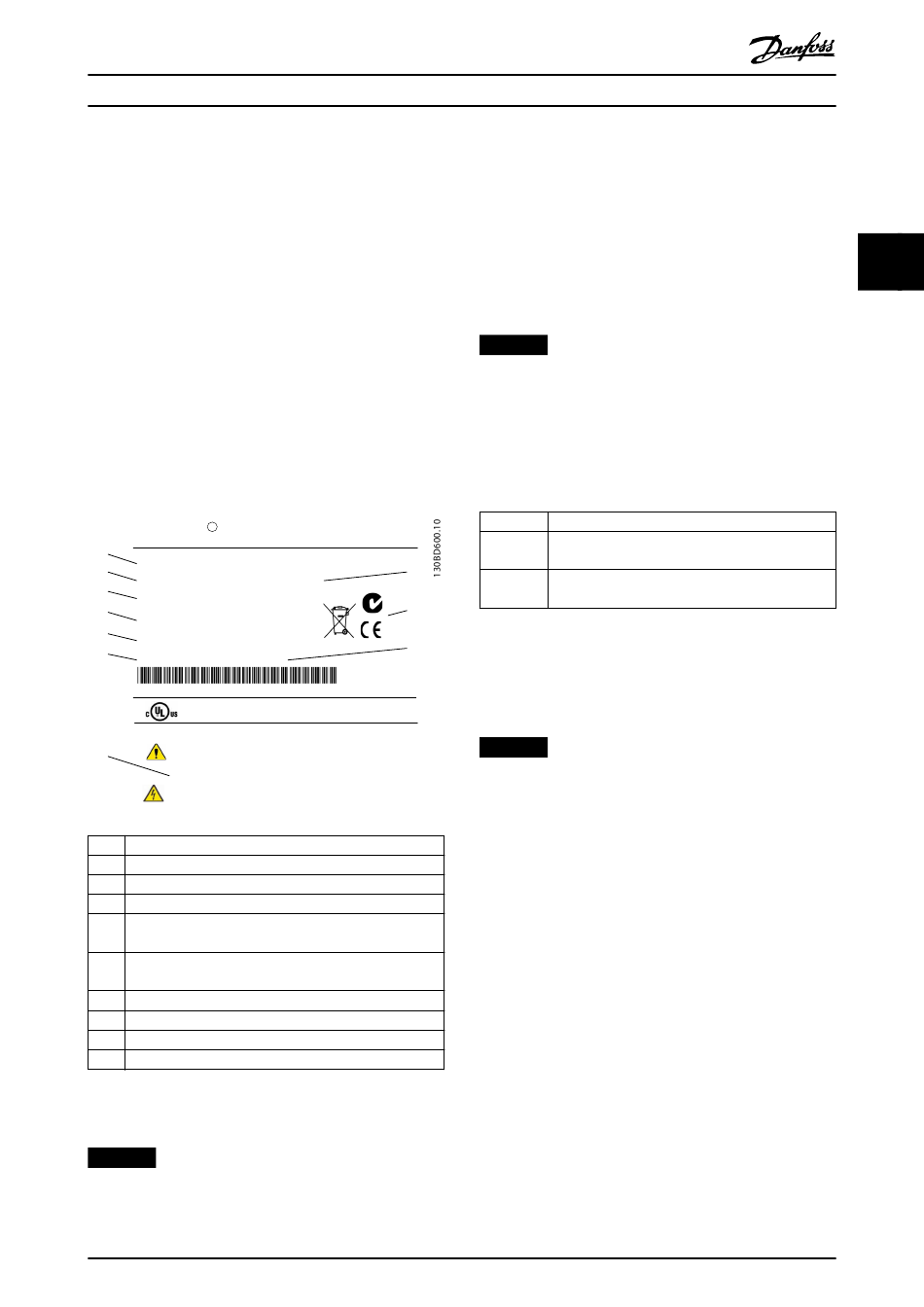

Illustration 3.1 Product Nameplate (Example)
NOTICE
Do not remove the nameplate from the frequency
converter (loss of warranty).
MG34U402
Operating Instructions
3
9
8
o
MADE IN DENMARK
`
Danfoss A/S © 06/2015 All rights reserved.
3.1.2 Storage
Ensure that the requirements for storage are fulfilled. Refer
to chapter 8.4 Ambient Conditions for further details.

3.2 Installation Environments

NOTICE
In environments with airborne liquids, particles, or
corrosive gases, ensure that the IP/type rating of the
equipment matches the installation environment. Failure
to meet requirements for ambient conditions can reduce
the lifetime of the frequency converter. Ensure that
requirements for air humidity, temperature, and altitude
are met.
Voltage [V] Altitude restrictions
380–500 At altitudes above 3000 m, contact Danfoss
regarding PELV
525–690 At altitudes above 2000 m, contact Danfoss
regarding PELV
Table 3.1 Installation in High Altitudes
For detailed ambient conditions specifications, refer to
chapter 8.4 Ambient Conditions.

3.3 Mounting

NOTICE
Improper mounting can result in overheating and
reduced performance.
Cooling
•
Ensure that top and bottom clearance for air
cooling is provided. Clearance requirement: 225
mm (9 in).
•
Consider derating for temperatures starting
between 45 °C (113 °F) and 50 °C (122 °F) and
elevation 1000 m (3300 ft) above sea level. See
the frequency converter design guide for detailed
information.
The frequency converter utilises a back-channel cooling
concept that removes heat sink cooling air. The heat sink
cooling air carries approximately 90% of the heat out of
the back channel of the frequency converter. Redirect the
back-channel air from the panel or room by using:
•
Duct cooling. A back-channel cooling kit is
available to direct the heat sink cooling air out of
the panel when an IP20/chassis frequency
converter is installed in a Rittal enclosure. Use of
3 3
