VLT HVAC Drive High Power Operating In-
structions
1
2
3
4
5

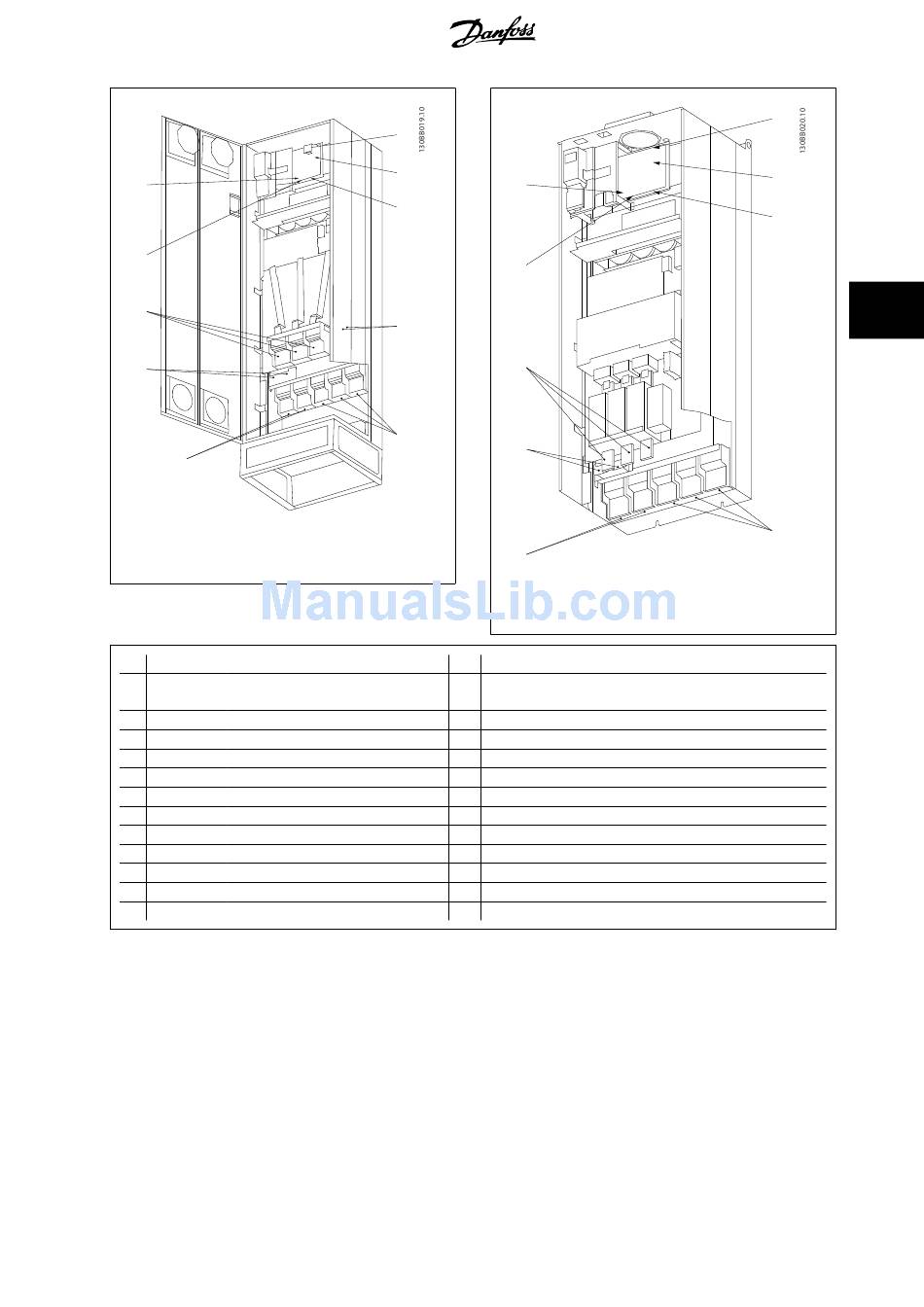

Illustration 4.7: Compact IP 21 (NEMA 1) and IP 54
(NEMA 12) frame size E1
1) AUX Relay
01 02 03
04 05 06
2) Temp Switch
106 104 105
3) Line
R S T
91 92 93
L1 L2 L3
4) Brake
-R +R
81 82
6
7
1
8
2
9
3
10
4
5
Illustration 4.8: Compact IP 00 (Chassis) with disconnect,
fuse and RFI filter, frame size E2
5) Load sharing
-DC
88
6) SMPS Fuse (see fuse tables for part number)
7) Fan Fuse (see fuse tables for part number)
8) AUX Fan
100
L1
9) Mains ground
10) Motor
U
96
T1
