Mechanical Installation

3 Mechanical Installation
3 3

3.1 Unpacking

3.1.1 Items Supplied
Items supplied may vary according to product configu-
ration.
•
Make sure the items supplied and the information
on the nameplate correspond to the order confir-
mation.
•
Check the packaging and the adjustable
frequency drive visually for damage caused by
inappropriate handling during shipment. File any
claim for damage with the carrier. Retain
damaged parts for clarification.
1
T/C: FC-302PK37T2E20H1BGXXXXSXXXXA6BKC4XXXD0
2
P/N: 131X3537
4
0.37kW/ 0.50HP
5
IN: 3x200-240V 50/60Hz 2.2A
6
OUT: 3x0-Vin 0-1000Hz 2.4A
7
CHASSIS/ IP20 Tamb.50 C/122 F
* 1 3 1 X 3 5 3 7 0 1 0 1 2 2 G 4 3 0 *
10
1 Type code
2 Order number
3 Serial number
4 Power rating
Input voltage, frequency and current (at low/high
5
voltages)
Output voltage, frequency and current (at low/high
6
voltages)
7 Enclosure type and IP protection rating
8 Maximum ambient temperature
9 Certifications
10 Discharge time (Warning)

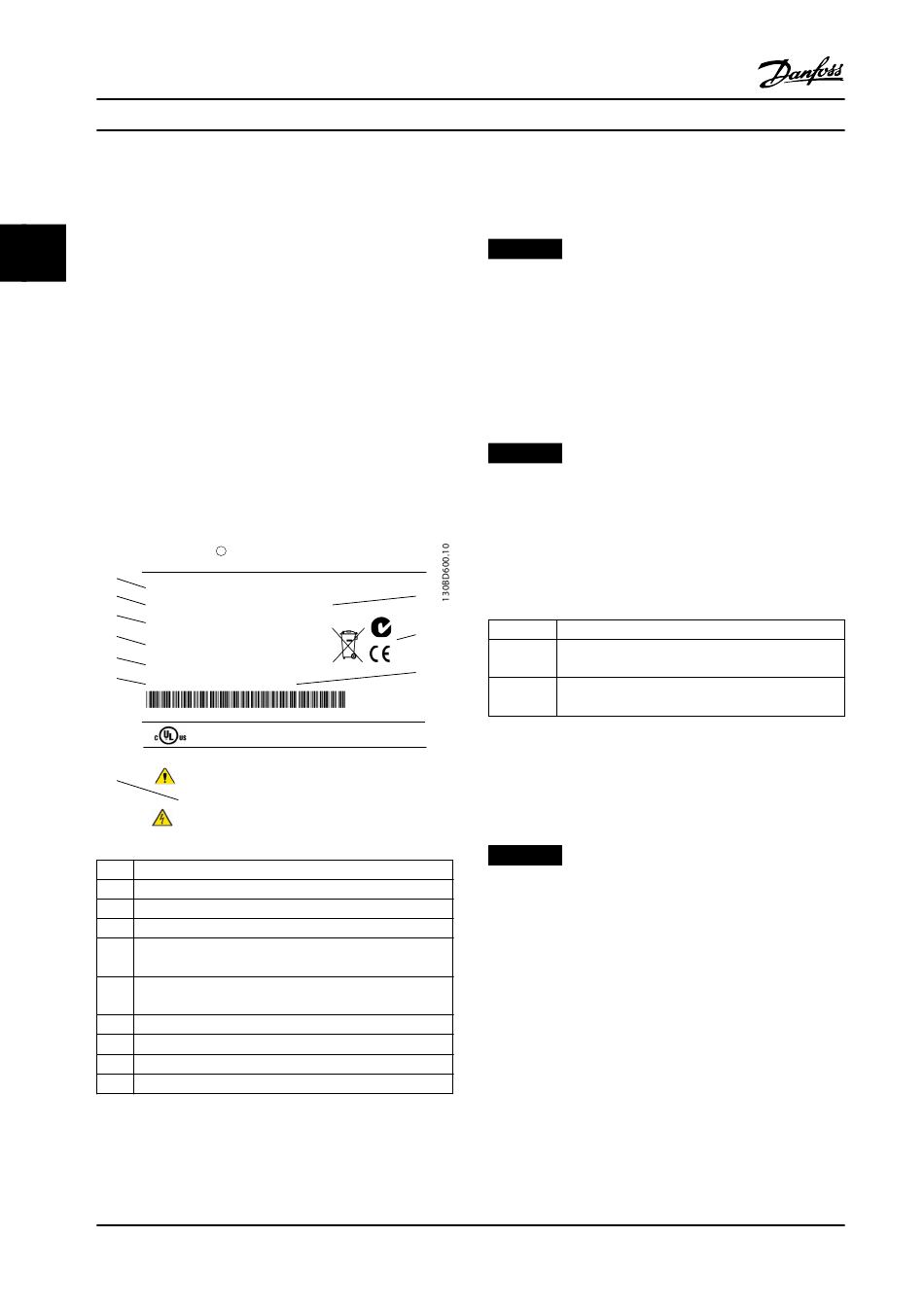

Figure 3.1 Product Nameplate (Example)
10
VLT R
Automation Drive
www.danfoss.com
S/N: 010122G430
o o
Listed 76X1 E134261 Ind. Contr. Eq.
CAUTION:
See manual for special condition/mains fuse
`
voir manual de conditions speclales/fusibles
WARNING:
Stored charge, wait 4 min.
`
Charge residuelle, attendez 4 min.
Danfoss A/S © 06/2015 All rights reserved.
®
VLT AutomationDrive FC 302
NOTICE!
Do not remove the nameplate from the adjustable
frequency drive (loss of warranty).
3.1.2 Storage
Ensure that the requirements for storage are fulfilled. Refer
to chapter 8.4 Ambient Conditions for further details.

3.2 Installation Environments

NOTICE!
In environments with airborne liquids, particles, or
corrosive gases, ensure that the IP/type rating of the
equipment matches the installation environment. Failure
to meet requirements for ambient conditions can reduce
the lifetime of the adjustable frequency drive. Ensure
that requirements for air humidity, temperature, and
altitude are met.
3
Voltage [V] Altitude restrictions
9
380–500
8
525–690
MADE IN DENMARK
Table 3.1 Installation in High Altitudes
For detailed ambient conditions specifications, refer to
chapter 8.4 Ambient Conditions.

3.3 Mounting

NOTICE!
Improper mounting can result in overheating and
reduced performance.
Cooling
•
•
The adjustable frequency drive utilizes a backchannel
cooling concept that removes heatsink cooling air. The
heatsink cooling air carries approximately 90% of the heat
out of the backchannel of the adjustable frequency drive.
At altitudes above 3000 m (10,000 ft), contact
Danfoss regarding PELV
At altitudes above 2000 m (6,600 ft), contact
Danfoss regarding PELV
Ensure that top and bottom clearance for air
cooling is provided. Clearance requirement: 225
mm (9 in).
Consider derating for temperatures starting
between 45 °C (113 °F) and 50 °C (122 °F) and
elevation 1000 m (3,300 ft) above sea level. See
the adjustable frequency drive design guide for
detailed information.
