Mechanical Installation

Lifting

Check the weight of unit to determine the safety of
the lifting method. Ensure that the lifting device is
suitable for the task. If necessary, plan for a hoist,
crane or forklift with appropriate rating to move the
units.
Hoist or Overhead Lift
• Use solid steel spreader bar for lifting. Slide
spreader bar through two (2) lifting rings on
drive. Lifting rings are 0.75 inches (19 mm)
in diameter (Figure 3-3).
• Connect spreader bar to a hoist or other
lifting device.
• Lift unit slightly using lifting rings with weight
distributed evenly.
• Remove skid and other supports from under
drive.
• For floor mounting applications, a floor
mounting kit is available from Danfoss
specifically designed to anchor drive to floor.

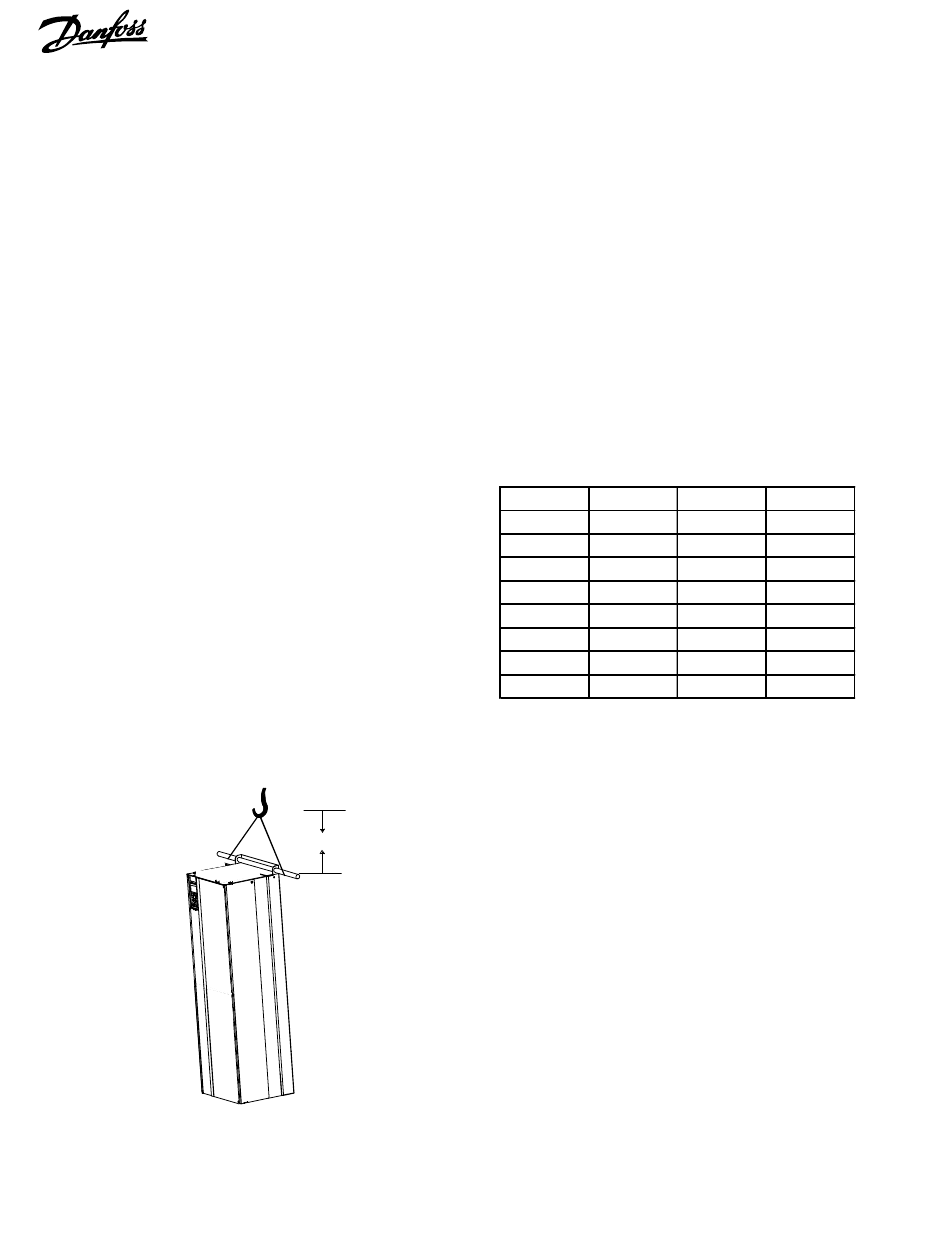

Figure 3-3. Proper Lifting Method
14
Forklift
Shipping Weights
28 in. min
• Only a competent lift operator with additional
support personnel should attempt moving
unit.
• Carefully position forklift and ensure stability
prior to lift.
NOTE
W
EIGHTS LISTED BELOW ARE APPROXIMATE FOR BASE UNITS
O
PTIONS CAN ADD OR REDUCE WEIGHT OF UNIT
.
ARE IN LBS
Table 3-2. Approximate Shipping Weights
Tier 1
Frame
A2-A3 30
A5 35
B1 65
B2 70
C1 100
C2 130
D1 220
D2 320
.
. W
EIGHTS LISTED
Tier 2 Tier 3
35 55
55 80
85 110
105 180
145 215
190 285
420 585
575 950
