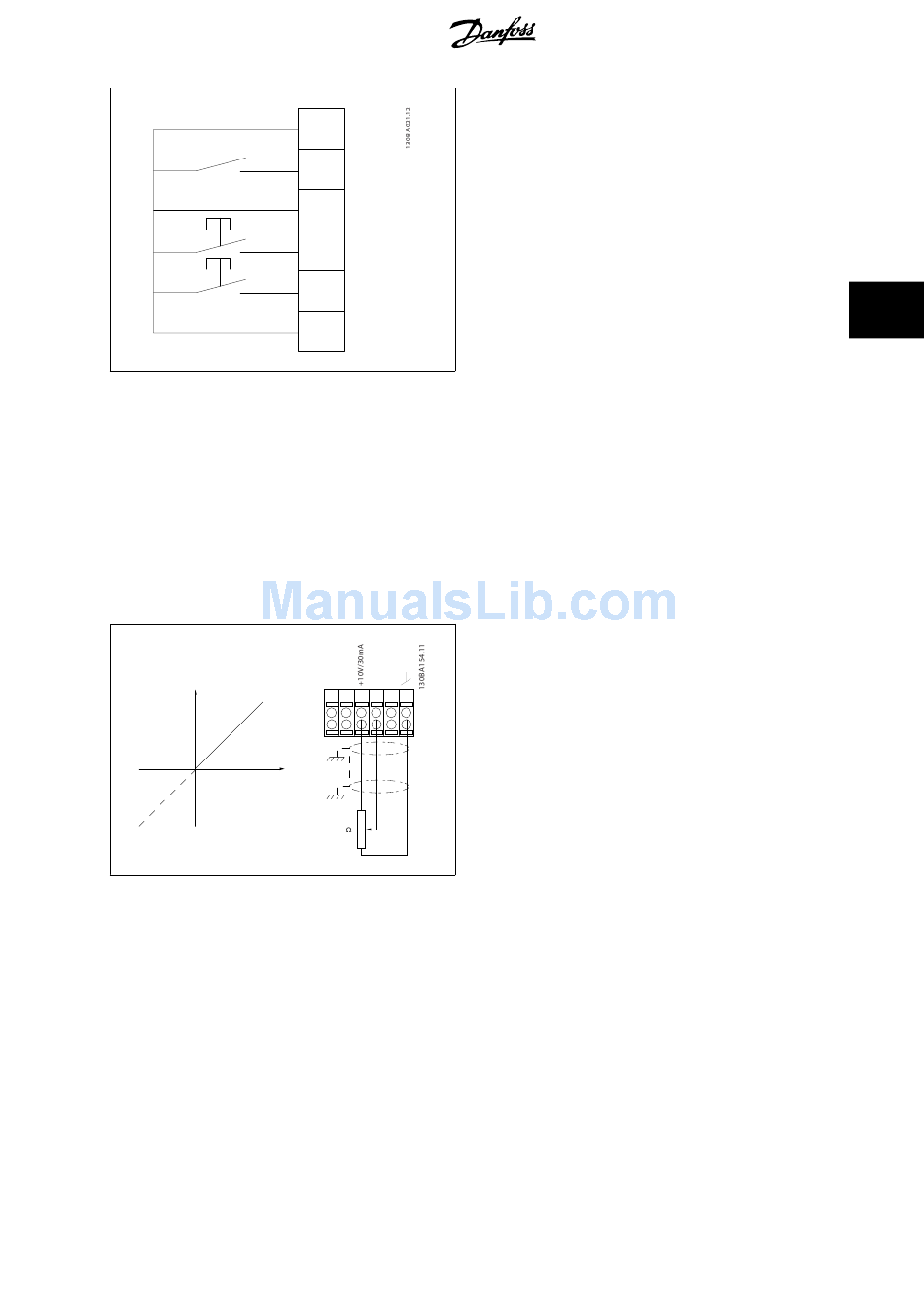

4.2.4 Potentiometer Reference
Voltage reference via a potentiometer
Analog input 53 (default)
Reference Source 1 = [1]
Terminal 53, Low Voltage = 0V
Terminal 53, High Voltage = 10V
Terminal 53, Low Ref./Feedback = 0 RPM
Terminal 53, High Ref./Feedback = 1500 RPM
Switch S201 = OFF (U)
Speed RPM
P 6-15
Ref. voltage
P 6-11 10V
12 +24V
18 Par. 5-10
27 Par. 5-12
29 Par. 5-13
32 Par. 5-14
37
39 42 50 53 54 55
1 k
