Hard Drive LEDs

"Component Service Task Reference" on page 23
■
"Returning the Server to Operation"
■

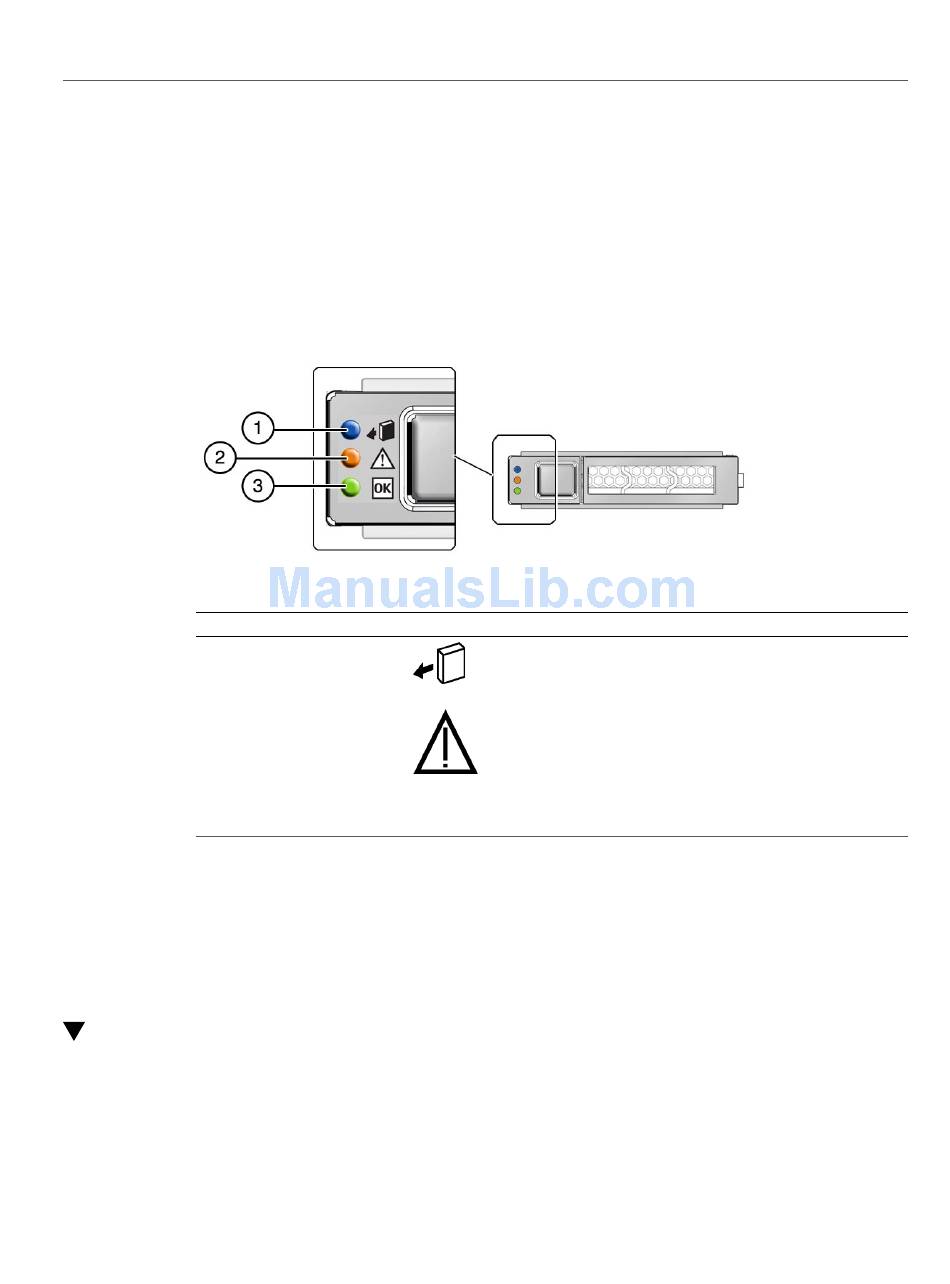

Hard Drive LEDs
No.
1
2
3
Related Information
"Determine Which Hard Drive Is Faulty" on page 82
■
"Remove a Hard Drive" on page 83
■

Determine Which Hard Drive Is Faulty

The following LEDs are lit when a hard drive fault is detected:
System Service Required LEDs on the front panel and rear I/O module
■
Service Required LED on the faulty drive
■
82 SPARC T5-8 Server Service Manual • November 2015
LED Icon
Ready to Remove
(blue)
Service Required
(amber)
Okay OK
Description
Indicates that a drive can be removed during a hot-service
operation.
Indicates the drive's availability for use.
■ On – Read or write activity is in progress.
■ Off – Drive is idle and available for use.
Indicates normal operation. Blinking indicates that the drive is
in use.
