PCIe Carrier LEDs and Controls

PCIe cards evenly across the available root complexes, leaving slots under root complexes 300
and 4c0 as the last to be populated.
Note -
Related Information
"Root Complex Connections (Four Processor Modules)" on page 150
■
"Root Complex Connections (Two Processor Modules)" on page 151
■
"Server Upgrade Process" on page 59
■

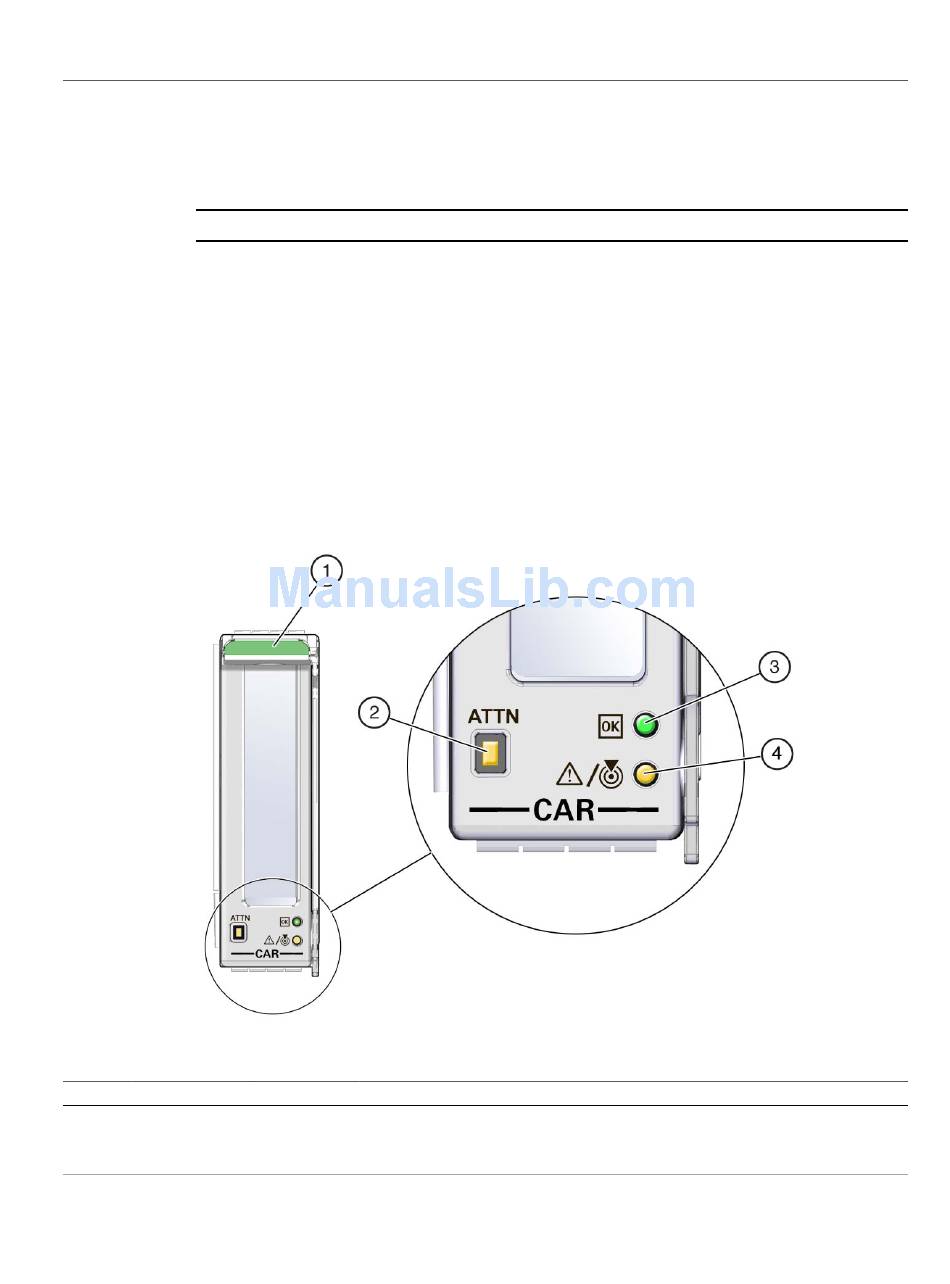

PCIe Carrier LEDs and Controls
No. LED
1
2 Attention
Required button
154 SPARC T5-8 Server Service Manual • November 2015
If you are upgrading the server, you are done with the process.
Icon Description
CAR PCIe carrier.
ATTN Indicates an operational fault. You can also press this button to alert the server to a newly
installed PCIe card.
