4.

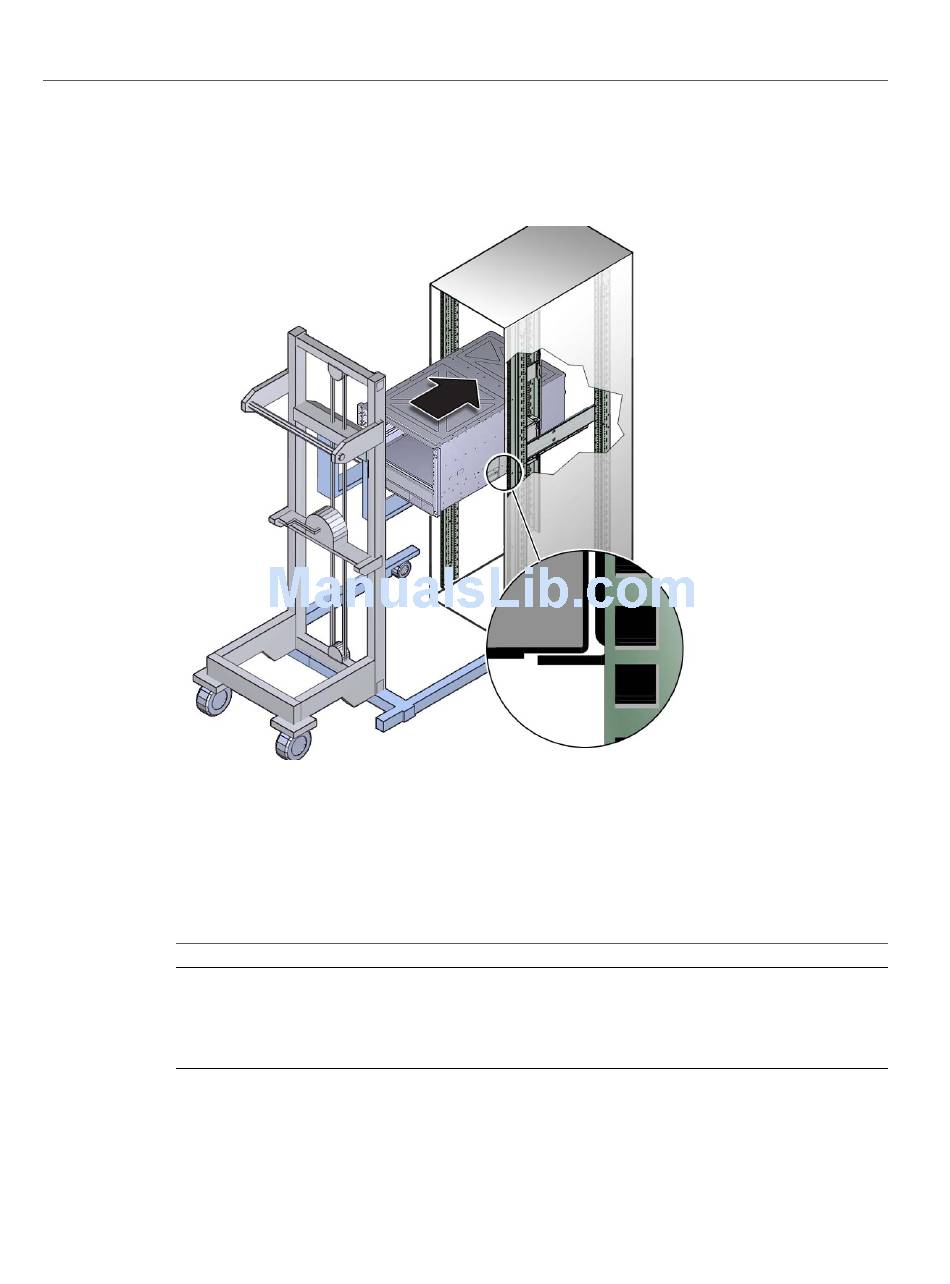

Place the chassis on a mechanical lift.
5.
Install the chassis into the rack, and secure the chassis with the four screws that
were removed.
At the rear of the server, install these components.
6.
Component
Rear I/O module
PCIe carriers
Fan modules
Cables
7.
At the front of the server, install these components.
Install the Rear Chassis Subassembly
Link
"Install the Rear I/O Module" on page 176
"Install a Card Carrier" on page 168
"Install a Fan Module" on page 145
According to their lables
Servicing the Rear Chassis Subassembly
187
